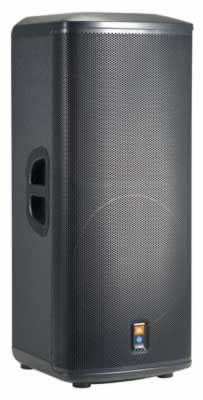

JBL PRX535 Powered 15 3-way Full Range Speaker, New

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

jbl prx535    new
For every musician, DJ, venue and audio/video provider, high-performance self-powered speaker systems offer a degree of simplicity unmatched by traditional amp and speaker PA systems. Not only are all components matched right out of the box, but they are optimized for maximum reliability. By considering every element in each system and its contribution to the final application PRX500 redefines high performance portable PA. Through design, PRX500 delivers the power, performance and simplicity you need in a package that's been designed to move.

The PRX535 offers a high level ofperformance. By design, a 3-wayconfiguration, it is the most accurate in thePRX500 Series. With a horn loaded midrange,pattern control is maintained to a much lowerfrequency resulting in exceptional clarity anduniform sonic projection over the definedcoverage area. Ideally suited to applicationswhere the program material, live or prerecordedhas many subtle nuances that iscritical to the performance. As with all thefull-range PRX500 Series systems two EQselections can be used to optimize the systemfor the program material and/or environment.The input section also accommodates eitherLine or Mic/Instrument level inputs.The PRX535 is a self-powered, lightweight3-way loudspeaker system capable ofdelivering a very high level of performance,both in SPL and sonic accuracy. The PRX535is comprised of a 380 mm (15 in) 265FDifferential Drive woofer, a 165 mm (6.5 in)195H horn-loaded 90 by 50 mid-range anda 2408H 37.5 mm (1.5 in) annular polymerdiaphragm, neodymium compression drivermounted to a 90 by 50 horn, all driven bya multi-channel Crown International Class-Ddigital power amplifier. A propriety DSP chipis at the core of a fully featured input section,providing user selectable system EQ,protection, input sensitivity selection, crossoverfunctionality, dynamic limiting anddiscrete component optimization.The enclosure is constructed of qualityplywood and coated in JBL's ruggedDuraFlex' finish. Durable polypropyleneend-caps add extra protection for the cabinet.An integrated pole mount on the bottom endcapenables easy deployment. The CNCmachinedsteel grille wraps around the sidesof the enclosure so there are no protrudinglips on the front of the box to createacoustical interference. The grille is also linedwith an acoustically transparent foam to provide additional driver protection.The amplifier input panel offers XLR or inch jack compatibility and a sensitivity switchprovides extra flexibility, making it possible to connect literally any sound source withoutusing a mixer. Signal present and overload lights indicate the system status and assist insetting the optimum level, via the level control knob.FEATURES Differential Drive woofer Horn loaded mid range for sonic accuracy and enhanced pattern control 1.5" annual polymer diaphragm compression driver Class-D, Crown digital amplifier: lightweight, compact, multi channel, heritage DSP input section with crossover, dynamic limiting, component optimization, selectable system EQ Professional XLR line and " Mic/Instrument inputs, with loop through Illuminated logo for clear Power-On status Integrated pole mount socket DuraFlex' coated plywood construction Polypropylene end-caps enhance durability Wrap around heavy duty steel grille provides protection without obstructing performance. Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort

Additional Information

UPCN/A
SKUPRX535 NEW
ManufacturerJBL
Product ConditionNew - On Clearance
ReturnableNo
