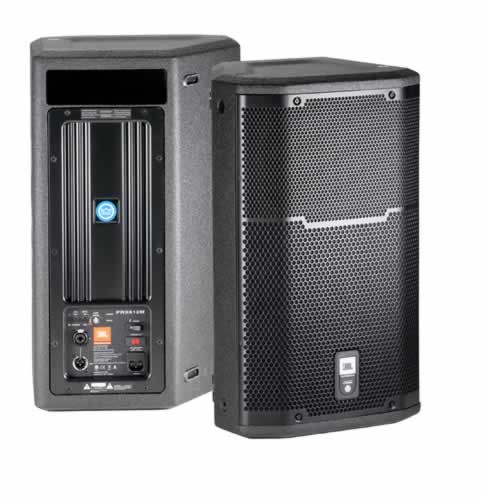

PRX612M is the most compact and versatile speaker in the PRX600 Series. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA.
FEATURES:• Maximum SPL 134db peak
• Dual purpose enclosure for both front-of house and floor monitor applications
• Eight M10 fly points for horizontal or vertical suspension. One M10 pull-back point
• Optimized EQ for monitor or front-of-house applications
• 305mm (12 in) Differential Drive dual voice-coil and magnetic gap, neodymium woofer
• 37.5mm (1.5 in) annular polymer diaphragm, neodymium, compression driver
• 1000 Watt (Dual 500 watt) Class-D, Crown amplifier
• DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
• Professional XLR line and " Mic/Instrument inputs, with loop through
• Dual-angle pole mount socket
SPECIFICATIONS:• System Type : Self-powered 12",
two-way, bass-reflex
• Maximum SPL Output : Full Range: 134 dB peak
Monitor: 133 dB peak
• Frequency Range (-10 dB) : Full Range: 50 Hz - 19.5 kHz
Monitor: 51 Hz - 19.5 kHz
• Frequency Response (3 dB) : Full Range: 60 Hz - 17.5 kHz
Monitor: 61 Hz - 18.5 kHz
• Coverage Pattern : 90 x 50 nominal
• Amp Design : Crown Class D
• Power Rating : 1000 W ( 2 x 500 )
• Dimension (H x W x D): : 592 mm x 353 mm x 340 mm ( 23.3 in x 13.9 in x 13.4 in )
• Net Weight : 15.6 kg ( 34.5 lb )
