This speaker is ideally suited to applications where the program material exhibits subtlety and nuance. Perfectly capable of reproducing high fidelity full range sound without a subwoofer, when coupled with the extended low frequencies of the PRX718XLF, complete control over the entire audio spectrum is attained.
As with all the full-range PRX700 Series systems, two EQ selections can be used to optimize the system for the program material and/or environment. The input section also accommodates either Line or Mic/Instrument level inputs.

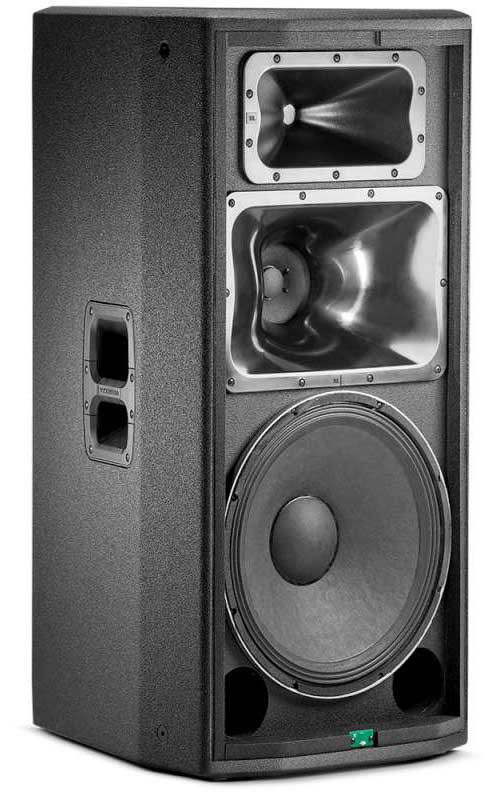

The PRX735 is a self-powered, lightweight three-way loudspeaker system capable of delivering a very high level of performance over a wide bandwidth. The PRX735 is comprised of one 15 in 275G Differential Drive woofer, a 165 mm (6.5 in) 196H horn-loaded mid-range and a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90 by 50 horn, all driven by a 1500 watt Audio Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL's tour proven DuraFlex' finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.

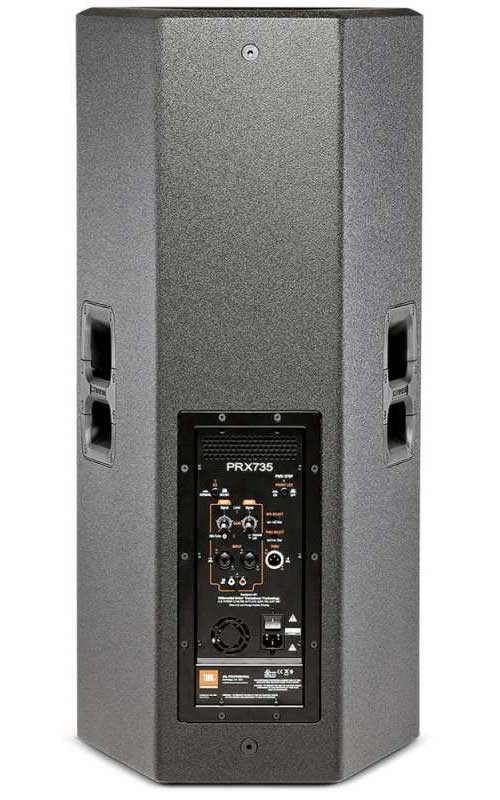

The amplifier input panel offers XLR or inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level via the level control knob.
• 136 dB peak SPL
• 15" Differential Drive low-frequency driver for low-distortion
and higher SPL
• 165 mm (6.5 in) horn loaded midrange transducer
• 1.5" diameter next generation JBL neodymium compression driver
• JBL designed waveguide for accurate coverage
• Efficient Class-D amplifier technology
• Normal and Boost user selectable EQ presets
• DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
• Line level and direct microphone input capability
• Professional XLR-1/4" combination inputs, RCA inputs,
and XLR loop-through
• Multiple injection molded handles with backing cup for easy transport • Integrated M10 suspension points for easy setup
• Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL's tour proven DuraFlex'finish.
• Cloth backed, dent-resistant 16 gauge steel grilles
• Power Rating : 1500 W
• Frequency Range (-10 dB) : Normal: 35 Hz - 20 kHz; Boost: 34 Hz - 20 kHz
• Frequency Response (3 dB) : Normal: 42 Hz - 20 kHz; Boost: 39 Hz - 20 kHz
• Coverage Pattern : 90 x 50 nominal
• Directivity Index (DI) : 10.5 dB
• Directivity Factor (Q) : 11.2
• Crossover Frequency : 480 Hz, 2.0 kHz
• Maximum SPL : Normal: 136dB; Boost: 136dB
• Signal indicators : Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting. Signal: Green LED indicates signal present. Power/Standby : Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.
• Dynamic Control (Input) : dbx Type IV' limiter circuit
• Input Impedance : 20K Ohms (balanced), 10K Ohms (unbalanced) • LF Driver : 1 x JBL 275G 380mm (15 in) woofer
• MF Driver : 1 x JBL 196H 165mm (6.5 in) horn-loaded midrange transducer
• HF Driver : 1 x JBL 2408H-2 37.5 mm (1.5") annular polymer diaphragm, neodymium compression driver"
• Enclosure : Trapezoidal, 18 mm, plywood
• Suspension / Mounting : 12 x M10 Suspension Points
• Transport : 2 x integrated handle with injection molded backing cup
• Finish : Obsidian DuraFlex' finish
• Grille : Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
• Input Connectors : 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
• Output Connector : 1 male XLR balanced output
• Dimensions (H x W x D) : 952.5 mm x 445.0 mm x 537.97 mm (37.5 in x 17.52 in x 21.18 in)
• Net Weight : 34.9 kg (77 lb)
