JBL PRX812W Features • Built-in Wi-Fi for wireless control of your system from anywhere in the venue

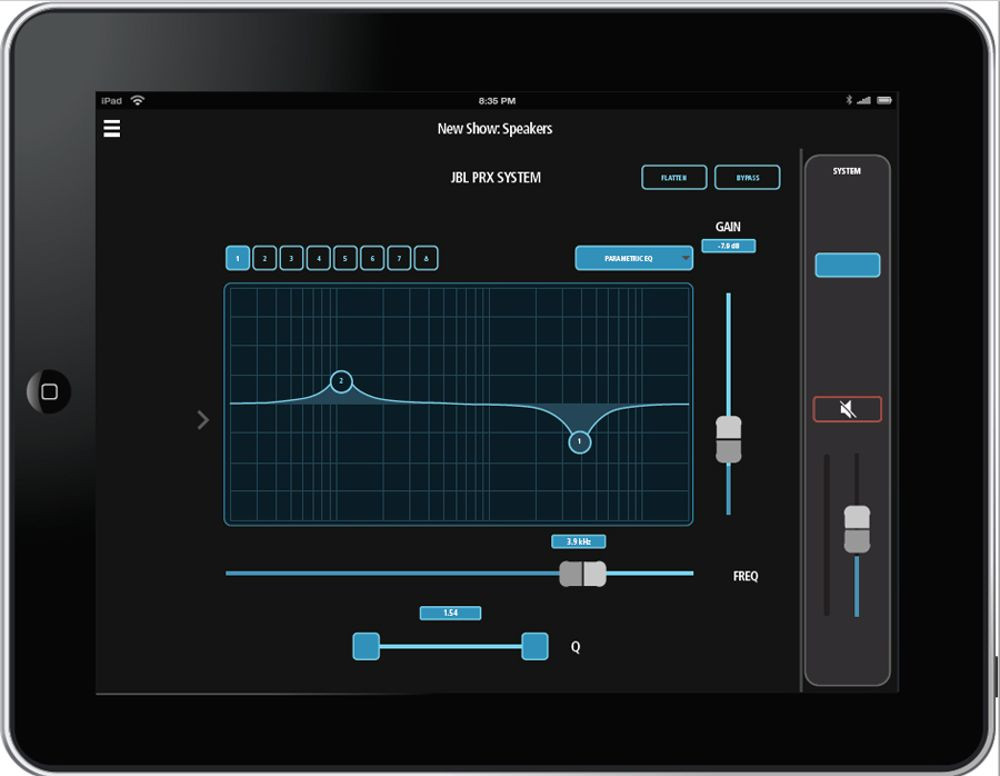

• Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
• Class-leading 1500-watt amplifier delivers ample power to fill your venue
• JBL Differential Drive transducers for higher SPL in a lightweight design
• Next-generation JBL neodymium compression drivers
• Redesigned Crown input technology, including XLR, 1/4" and RCA inputs plus XLR loop-through
• Intelligent variable-speed fan activates only when needed to reduce noise
• Updated tuning delivers flat frequency response and smooth off-axis behavior
• Durable wooden cabinets, tour-proven DuraFlex' finish and dent-resistant 16-gauge grilles
• Universal power supply for worldwide compatibility
• dbx Type IV' limiting ensures clear, accurate sound at high volumes
• Brutal testing regimenincluding the famous JBL 100-hour power testensures reliable performance

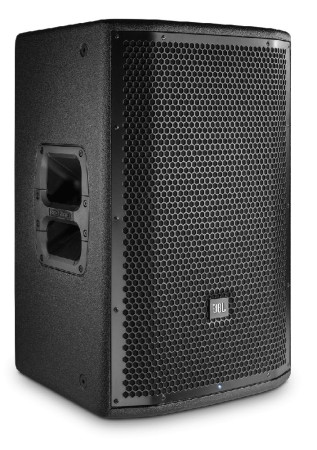

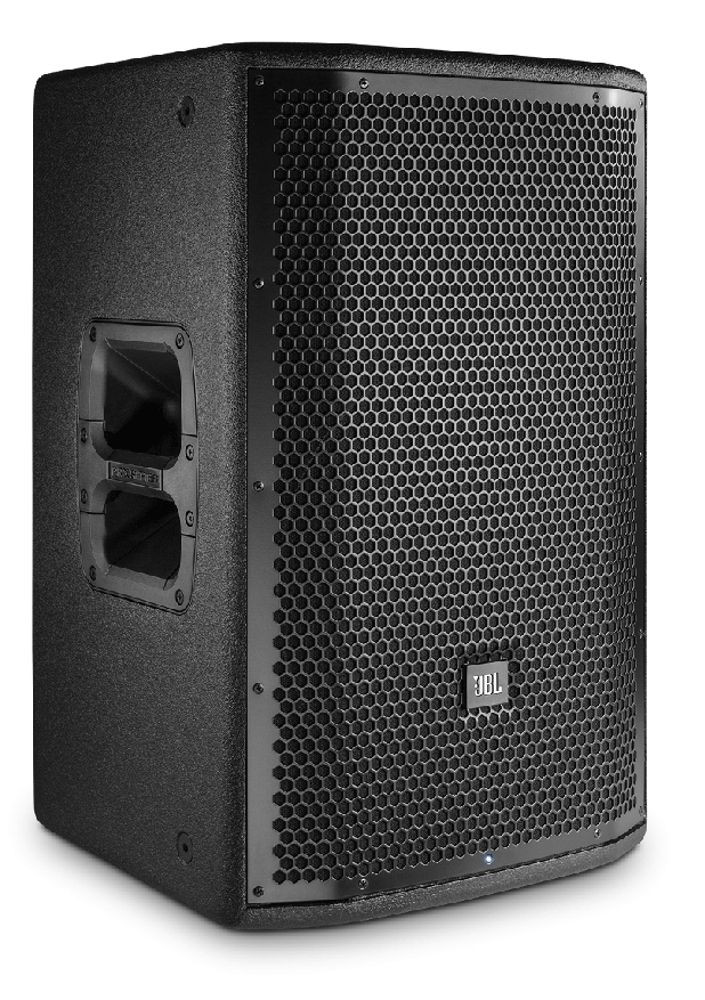

JBL PRX812W Applications PRX812W is a compact and versatile speaker in the PRX800 Series with remote Wi-Fi control of onboard DSP EQ parameters. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX812W is a perfect match with a PRX818XLFW subwoofer, offering a high performance self-powered sub/sat system.

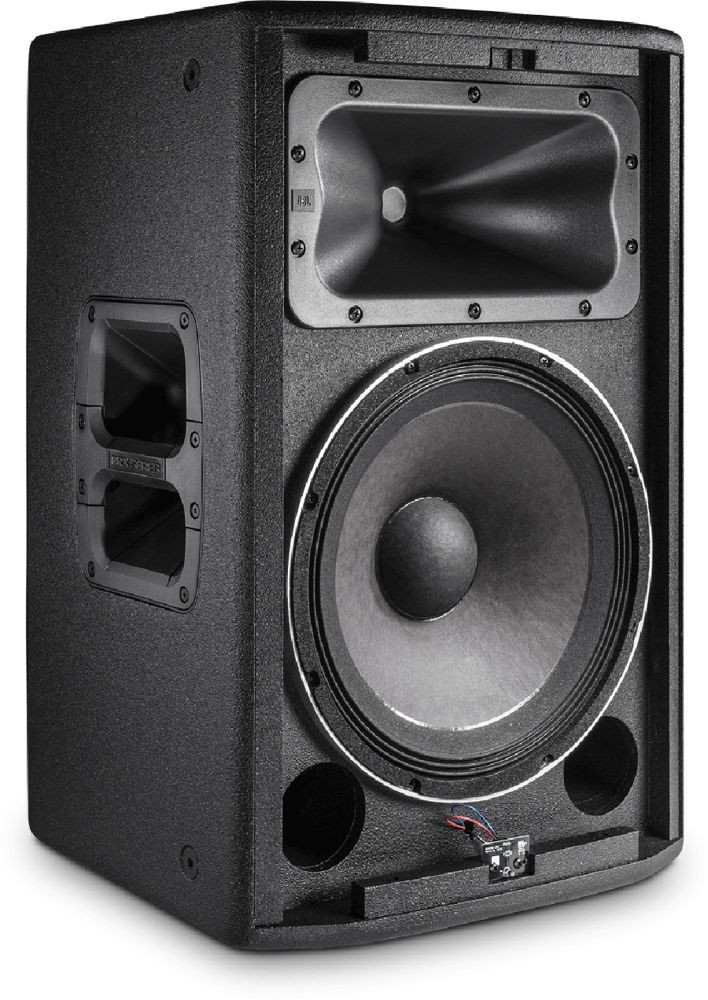

The PRX812W is comprised of a 12" Differential Drive woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90 by 50 horn, all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
All PRX800 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL's tour proven DuraFlex' finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.

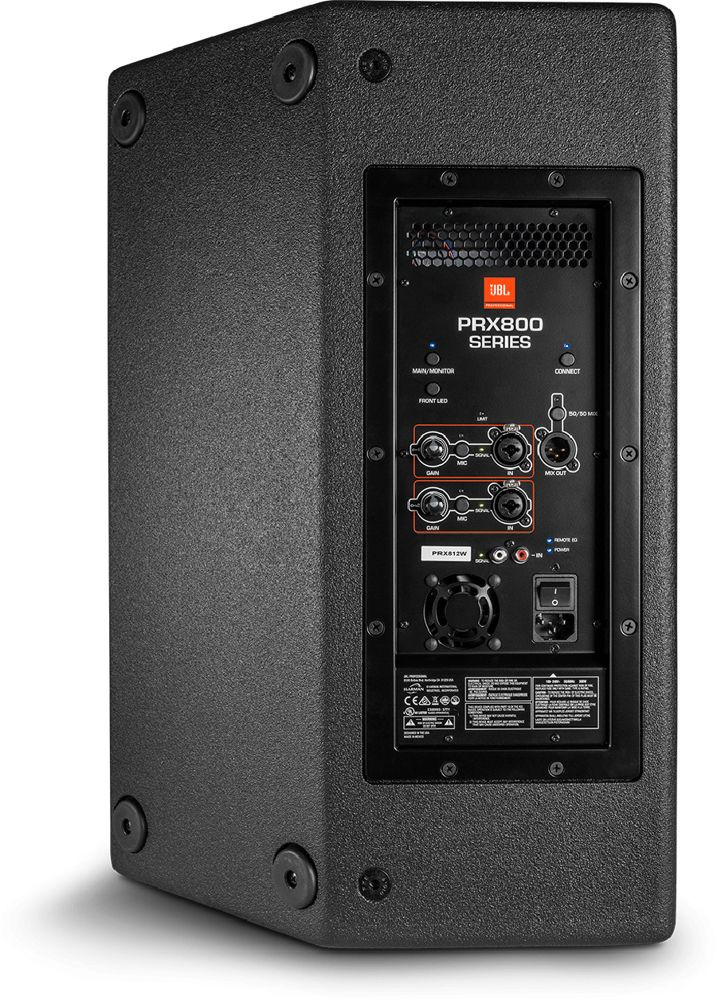

The amplifier input panel offers XLR or inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.
PRX812W Specs • System Type: Self Powered 12", two-way, bass-reflex
• Maximum SPL Output: 135 dB peak
• Frequency Range (-10 dB): Main: 52.6-20k / Monitor: 50.3 - 20k
• Frequency Response (3 dB): Main: 58.1 - 20k / Monitor: 59- 20k
• Input Connectors: 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
• Input Impedance: 20K Ohms (balanced), 10K Ohms (unbalanced)
• Signal Indicators: Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
• Signal: Green LED indicates signal present
• Power: Blue indicates system has power and ready to pass audio
• EQ: User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
• Dynamic Control (Input): dbx Type IV' limiter circuit
• Crossover Frequency: 1.850 kHz
• Design: Highly efficient Class-D amplifier
• Power Rating: 1500W (750W x 2)
• AC Power Input: 100V - 240V 50/60 Hz
• LF Driver: 1 x JBL 272G 305 mm (12 in) woofer
• HF Driver: 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
• Coverage Pattern: 90 x 50 nominal
• Directivity Index (DI): 10.2 dB
• Directivity Factor (Q): 10.4
• Enclosure: Asymmetrical, 18 mm, plywood
• Suspension/Mounting: Dual 36 mm pole socket, 12 x M10 Suspension Points
• Transport: 1 x injection molded handle with backing cup
• Finish: Obsidian DuraFlex' finish
• Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
• Dimensions (H x W x D): 599 mm x 385 mm x 341 mm / (23.6 in x 15.1 in x 13.4 in)
• Net Weight: 19.4 kg (42.5 lb)
• Gross Weight: 21.2 kg (48.0 lb)

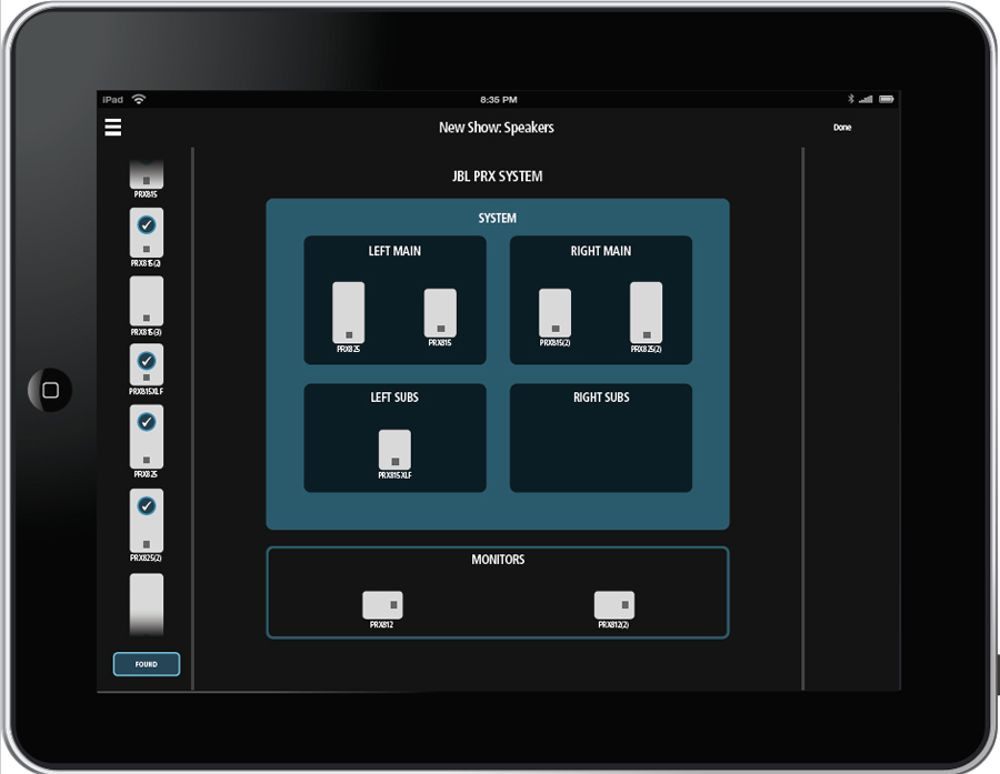

Control your JBL PRX-812W wirelessly with the PRX Connect App!
Get it here
