JBL PRX815XLFW Features • Built-in Wi-Fi for wireless control of your system from anywhere in the venue

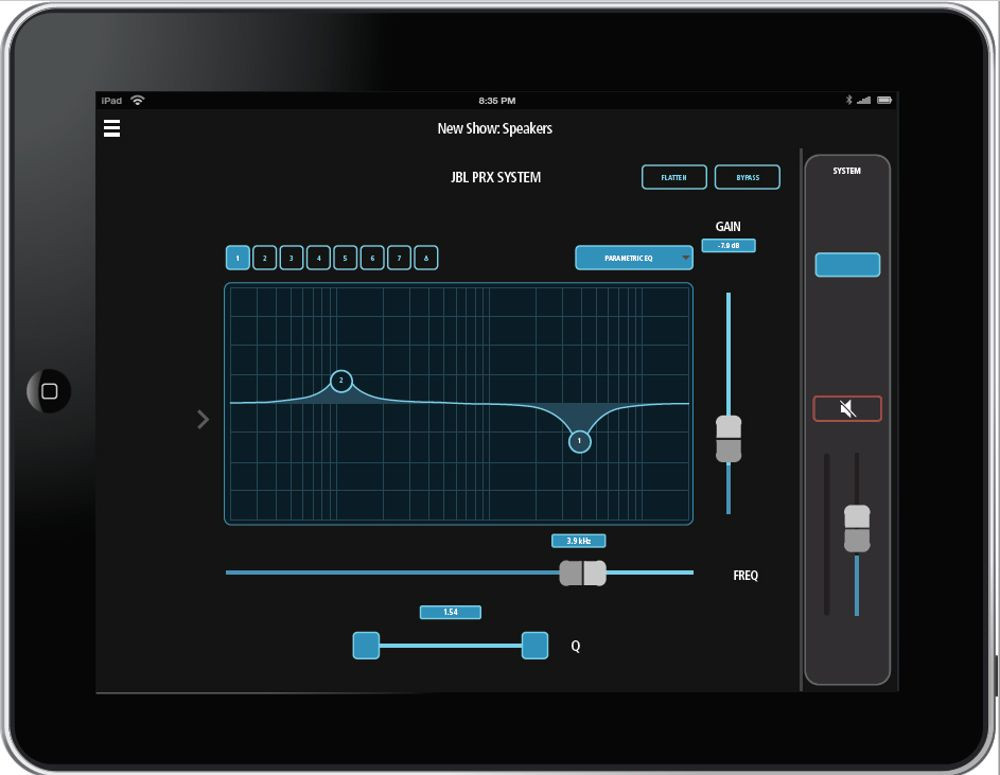

• Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
• Class-leading 1500-watt amplifier delivers ample power to fill your venue
• JBL Differential Drive transducers for higher SPL in a lightweight design
• Next-generation JBL neodymium compression drivers
• Redesigned Crown input technology, including XLR, 1/4" and RCA inputs plus XLR loop-through
• Intelligent variable-speed fan activates only when needed to reduce noise
• Updated tuning delivers flat frequency response and smooth off-axis behavior
• Durable wooden cabinets, tour-proven DuraFlex' finish and dent-resistant 16-gauge grilles
• Universal power supply for worldwide compatibility
• dbx Type IV' limiting ensures clear, accurate sound at high volumes
• Brutal testing regimenincluding the famous JBL 100-hour power testensures reliable performance

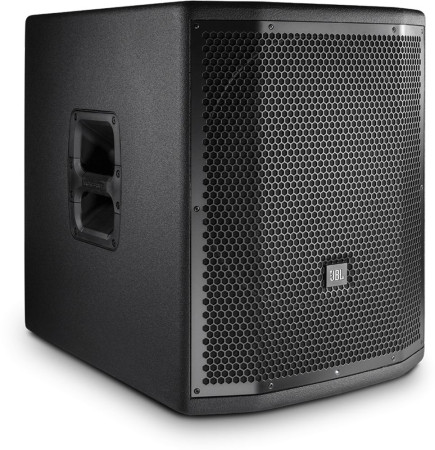

JBL PRX815XLFW Applications The PRX815XLFW extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX815XLFW performs with exceptional efficiency and control. The subs are stackable and light-weight ensuring quick set-ups and tear-downs. And due to their rugged construction are perfect for AV rental inventories. With a pole receptacle (that accepts a SS4-BK or SS4-BK24) on the top panel and integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimization.
The PRX815XLFW is a high performance self-powered subwoofer system with remote Wi-Fi control of onboard DSP EQ parameters. The PRX815XLFW is comprised of a powerful 2275H Differential Drive dual voice-coil and magnetic gap, woofer driven by a 1500 Watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable cross-over functionality, polarity optimization, protection, dynamic limiting and discrete component optimization.
All PRX800 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL's tour proven DuraFlex' finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability.

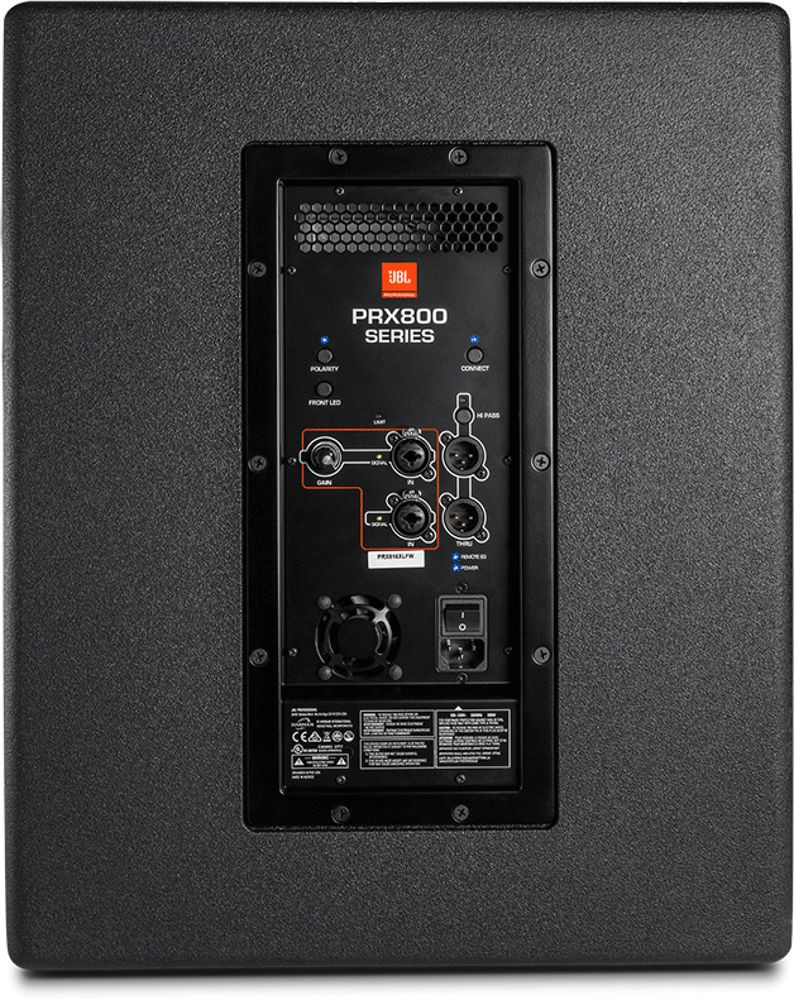

The amplifier input panel offers stereo inputs with XLR or inch jack compatibility. A user selectable crossover ensures a smooth transition to full-range system connected to the stereo outputs. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.
PRX815XLFW Specs • System Type: Self Powered 15" subwoofer
• Maximum SPL Output: 131 dB peak
• Frequency Range (-10 dB): 36 Hz - 98 Hz
• Frequency Response (3 dB): 40 Hz 87 Hz
• Input Connectors: Two Balanced female XLR/ 1/4" combo connectors
• Input Impedance: 20K Ohms (balanced)
• Signal Indicators: Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
• Signal: Green LED indicates signal present
• Power: Blue indicates system has power and ready to pass audio
• Dynamic Control (Input): dbx Type IV' limiter circuit
• Internal Crossover Frequency: 80 Hz DSP
• Loop out Crossover Frequency: 120 Hz analog 24 dB filter slope
• Design: Highly efficient Class-D amplifier
• Power Rating: 1500W
• AC Power Input: 100V - 240V 50/60 Hz
• LF Driver: 1 x JBL 2275H 15 in woofer
• Enclosure: Rectangular, 18 mm & 25 mm, plywood
• Transport: 2 x injection molded handles with backing cup
• Finish: Obsidian DuraFlex' finish
• Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
• Dimensions (H x W x D): 548 mm x 446 mm x 572 mm (21.6 in x 17.5 in x 22.5 in)
• Net Weight: 25.4 kg (56.0 lb)
• Gross Weight: 30.3 kg (66.8 lb)

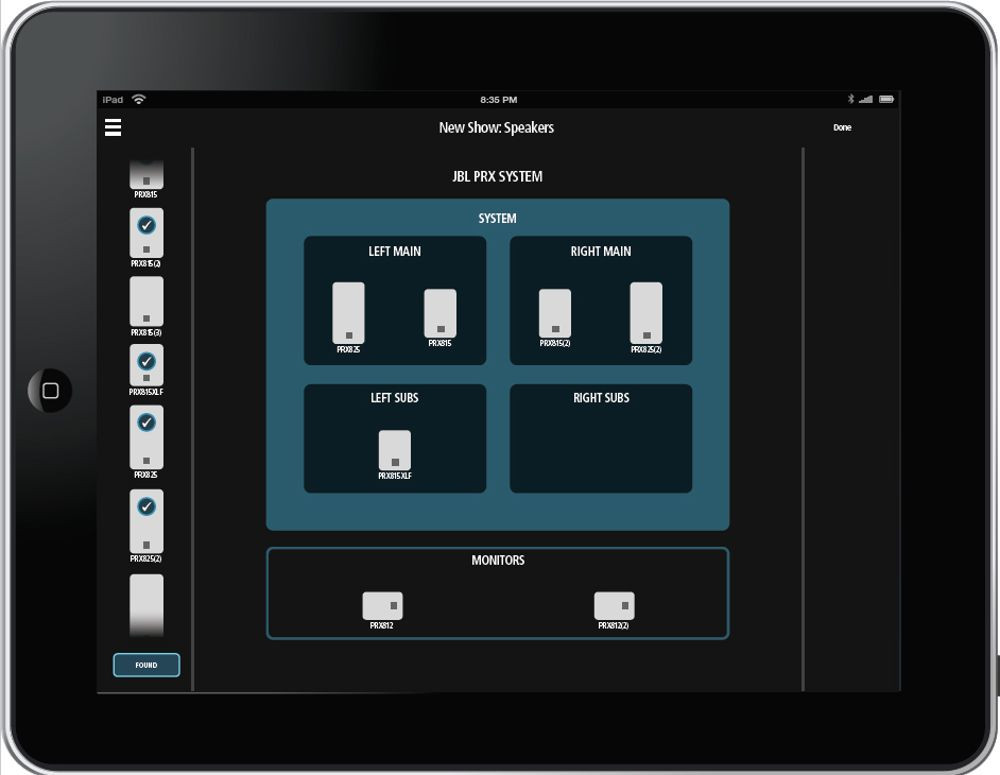

Control your JBL PRX-815XLFW wirelessly with the PRX Connect App!
