JBL STX815M 15" 2-Way Stage Monitor Speaker (Open Box)

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

jbl stx815m   *openbox
jbl stx815m   *openbox JBL STX815M 15" 2-Way Stage Monitor Speaker (Open Box) JBL STX815M 15" 2-Way Stage Monitor Speaker (Open Box) JBL STX815M 15" 2-Way Stage Monitor Speaker (Open Box)
Images may show accessories or configurations not packaged with this item.

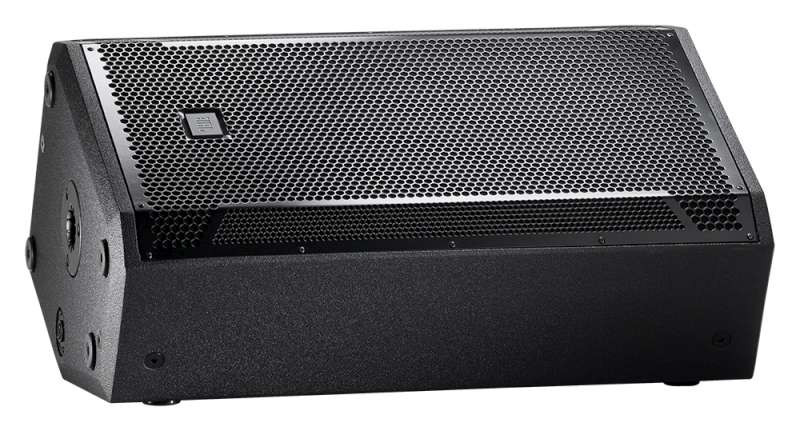

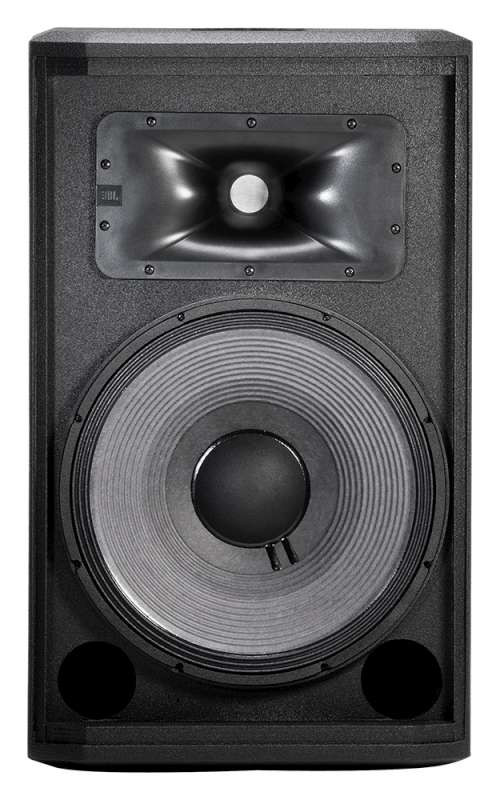

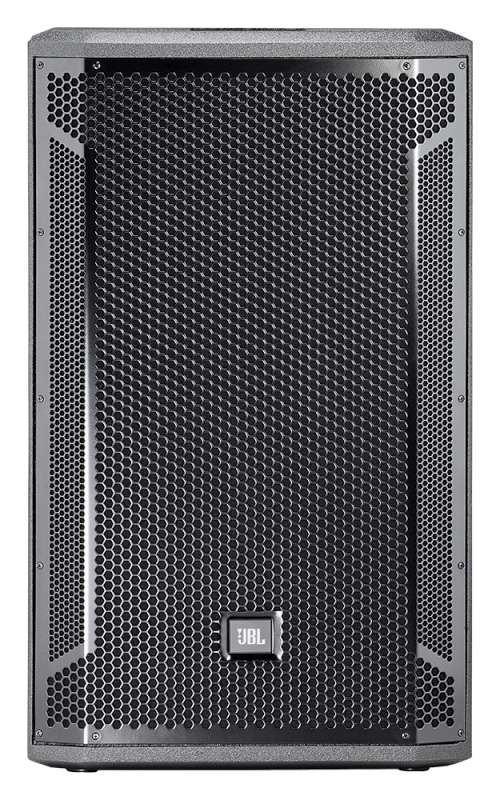

The JBL STX815M is a single 15" lightweight two-way system designed to function as a high-power handling, FOH loudspeaker system or as an extended range floor monitor. It offers an extremely high level of performance either ground, pole or stand mounted. A 70 degree by 70 degree coverage angle for focused directivity control.

• Compact and low-profile for minimal obstruction of audience sight-lines.
• 70x 70 nominal coverage.
• Bi-amplified or full-range passive operation.
• Pole socket for applications requiring pole or tripod mounting.
• Twelve M10 suspension points.

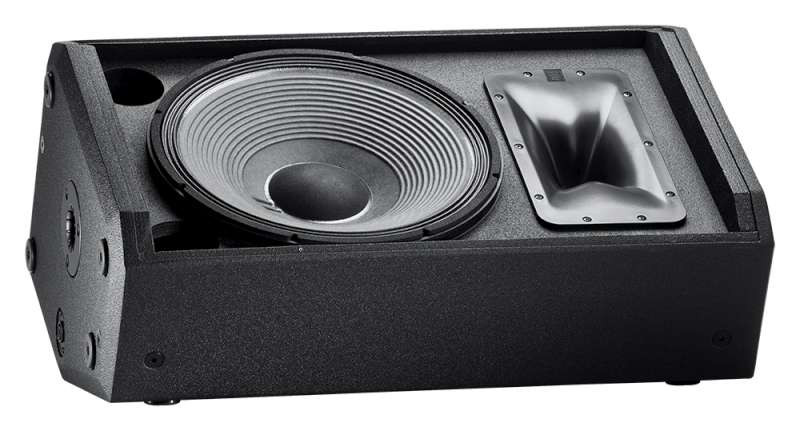

• High power handling, low distortion Vented Gap Cooling' LF driver.
• 3 in. (diaphragm) neodymium magnet compression driver.
• Rugged DuraFlex' coated enclosures sized to be truck pack friendly.
• 14-Gauge steel grille lined with acoustically transparent cloth.

• Frequency Range ( -10 dB): 41 Hz-20 kHz
• Frequency Response ( 3 dB): 55 Hz-20 kHz
• Coverage Pattern: 70 70 nominal
• Sensitivity (1W/1m): 96 dB
• Power Rating: 800 W / 1600 W / 3200 W (Continuous/Program/Peak)
• Rated Maximum SPL: 131 dB SPL Peak
• Nominal Impedance: 8O
• Input Connectors: Two NL4
• Operational Modes: Full Range/Bi-Amp
• Dimensions (H x W x D): 28.4" x 17.2" x 13.0"
• Net Weight: 26 kg (58 lbs)

Additional Information

Product ConditionOpen Box
