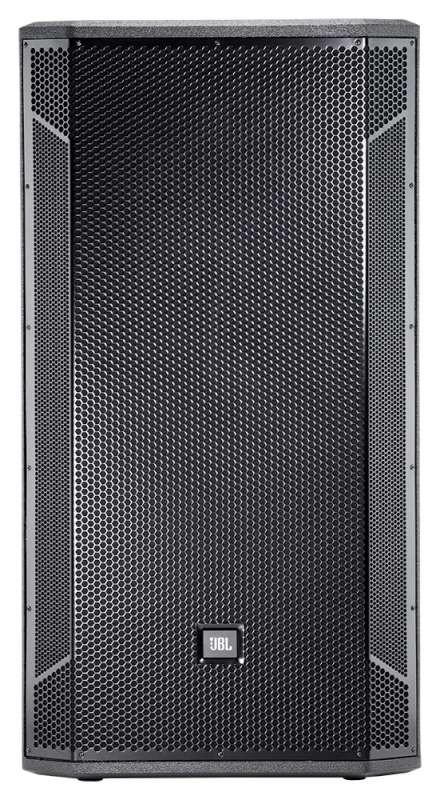

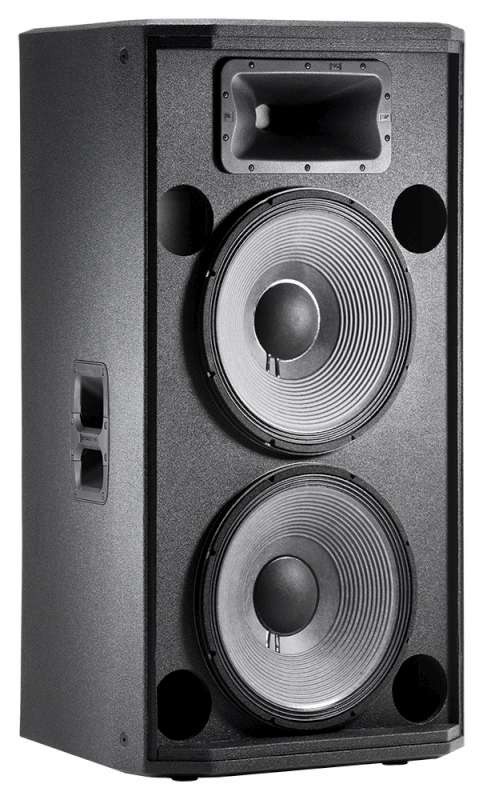

The JBL STX825 is a dual 15" two-way speaker designed for maximum impact, portability and ease of use. With a wide frequency range and broad 90 degree by 50 degree coverage angles, this speaker is ideal for bands or DJ's as their primary PA, use as a side-fill on a concert stage, or as an install speaker in a dance club or performance venue.
FEATURES:• Compact and very high-power.
• Dual (15") Vented Gap Cooling' low-frequency drivers for very high acoustic output.
• 102 mm (4 in) voice-coil neodymium compression driver for high-power capacity and very light-weight
• 90x 50 coverage.
• Bi-amplified or full-range passive operation.
• Twelve M10 suspension points may be used with optional M10 eyebolts.
• Rugged DuraFlex' coated enclosures sized to be truck pack friendly.
• 14-Gauge steel grille lined with acoustically transparent cloth.
SPECIFICATIONS:• Frequency Range ( -10 dB): 34 Hz-20 kHz
• Frequency Response ( 3 dB): 42 Hz-19 kHz
• Coverage Pattern: 90 50 nominal
• Sensitivity (1W/1m): 98 dB
• Power Rating: 1600 W / 3200 W / 6400 W (Cont. Pink Noise/Program/Peak)
• Rated Maximum SPL: 136 dB SPL Peak
• Nominal Impedance: 4O
• Input Connectors: Two NL4
• Operational Modes: Full Range/Bi-Amp
• Dimensions (H x W x D): 42.0" x 22.4" x 22.6"
• Net Weight: 51 kg (112 lbs)
