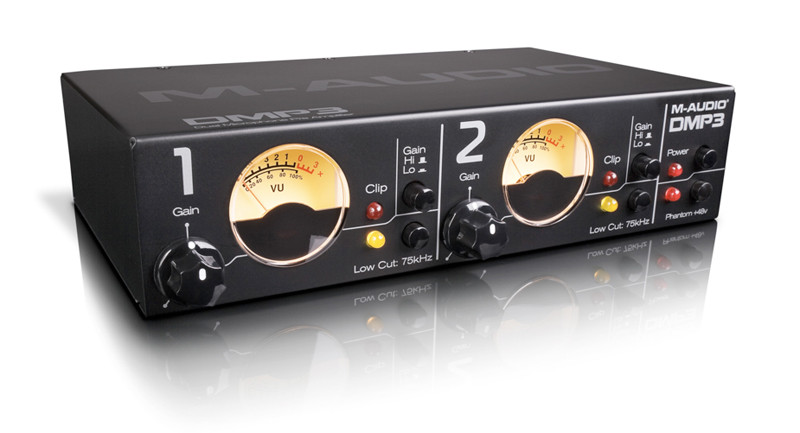

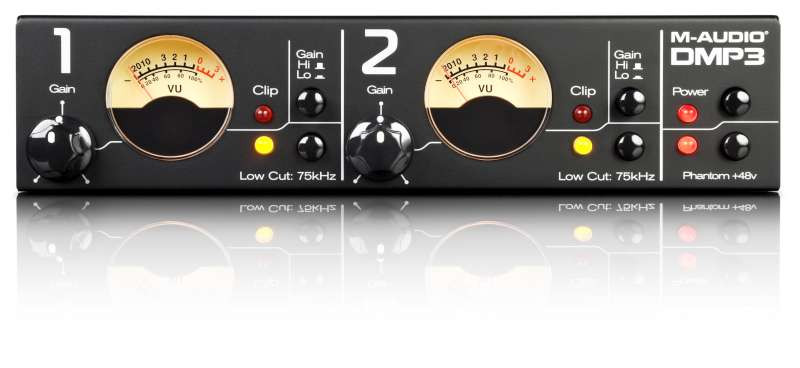

Based on the M-Audio preamplifier technology that won Pro Audio Review's highest accolades, the DMP3 preamp is designed to provide a premium front end for today's high-resolution digital recording systems. It features an amazing 20Hz to 80kHz frequency response, 67dB of gain and an exceptional dynamic range to capture all the nuances of your music. With pristine sound quality and a compact, rugged chassis, DMP3 has become the top choice of numerous audio professionals and a fixture in studios around the world. Whether you use it for performance or production, the DMP3 two-channel microphone/instrument preamp is destined to be integral in defining your sound.

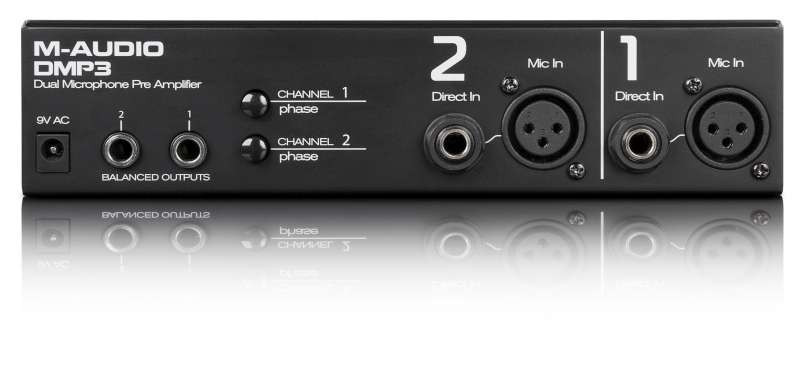

FEATURES:• 2-channel preamp with XLR microphone inputs and 1/4" instrument inputs accommodates any type of audio signal
• Balanced outputs on TRS jacks deliver hum-free professional audio
• Low harmonic distortion (THD+N: .0005% @ 20Hz-20kHz) for ultra-clean sound
• Exceptional dynamic range to capture all the nuances of your music
• 20Hz to 80kHz frequency response (+/- 0.5dB) ideal for high-resolution recording
• High and low gain range controls offer up to 67dB of gain
• Clip LED for visual feedback of detrimental levels
• Low-cut filters remove unwanted rumble and hum
• Phantom power to accommodate all types of microphones
• Phase reverse switch on each channel ensures optimal recordings
SPECIFICATIONS:All specs taken at minimum gain unless otherwise stated: • Frequency response: 20Hz - 80kHz, +/-0.5dB @ max gain
• SNR: -120dB, A-weighted, 20Hz to 20kHz
• THD+N: 0.00035% (-109dB), 20Hz to 20kHz, @ +13.6dBu input
• Max input: +14.6dBu
• Max output: +27.5dBu
• Input impedance: 3k Ohms balanced
• EIN: -128dBm @ 600 Ohms, max gain
• Gain range: 13.5dB to 46.5dB, low gain range
39.5dB to 67.5dB, high gain range
• Low-cut filter: -3dB @ 72Hz (18dB/Octave)
