MAudio FIREWIRE 18 14 14 out Audio Interface

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

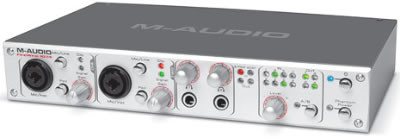

m-audio firewire-18-14
The FireWire 18/14 is an 18-in, 14-out audio interface complete with ADAT Lightpipe for multi-channel communication with other digital devices.

It features 8 x 4 analog I/O at up to 24-bit/96kHz, and boasts 192kHz on the first two inputs and all four outputs. Channels 1 and 2 also include high-quality microphone/instrument preamps. S/PDIF optical digital I/O provides 2-channel PCM, as well as pass-through of surround-encoded AC-3 and DTS material. Flexible internal mixing allows input and output routing, including an aux bus for effects send or monitor mix. A front-panel momentary switch allows DJ-style headphone auditioning between two assignable sources. Other features include two headphone amplifiers, assignable level controller, S/PDIF coaxial/optical digital I/O, 1 x 1 MIDI I/O, and BNC word clock connectors.

FEATURES:
• 18 x 14 FireWire audio interface
• 8 x 24-bit/96kHz analog inputs (1/4" TS)
• 4 x 24-bit/96kHz analog outputs (1/4' TRS/TS)
• 2 x 4 24-bit/192kHz analog I/O capability
• 8 x 8 ADAT Lightpipe I/O
• digital S/PDIF (coaxial) I/O w/ 2-channel PCM
• digital out also supports pass-through of AC-3/DTS surround-encoded content
• dual mic/instrument preamps (Neutrik XLR/ 1/4" TS) with
• input level controls
• 20dB pad
• phantom power
• signal LEDs
• two independently assignable headphone outputs with individual level controls (1/4" TRS)
• flexible software-controlled mixing of hardware and software I/O
• aux sends on all channels and aux output assign allows for dedicated headphone mixes and sends to external effects
• user-assignable front-panel level control (output, input, software return, aux send)
• near zero-latency hardware direct monitoring
• low-latency ASIO software direct monitoring
• momentary switch for A/B cueing two software-assignable headphone sources or switching ASIO monitoring on/off
• 1 x 1 16-channel MIDI I/O
• wordclock (BNC) for sync to external devices
• power on/off switch with indicator LED
• powered via FireWire bus* or included DC power adapter
• two convenient high-bandwidth FireWire ports
• rugged steel construction
• requires 6-pin connection

TECHNICAL SPECIFICATIONS:
• line inputs (TS) 1-8
• frequency response: +/- 0.1 dB, 22Hz to 22kHz
• dynamic range: 105dB, A-weighted
• signal-to-noise ratio: -105dB, A-weighted
• THD+N: <0.00281% (-91dB)
• crosstalk: -107dB @ 1 kHz
• nominal input level: -10dBV
• maximum input level: +2.1dBV, typical
• input impedance: 10k Ohms, typical

Mic/inst. inputs (balanced) 1-2 at minimum gain:
• frequency response: +/- 0.1 dB, 22 Hz to 22 kHz
• dynamic range: 105dB, A-weighted
• signal-to-noise ratio: -105dB, A-weighted
• THD+N: <0.00281% (-91dB)
• crosstalk: -105 dB @ 1 kHz
• -3.8 dBu, typical
• input impedance: inst in: 500k Ohms, typical; mic in: 1.8k Ohms, typical
• adjustable gain: > 40 dB
• pad: -20 dB
• total gain range: +60 dB

line outputs (TRS) 1-4:
• frequency response: 192 kHz: +/- 1 dB, 22Hz - 80kHz
• 96kHz: +/- 0.5 dB, 22Hz - 40kHz
• 48 kHz: +/- 0.1 dB, 22Hz - 22kHz
• dynamic range: 107dB, A-weighted
• signal-to-noise ratio: -107dB, A-weighted
• THD+N: <0.00301% (-90.5 dB)
• crosstalk: -106dB @ 1 kHz
• nominal output level: +4dBu balanced, -10dBV unbalanced
• maximum output level: +10.2dBu balanced, typical; +2.0dBV unbalanced, typical
• output impedance: 150 Ohm
• load impedance: 600 Ohm minimum

headphone outputs at maximum volume into 32 Ohm load:
• frequency response: +/- 1 dB, 22Hz to 22kHz
• power into Ohms: 16 mW into 32 Ohms
• THD+N: <0.04987% (-66.1 dB)
• signal-to-noise ratio: -96 dB, A-weighted
• max output level into 32 Ohms: -3.0dBV, typical • output impedance: 75 Ohm
• load impedance: 32 to 600 Ohms

word clock:
• output: up to 192kHz
• input: up to 96kHz
• pass-through I/O: up to 96kHz
• impedance: 75 Ohms
• analog sampling rates: 44.1kHz to 192kHz for analog input 1/2 and all analog outputs
44.1kHz to 96kHz input on channels 3-8
• digital sampling rates (kHz) 44.1, 48, 88.2, and 96 for coaxial S/PDIF in and out
44.1 and 48 for optical S/PDIF in & out
44.1, 48, or 88.2, 96 for ADAT I/O in S/MUX mode
