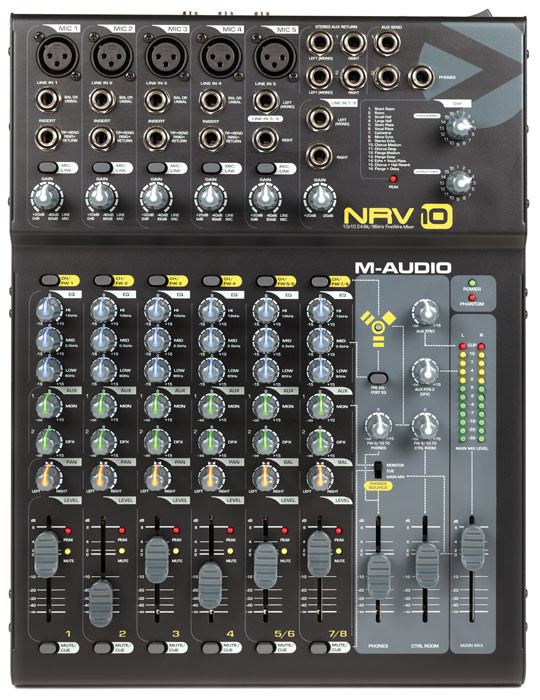

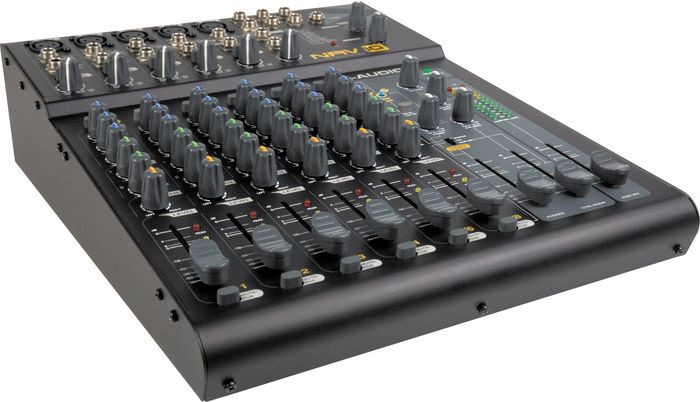

The NRV10' is a new breed of gear that combines an 8 x 2 analog mixer and a 10 x 10 24-bit/96kHz digital audio interface in one convenient packagethe perfect tool for computer-based recording and performance. Route and record mixer channels discretely to individual tracks in Pro Tools M-Powered 7.3 and greater (Pro Tools M-Powered 7.3 is a paid upgrade from earlier versions of Pro Tools M-Powered), Ableton Live 6 and other software studios. You can also return multiple discrete audio channels from your computer to the NRV10 for CPU-free mixing and monitoring complete with on-board digital effectsgreat for live performances. And that means you don't have to change settings like EQ and reverb in your files every time you play a new venue. Flexible monitoring options also make vocal/instrument recording and DJ-style audio previewing a breeze. And the included NRV10 interFX application allows you to turn your NRV10 and host computer into a powerful live mixer with access to all of your VST effects. The NRV10 seamlessly integrates your computer with your studioand bridges the gap between studio and stage as well.
Features• High-quality 8 x 2 analog mixer with integral 10 x 10 FireWire S 400 audio interface
• 24-bit/96kHz on all channels
• 4 mono channels, 2 stereo channels, each with:
-- " TRS balanced line input
-- Channel/FireWire selector
-- Gain control
-- Monitor send
-- Effect send
-- Pan/balance
-- Volume fader with peak indicator LED
-- Mute/cue button
• Balanced XLR mic inputs with mic/line switch on first 5 channels
• " insert jacks on all mono channels
• 3-band EQ on each channel
• Integrated digital effects processor with 16 effects, plus variations, mute and peak LED
• 2 mono aux sends and 2 stereo aux returns

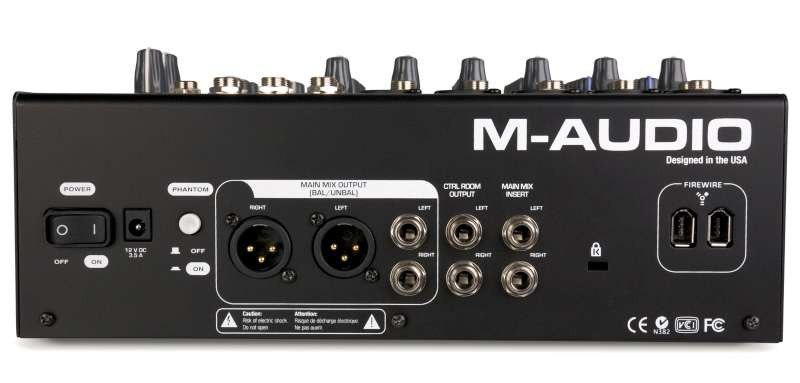

• Both XLR balanced and " TRS balanced main outputs
• Headphone output with flexible source assignment and DJ-style pre-listening
• Independent volume for mix, control room and headphones
• NRV10 interFX application facilitates live mixing with included dynamic effects, VST compatibility and software recall:
-- Add real-time insert effects to each NRV10 channel
-- Built-in compression and expansion-gating for each channel
-- Host two VST plug-ins per channel
-- Save and recall setups to easily change effect configurations between songs
-- Instant setup through automatic configuration with NRV10 hardware
• Also functions as a standard analog mixer
• Durable metal chassis
• Compatible with Pro Tools M-Powered 7.3 and greater* (demo included)
*Pro Tools M-Powered 7.3 is a paid upgrade from earlier versions of Pro Tools M-Powered.
Click here for an interactive image:Minimum System Requirements (PC)• Pentium 3 - 800MHz (may be higher for laptops)
• 512 MB RAM
• Windows XP (SP2)*, DirectX 9.0c
• Available FireWire port or FireWire expansion card
* Home and Professional Edition only. Windows Media Center Edition is not supported.
** Please check the minimum system requirements of your DAW software as they may be higher.
Minimum System Requirements (Mac)• Macintosh G3** 800MHz or G4** 733MHz (may be higher for laptops)
• 512MB RAM
• Mac OS X 10.3.9, 10.4.7, 10.5.2
• Available FireWire port or FireWire expansion card
*Please check the minimum system requirements of your DAW software as they may be higher.
**G3/G4 accelerator cards not supported.
