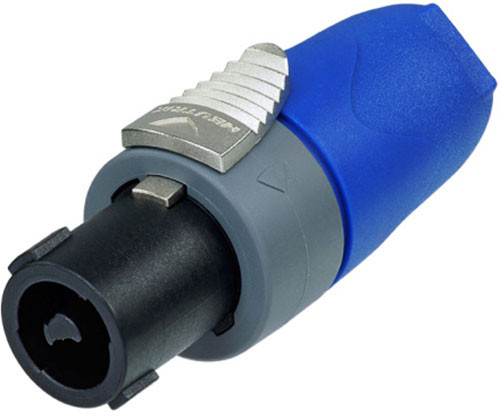

Neutrik NL2FX 2-pole speakON Connector

neutrik nl2fx
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

In Stock In Stock and Ready To Ship
Free Shipping FREE Shipping on orders over $99
(All Shipping Options)
VIP Price:

Non Returnable: This item is non-returnable unless defective. Additional restrictions may also apply. Details

The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

• Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
• Only 3 parts, easy to assemble
• High impact materials - long-lasting and reliable
• Easy and extremely precise locking system "Quick Lock"
• 1 piece strain relief, chuck for 6 to 10 mm cable O.D.
• Improved grip on latch
• Mates with 4-pole chassis connector as well and makes contact with +1/-1

• Contact resistance: Less than 2 mO (inner) (after lifetime)
• Dielectric strength: 4 kVdc (peak)
• Insulation resistance: Greather than 1 GO (after dampheat)
• Rated current per contact: 40 A rms continuous
• Rated current per contact: 50 A audiosignal, duty cycle 50 %
• Rated voltage: 250 V (Insulation)
AttentionspeakON is not to be used as an AC mains or power supply connector!

• Cable O.D.: 6 - 10 mm
• Cable retention: Greater than or equal to 220 N (subject to cable O.D. and material)
• Lifetime: Greater than 5000 mating cycles
• Wiresize: 1.5 - 4 mm
• Wiresize: 16 - 12 AWG
• Wiring: screw type terminals or soldering
• Locking device: Quick Lock (latch)

• Contact plating: 4 m Ag
• Contacts: Brass (CuZn39Pb3)
• Insert: PBTP 20 % GR
• Locking element: Zinc diecast (ZnAl4Cu1)
• Shell: PBTP 20 % GR
• Strain relief: Polyacetal (POM)

• Flammability: UL 94 HB
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 C to +80 C
