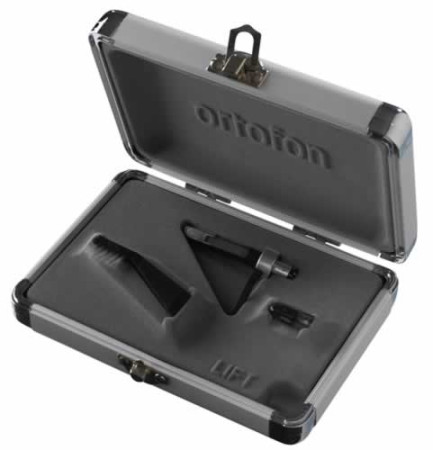

Ortofon's Pro spherical cartridge is built to withstand tough use in clubs and on the road! Cueing and back-tracking is made easier with the specially designed and luminous tip, and sound quality is superb! Includes extra stylus
FEATURES* Output voltage at 1000 Hz, 5cm/sec. 5 mV
* Channel balance at 1 kHz 2 dB
* Channel separation at 1 kHz 20 dB
* Channel separation at 15 kHz 15 dB
* Frequency range at - 3dB 20-20.000 Hz
* Frequency response 20-18.000 Hz + 3 / - 2 dB
* FIM distortion at recommended tracking force, DIN 45.542 < 1%
* Tracking ability at 315Hz at recommended tracking force 70 m
* Compliance, dynamic, lateral 7 m/mN
* Stylus type Spherical
* Stylus tip radius R 26 m
* Equivalent stylus tip mass 0,5 mg
* Tracking force range 3,0-5,0 g (30-50 mN)
* Tracking force, recommended 4,0 g (40 mN)
* Tracking angle 20
* Internal impedance, DC resistance 750 Ohm
* Internal inductance 450 mH
* Recommended load resistance 47 kOhm
* Recommended load capacitance 200-600 pF
* Cartridge colour, body/stylus Black/Black
* Cartridge weight 18,5 g
* Replacement stylus unit PRO S
