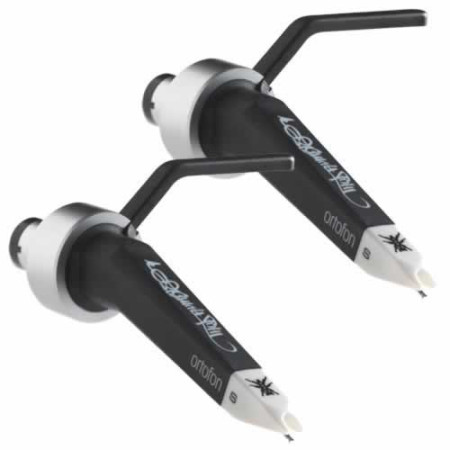

The Ortofon Qbert spherical cartridge is the ultimate scratching cartridge with supreme anti-skipping. With an output of 11-12mV (yes, 11-12mV), it's sound performance is unrivalled.
Technical Info:• Output voltage at 1000 Hz, 5cm/sec. 11 mV• Channel balance at 1 kHz 1,5 dB• Channel separation at 1 kHz 22 dB• Channel separation at 15 kHz -• Frequency range at - 3dB 20-20.000 Hz• Frequency response 20-18.000 Hz- 3 dB• FIM distortion at recommended tracking force, DIN 45.542 < 1 %• Tracking ability at 315Hz at recommended tracking force 90 m• Compliance, dynamic, lateral 12m/mN• Stylus type Spherical• Stylus tip radius R 18 m• Equivalent stylus tip mass 0,6 mg• Tracking force range 3,0 g (30 mN)• Tracking force, recommended 4,0 g (40 mN)• Tracking angle 20• Internal impedance, DC resistance 1680 Ohm• Internal inductance 920 mH• Recommended load resistance 47 kOhm• Recommended load capacitance 200-400 pF• Cartridge colour, body/stylus Black / White• Cartridge weight 18,5 g• Replacement stylus unit Q.Bert
