Ortofon CC-SCRATCH Pink Sperical DJ Cartridge Kit

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

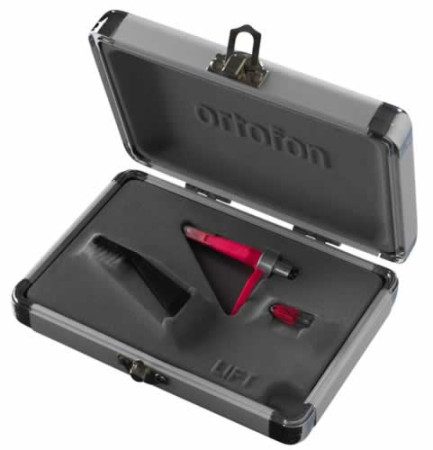

ortofon cc-scratch-kit-s
Ortofon's CC-SCRATCH cartridge is especially designed for DJs who love to cut. Designed to stay in the groove and perform when you need it, the CC SCRATCH is Ortofon perfection. Includes extra stylus

FEATURES

* Output voltage at 1000 Hz, 5cm/sec. 7 mV
* Channel balance at 1 kHz 1,5 dB
* Channel separation at 1 kHz 25 dB
* Channel separation at 15 kHz 15 dB
* Frequency range at - 3dB 20-20.000 Hz
* Frequency response 20-15.000 Hz + 2 / - 3 dB
* FIM distortion at recommended tracking force, DIN 45.542 < 1 %
* Tracking ability at 315Hz at recommended tracking force 80 m
* Compliance, dynamic, lateral 6 m / mN
* Stylus type Spherical
* Stylus tip radius R 18 m
* Equivalent stylus tip mass 0,6 mg
* Tracking force range 3,0-5,0 g (30-50 mN)
* Tracking force, recommended 4,0 g (40 mN)
* Tracking angle 20
* Internal impedance, DC resistance 750 Ohm
* Internal inductance 450 mH
* Recommended load resistance 47 kOhm
* Recommended load capacitance 200-600 pF
* Cartridge colour, body/stylus Neon red / Neon red
* Cartridge weight 18,5 g
* Replacement stylus unit Scratch

Additional Information

UPCN/A
SKUCC-SCRATCH-KIT-S
ManufacturerOrtofon
Product ConditionNew - On Clearance
