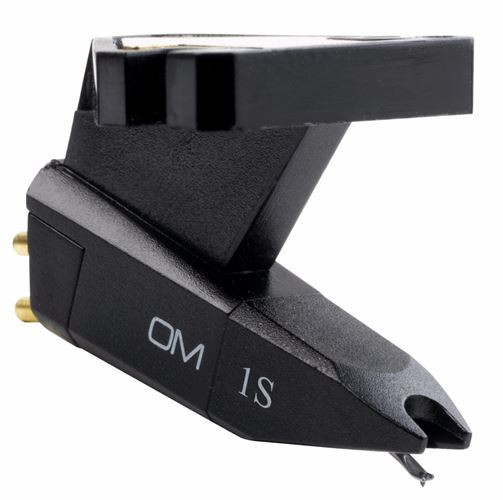

The OM 1S is a magnetic cartridge (MM) with a Spherical shaped stylus that provides balanced and distortion-free playback for general purpose applications. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate. If your tonearm is an standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.
Technical data:• Output voltage at 1000 Hz, 5cm/sec. - 4,5 mV
• Channel balance at 1 kHz - 2 dB
• Channel separation at 1 kHz - 20 dB
• Channel separation at 15 kHz - 12 dB
• Frequency range at - 3dB - 20-20.000 Hz
• Frequency response - 20-22.000 Hz
• Tracking ability at 315Hz at recommended tracking force *) - 60 m
• Compliance, dynamic, lateral - 20 m/mN
• Stylus type - Spherical
• Stylus tip radius - R 18 m
*) Typical value
Tracking force range - 1,5-2,0 g (15-20 mN)
Tracking force, recommended - 1,75 g (17,5 mN)
Tracking angle - 20
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-500 pF
Cartridge colour, body/stylus - Black/Black
Cartridge weight - 5 g
Replacement stylus unit - Stylus 1S
