Ortofon OM DJE Pink Cartridge Kit

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

ortofon om dje kit
Images may show accessories or configurations not packaged with this item.

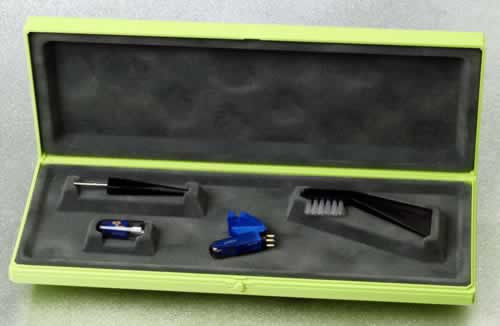

Ortofon pink cartridge with extra stylus. Output voltage at 1000 Hz: 5cm/sec. ; 6 mV. Tracking force range: 2,0-4,0 g (20-40 mN)

• Output voltage at 1000 Hz, 5cm/sec. 6 mV
• Channel balance at 1 kHz 2 dB
• Channel separation at 1 kHz 23 dB
• Channel separation at 15 kHz 15 dB
• Frequency range at 3dB 20-22.000 Hz
• Frequency response: 20-20.000 Hz 2 dB
• FIM distortion at recommended tracking force, DIN 45.542 < 1%
• Tracking ability at 315Hz at recommended tracking force: 80 m
• Compliance, dynamic, lateral: 9 m/mN
• Stylus type: Special elliptical
• Stylus tip radius: r/R 13/25 m
• Equivalent stylus tip mass: 0,6 mg
• Tracking force, recommended: 3,0 g (30 mN)
• Tracking angle: 20
• Internal impedance, DC resistance: 750 Ohm
• Internal inductance: 450 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 200-600 pF
• Cartridge colour, body/stylus Blue/Blue
• Cartridge weight: 5 g
• Replacement stylus unit: DJ E
