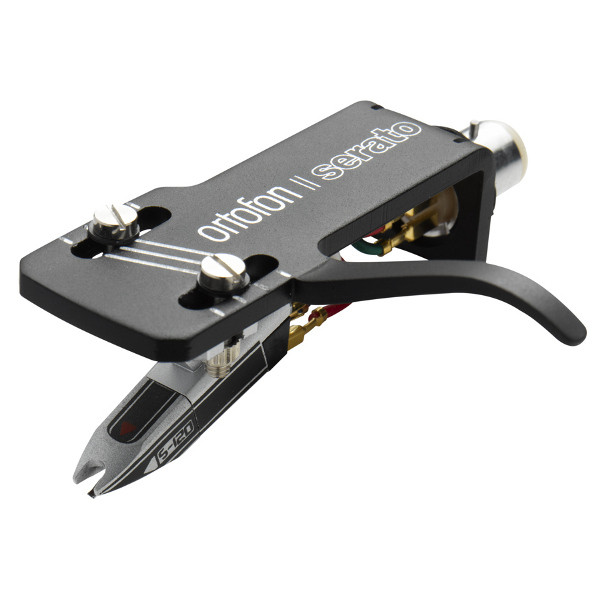

The Ortofon-Serato S-120 represents a completely new way of constructing and designing cartridges. Its breakthrough technology has been designed to provide maximum freedom for DJ performance. An innovative technology, called asymmetric suspension, takes the cartridge performance to the next level.
Features:• The best tracking performance for scratching and turntablism
• Horizontal tracking ability tops 120 "m
• Vinyl wear reduced to an absolute minimum
• Absolute flexibility in all settings
• Elimination of setup and calibration requirements
• Unprecedented level of sound quality
Technical data:Output voltage at 1000Hz, 5cm/sec. - 10 mV
Channel balance at 1kHz - 1,5 dB
Channel separation at 1kHz - 20 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-18.000 Hz
Frequency response - 20-18.000 Hz +3/-2 dB
Tracking ability at 315 Hz at recommmended tracking force - 120 m
Compliance, dynamic lateral - 11 m/m N
Stylus type - Spherical
Stylus tip radius - R 18 m
Tracking force range - 1,5-10,0 g (15-100 mN)
Tracking force recommended - 4,0 g (40 mN)
Internal impedance, DC resistance - 1680 Ohm
Internal inductance - 920 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
Concorde weight - 18,5
OM cartridge weight - 5,0 g
Replacement stylus unit - S-120
