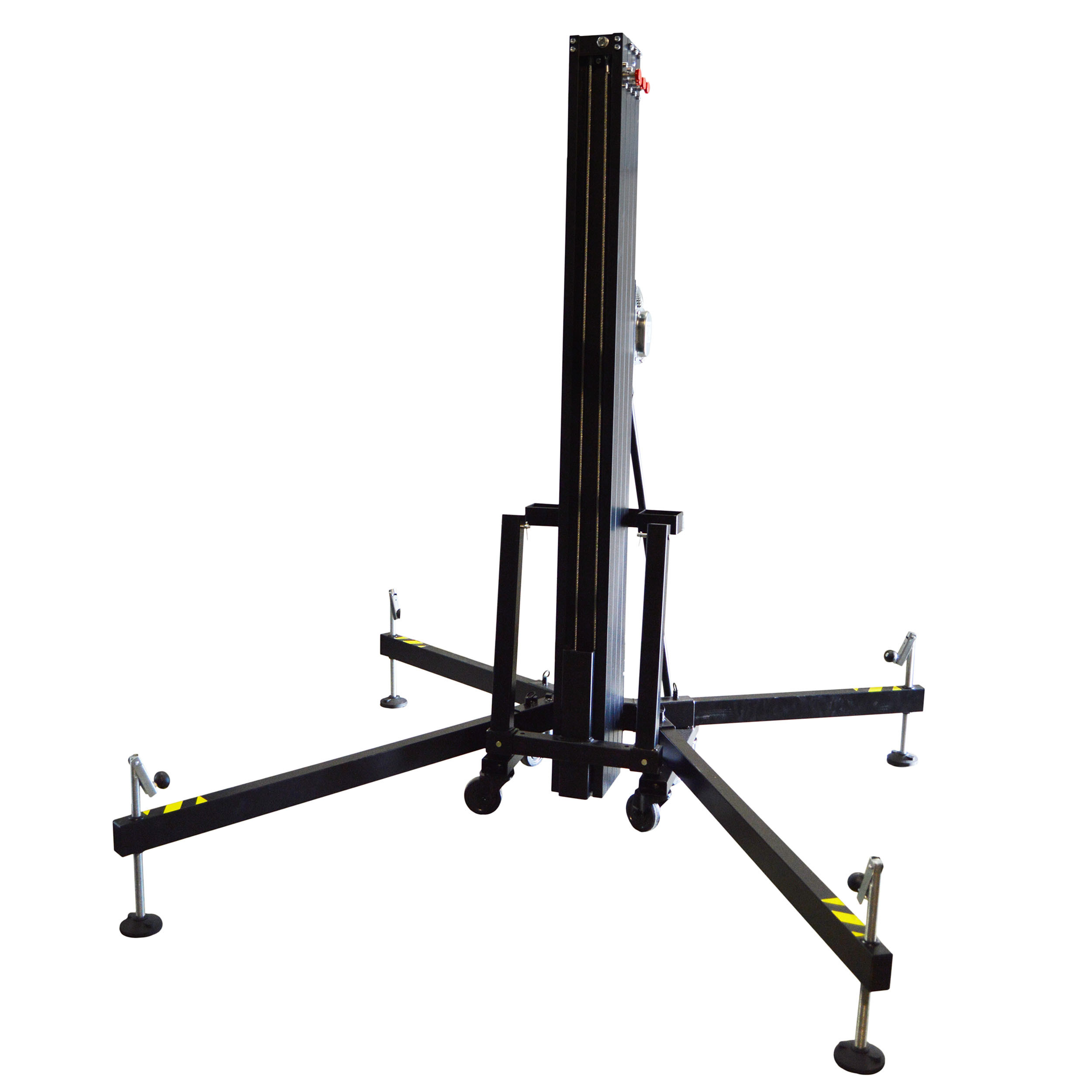

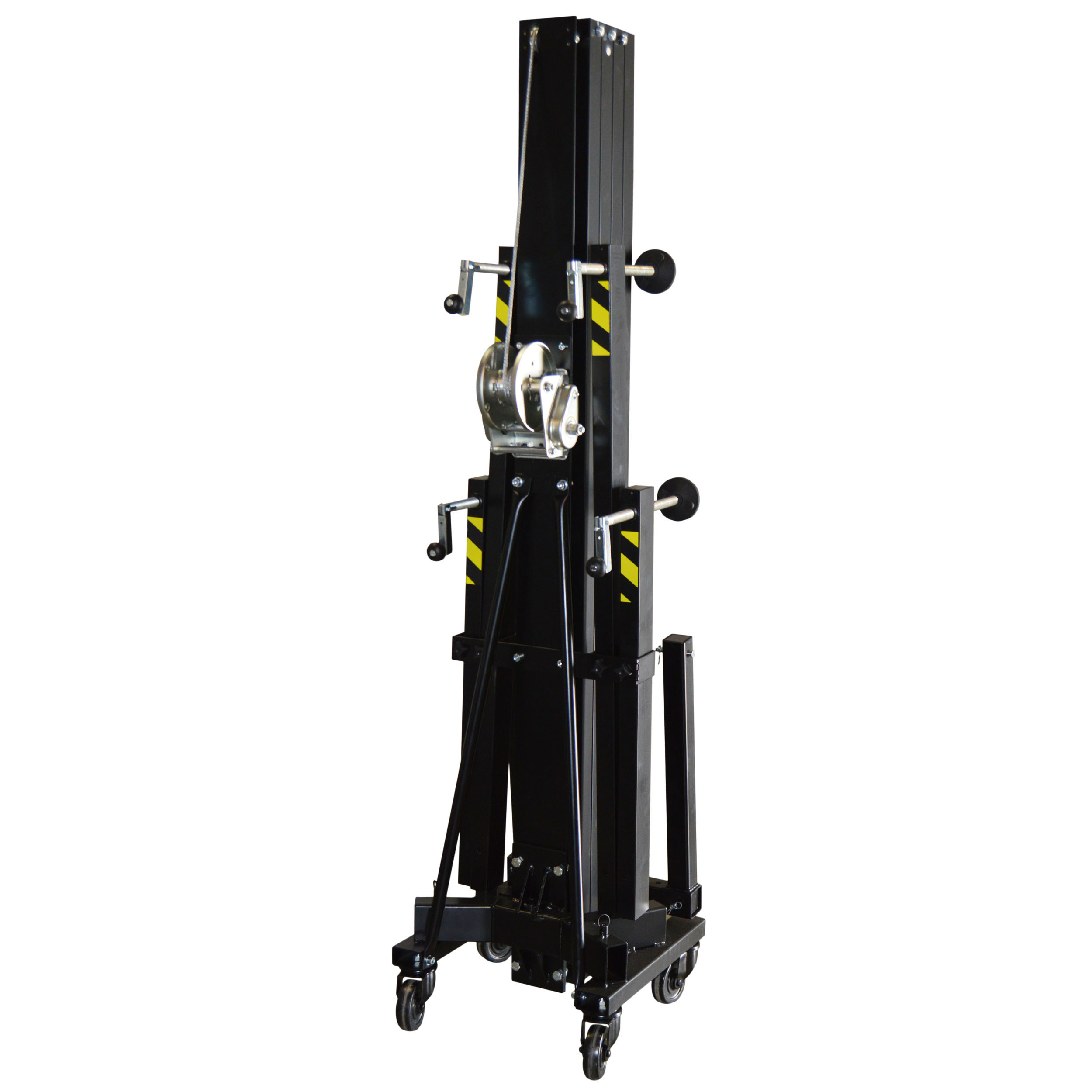

The ProX XT-AT06B Fexix Rigging tower Frontal loading lifting tower allows raising the load from the floor, avoiding any single effort and specially designed for a reliable lifting of Line Array Systems of up to 250 kg (550 lbs) to a maximum height of 6.5 meters / 21.30 Ft. This product is perfect to fly line array systems, trusses and LED screens. The compact design with castors gives the XT-AT06 Rigging tower easy handling and maneuverability, reducing storage space and it is the ideal solution for touring, rental and event production (concerts, events, trade fair stands, stage construction, fitting-out discos, theaters, broadcasting, TV, etc.).
FENIXStage with 20 years of experience is the manufacturer of lifting towers in Valencia Spain, offers innovative high-end quality, reliable and efficient products to all customers worldwide. ProX Live Performance Gear is a distributor of Fenix Lifting Towers in the USA. The XT-AT06B Meets strict European standards. Certified to current standards (EC 89/392 EWG) (BGV C1, BGG 912)
These stacking trusses, manufactured with extruded aluminum (Alloy: EN-AW according to 6082 T6) and TIG welded (continuous cord for a maximum resistance), are specially designed to be piled up, reducing storage space and making it easier to handle.
During lifting, the tower telescopic mechanism lift can stop safely at any of the PLS (Pin Locking System) positions. These pins take the load off the wire rope. The steel base provides great stability when the adjustable screw-jacks are well balanced and the bubble level on the base provides accurate leveling.
Polyamide plates: This raw material offers more resistance than metal and it is wear-free. It resists temperatures between -50A?C and +50A?C.
Safety pins: Safety pins avoid the load from falling. Besides, they allow selecting different heights, raising all bars equally and distributing the load from the mast to the last bar, which extends the tower's lifetime and increases its stability.
Level: The new location of the level helps you stabilize the tower more comfortably and accurately.
Reinforced base: All our towers use a reinforced base that supports heavy loads and high heights.
Ring: It enables fixing cables to any surface or fixed object, increasing its stability in strong wind conditions.
Roller system: It allows transporting the tower horizontally.
Winch: Our winches are manufactured by the best quality companies with recognized prestige. Resistant and durable. All of them are oversized for extra safety and a better pulling of the cable.
Fixing: Prevents the carriage from moving during transportation.
Safety pendulum: Frontal loading models include this safety internal system that blocks the tower in case the cable breaks or is cut.
• Design to fly line array systems, trussing and LED screens
• Made of great components to ensure maximum safety
• Raise the load from the floor.
• Minimum Height - 1,97 meters / 6.50 Feet
• Max Height - 6,50 meters / 21.30 Feet
• Max Load - 250kg / 550 lbs
• Winch - 900kg / 1,900 lbs
• DEKRA and CE Certified
• XT-AT06B is Made by Fenix Lifting Tower in Valencia Spain.
Dimensions: 19.00"L x 19.00"W x 77.00"H
Weight: 236.00 lbs
Related Accessories:
• ProX XT-AC552 Fenix Rotating Stand for Truss Fits XT-AT06 Lifting Tower
• ProX XT-AC569 Silver TBar for Fenix XT-AT06 Line Arrays systems
• ProX XT-AC569 Black TBar for Fenix XT-AT06 Line Arrays systems
