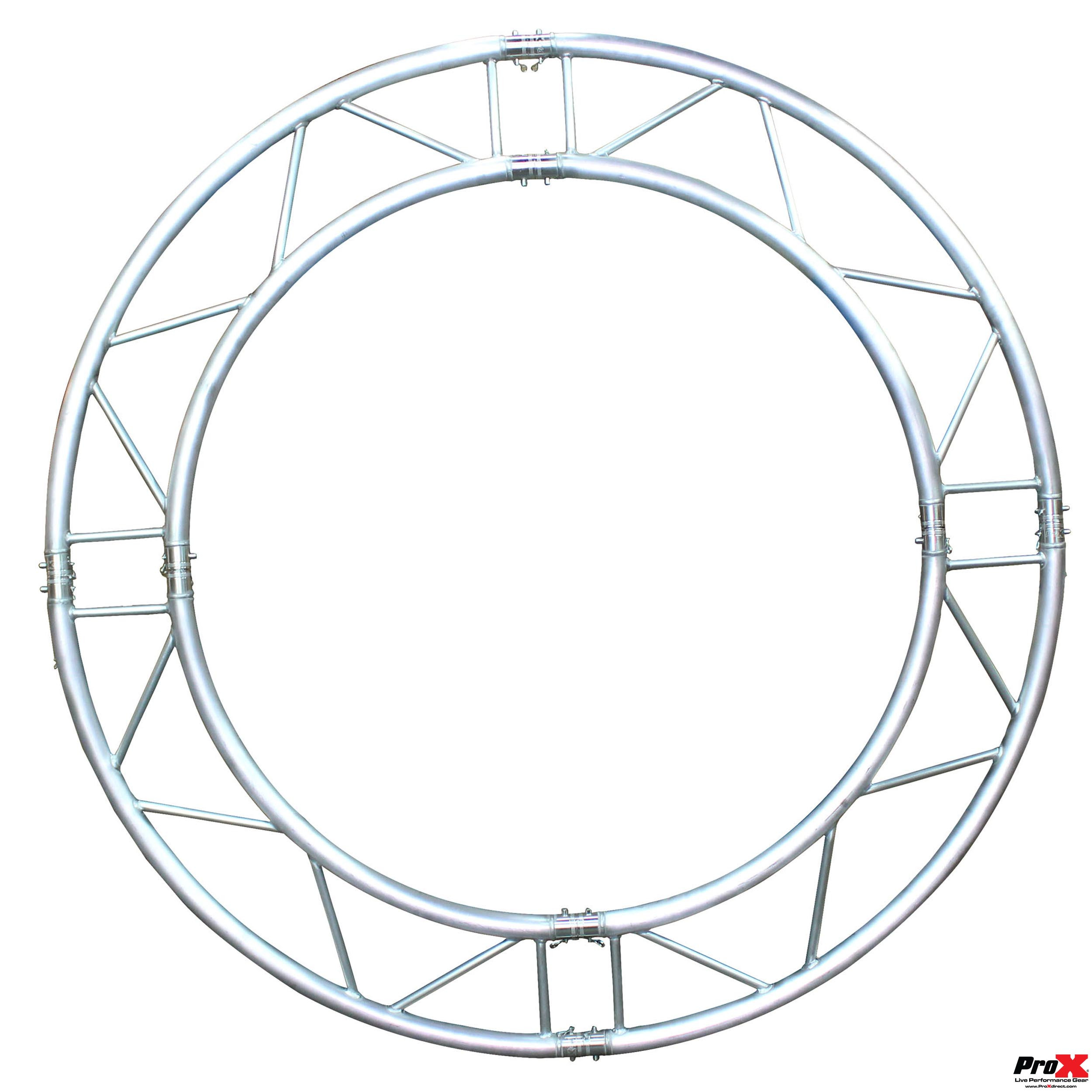

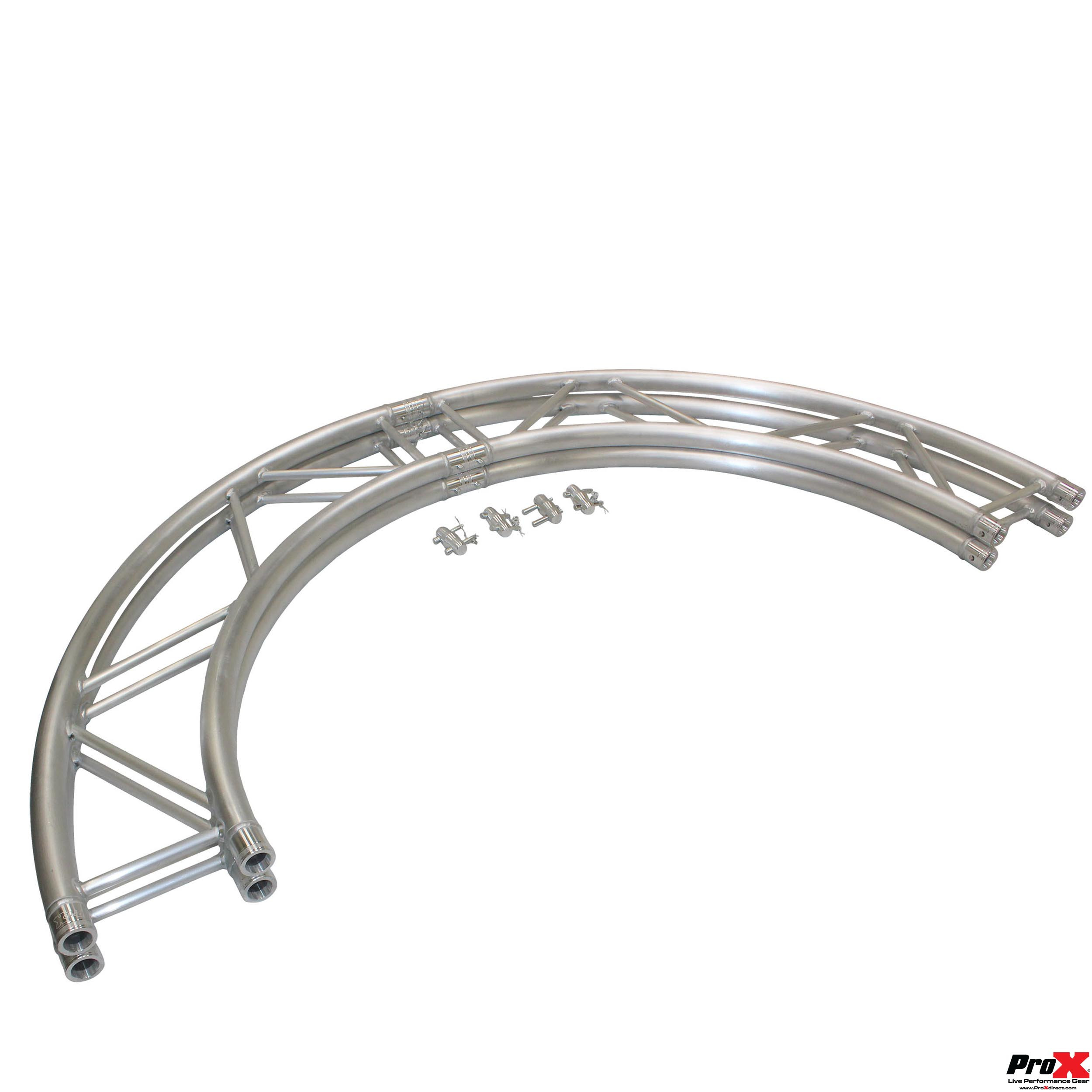

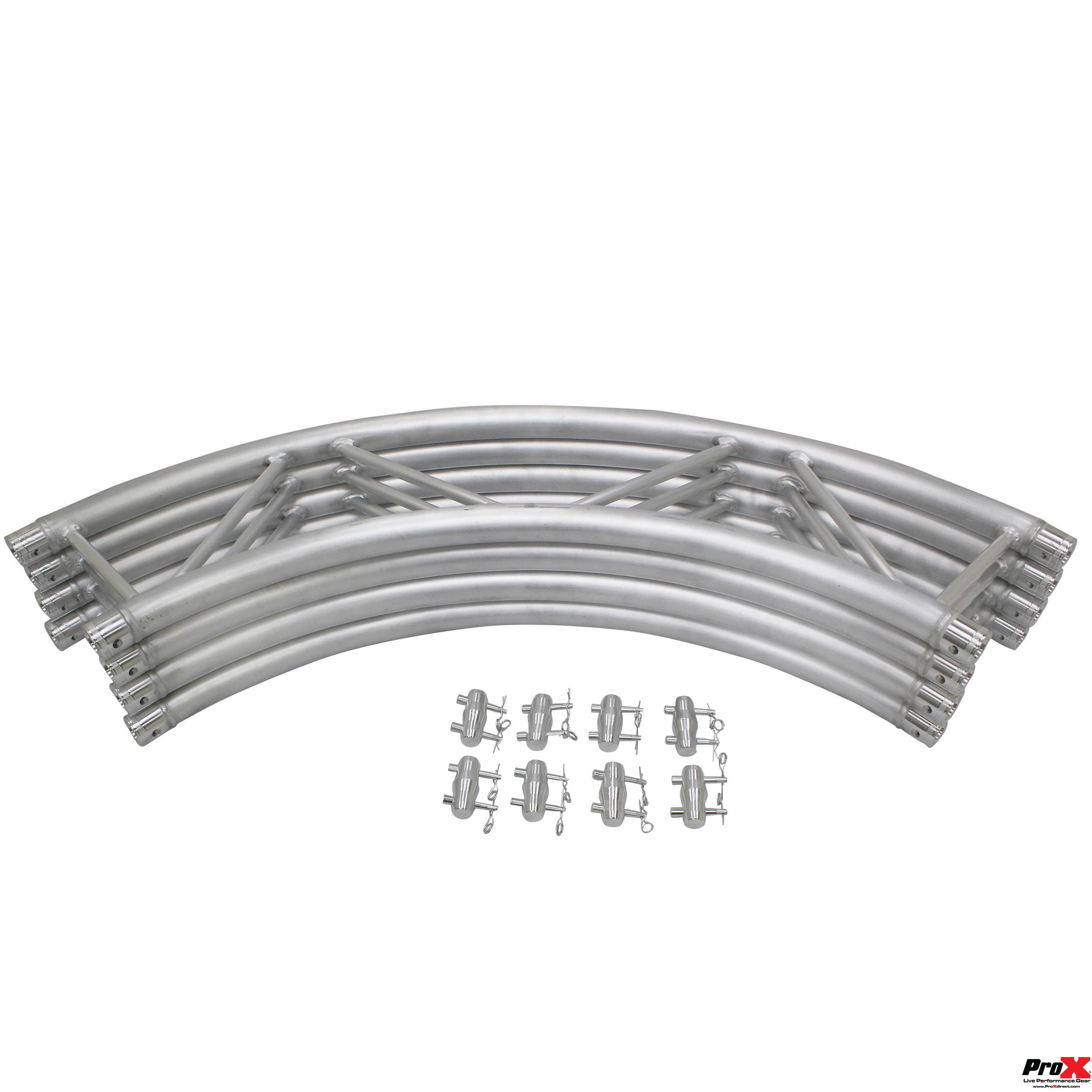

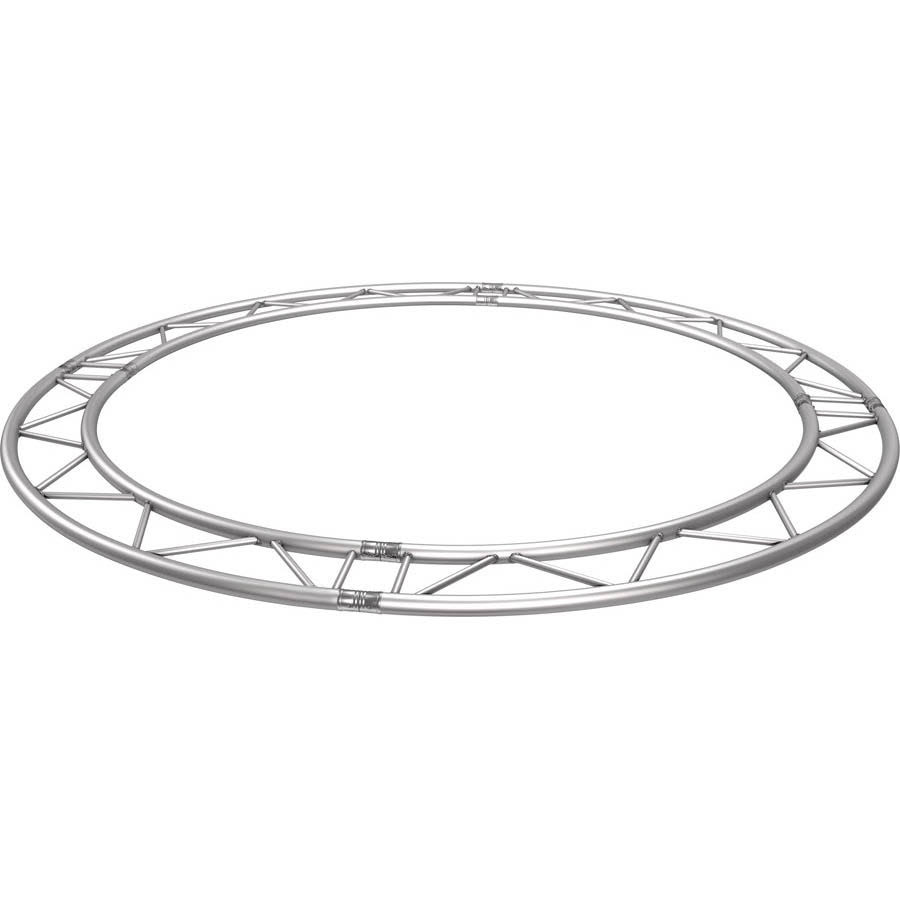

ProX XT-CH984-4X90 Flat I-Beam Circular Truss (4 Segments), 9.84FT (3m)

In addition, F32 I-Beam trussing is much easier to transport as you can put 6 pieces of F32 in the place of one F34 piece.Truss domes, truss circles and stages with round roofs have one thing in common, geometric shapes are always a visual highlight. When used as illuminated banner frames, truss circles attract the attention of visitors and highlight your ad, logos or features.

ProX Truss has one of the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.

At the heart of the system is an I-Beamtruss that utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.

• Tolerance Free Standard Conical connector
• Main tube wall thickness of .08in / 2mm
• Constructed to the highest safety ratings by certified welders

XT-SQ SERIES DIMENSIONS:
• Main Tube: 2in / 50mm
• Braces: .75in / 20mm / 3/4"
• Material: EN-AWT6 6082 Aluminum
• Includes connecting hardware set.

Features
• Manufactured to Exacting Specifications in our Own Factory!
• 3.0M (9.84ft) Horizontal Circle(4 x 90 sections)
• Outside Width: 118.11in / 300cm
• Inside Width: 95.28in / 242cm
• Height: 2in / 50mm
• Width: 11.42in / 290mm
• Weight: 5.0 lbs/ft / 7.0/m
• Main Tube: 2in / 50mm
• Braces: .75in / 20mm
• Wall Thickness: 2mm
• Material: EN-AWT6 6082 Aluminum

To Fit:
F32 I-Beam Truss

Dimensions: 118.11"L x 118.11"W x 2.00"H
Interior Dimensions: 95.28"L x 95.28"W x 2.00"H
Weight: 47.62 lbs
