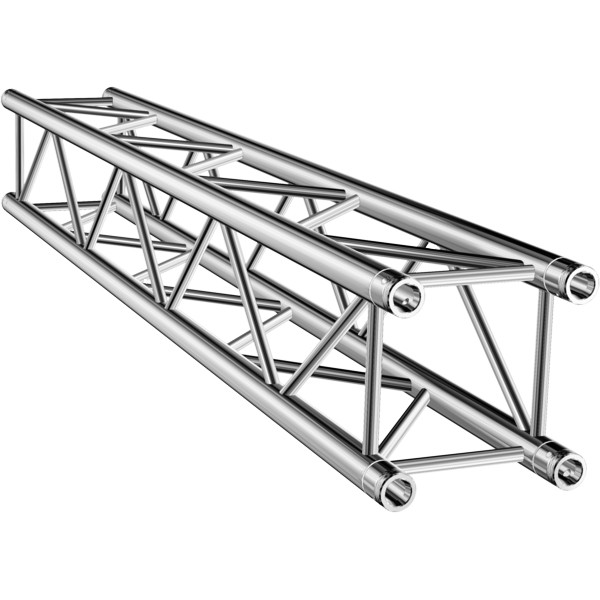

ProX XT-SQ715 7.15ft (2.15m) Square Truss Segment

At the heart of the system is square truss that utilize a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.

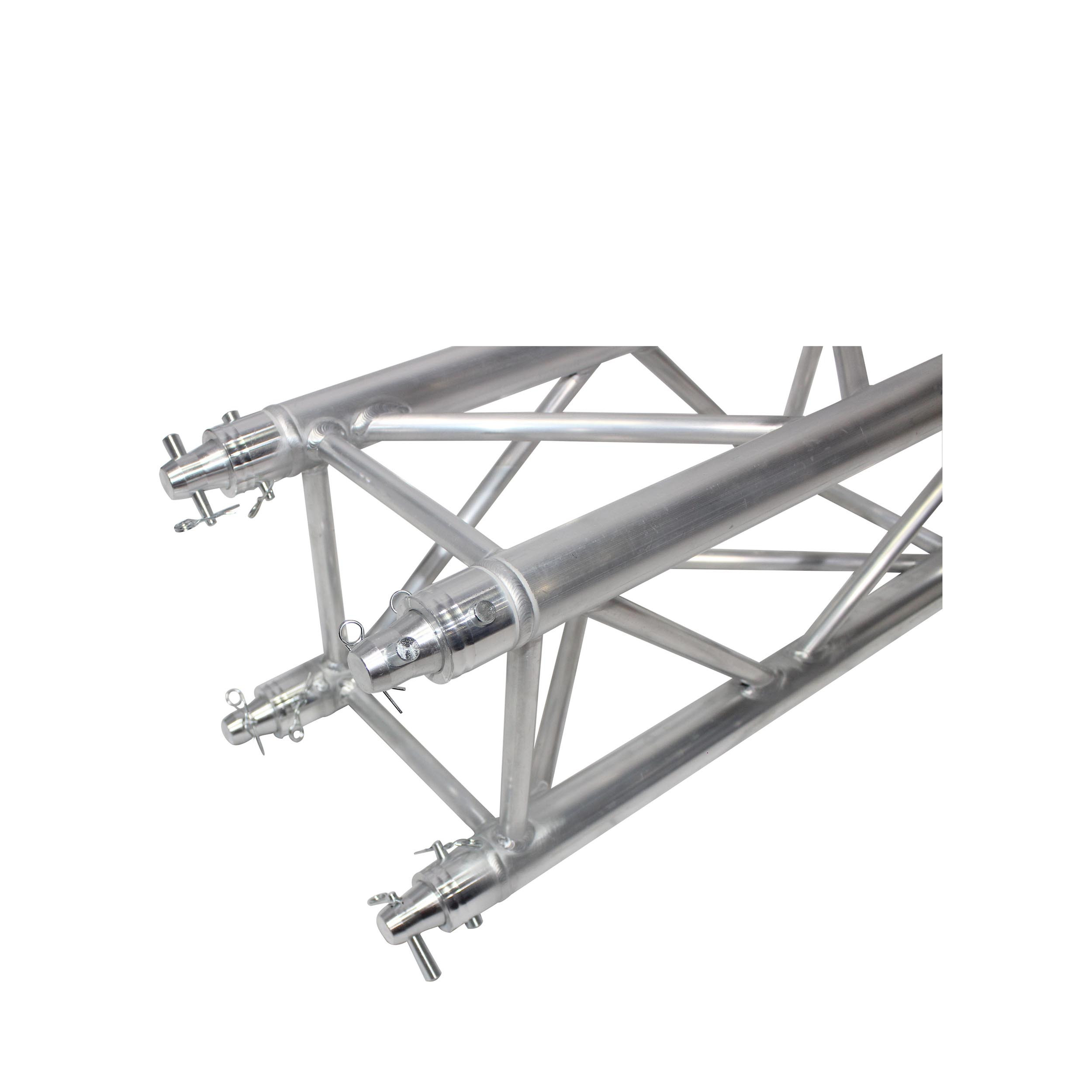

• Tolerance Free Standard Conical connector


• Main tube wall thickness of .08in / 2mm


• Constructed to the highest safety ratings by certified welders

XT-SQ SERIES DIMENSIONS
Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 5.0 lbs/ft / 7.0/m
Main Tube: 2in / 50mm
Braces: .75in / 20mm
Material: EN-AWT6 6082 Aluminum

7.15ft (2.15 Meters) Square Truss Segment
Outside: 290mm - 11 7/16"
Tubing: 2"
Bracing: 3/4"
Includes connecting hardware set.

All ProX Truss products are 100% compatible to connect along with many other manufacturers.
