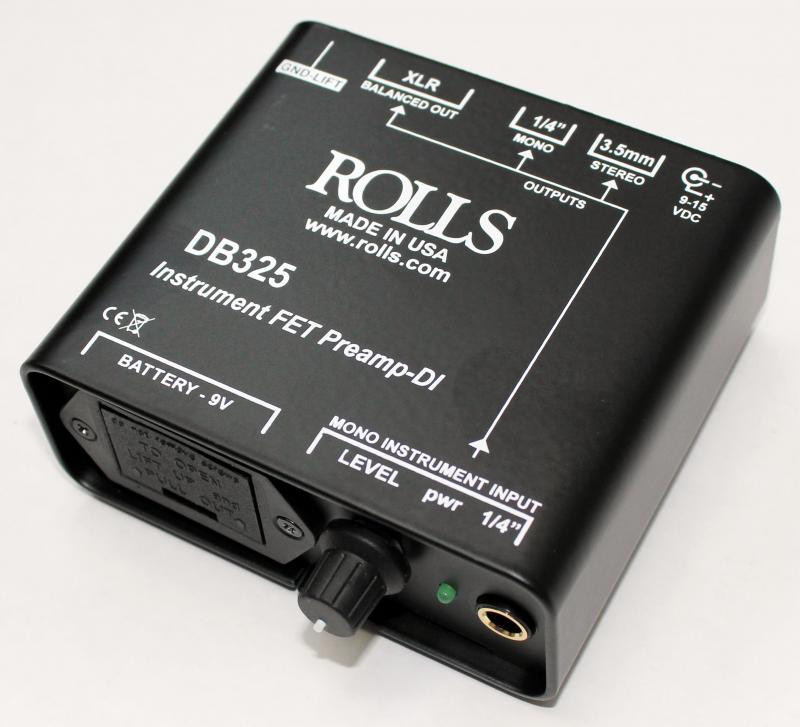

DB325 is an instrument active (powered) direct box. It is designed to take a guitar, bass or keyboard and plug it directly into a computer, laptop or tablet. It can also be used to boost the signal of an instrument to be plugged in to just about anything. It is a cleanly designed simple, high end all class A way to get your instrument into different devices. Works great with piezo pickups. It will also work to add more gain to you guitar tube amp.
Features• Mono 1/4" Input with level control.
• 3.5mm (Stereo) and 1/4" (MONO) outputs.
• XLR Balanced output.
• 9V Battery or Included AC adapter operation.
• Class A Design no feedback.
Specifications• Input Impedance : 4 Meg Ohms
• Frequency Response: 20 - 20kHz +/- 3 dB
• Output Impedance: 1K (XLR 600 Ohms)
• Max Output Level: +8 dBm (XLR -12 dBm)
• Max Input Level: -13dB
• Gain: 20 dB, (XLR 0 dB)
• Signal To Noise: 106 dB
• THD: < .570%
• Weight: 1.1 lbs.
• Dimensions: 4" w x 1.625" h x 3.5" d
• Connectors: 1; XLR Female 1; 1/8" (3.5mm) TRS 2 ea; 1/4" TS
