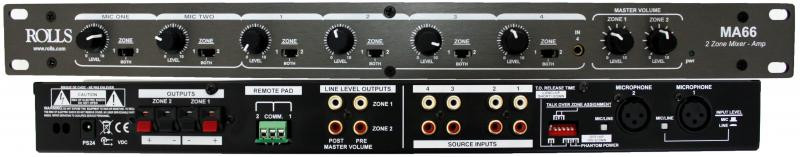

The MA66 is a 2 Zone mixer with a 20 watt per Zone power amplifier built in. The amp section is class D design so it does not generate any heat to the chassis, it can be used in any application. Including Phantom power, talk over that is zone assignable, and an assignable release time for the talk over circuit.
With six inputs (2 mic/line XLR and 4 RCA) and an 1/8" jack on the front panel the MA66 has plenty of input capability to satisfy almost any installation. The output section of the MA66 has 20 watts per Zone (40 watts total) that is all class D design. The MA66 also features RCA main outputs. We have also included a remote pad for both zones so you can run an external pad control to any location. The MA66 is easy for anyone to use from the front, but from the rear it is just complex enough it will fill even the most demanding installation requirements. With the included external power supply the MA66 has just about every approval known to man so you can spec it in almost any installation.
Two Zone Outputs
Two XLR Microphone Inputs
Individual switchable phantom power
Four RCA and one front panel 3.5mm stereo inputs
RCA Outputs
20 + 20 Watt Power output
Specifications
Input Impedance: Mic: 600 Ohms XLR balanced Source: 22K Ohms RCA
Max Input Level: Mic: -14 dBV Mic level RCA: +24 dBV
Total - In/Out Connectors: 2: XLR, 6: Stereo RCA, 1: 3.5mm
Phantom Power: +15 VDC
RCA Output Level: +17 dBV max (impedance 1K Ohm)
Output Power: 20 Watts @ 4 Ohms/Per Zone 12 Watts @ 8 Ohms/Per Zone
Max Gain: Mic: 70 dB Source: 30 dB
Noise Floor: - 80 dB, THD: <.025%
S/N Ratio: 96 dB
Power Output: 20 Watts X 2 (4 Ohms)
Voltage Gain: 32 dB
Maximum Supply Voltage: 30 VDC
THD: .05% typical
EIN: 3 mV
Efficiency: 85%
Bandwidth: 20Hz - 25 kHz
Size: 19" x 1.75" x 5"
