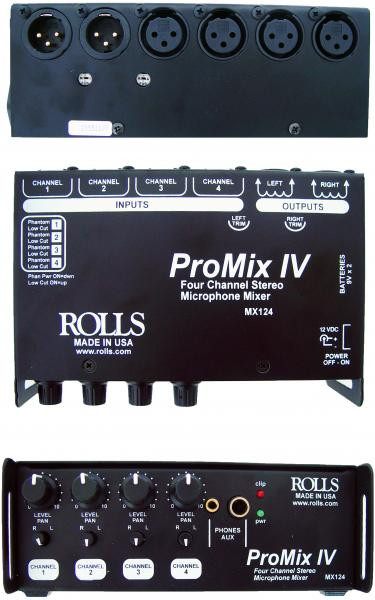

The MX5124 Pro-MixIV mixes 4 microphones into two transformer balanced outputs. It has three XLR inputs, each with individually switchable phantom power, and Low Cut switches, a Level control, and a Pan control. As mentioned, it has two transformer balanced, XLR outputs. A 1/4 inch Aux/Headphone output has been provided along with a Clip indicator, Power indicator, and Power switch. The unit is also powered by two 9-Volt alkaline batteries.
• Mixes four microphones to stereo XLR outputs.
• Output level controls for mic or line-level output.
• Transformer isolated outputs.
• Phantom Power and Low-Cut switches for each Mic input
• Battery and AC powered.
• 1/4" and 1/8" TRS stereo Phone/Aux Outputs
Input Impedance: 600 Ohms
Output Impedance: XLR 600 Ohms
THD + Noise: .02%
S/N Ratio: 84 dB
Frequency Response: 25 Hz - 16 kHz (+0 / -3 dB)
Max Output Level: + 14 dB
Max Input Level: -14 dB
Max Gain: +55 dB
Low Cut: -3 dB @ 100 Hz
Current Draw: 30 mA
Phantom Power: +18 VDC
Connectors: 4 Female XLR, 2 Male XLR, 1 1/4" TRS, 1: 1/8" (3.5mm)
Power: 9V alkaline batteries X 2, DC Power Jack (5.5 X 2.1 mm tip negative) for Rolls PS27 (included)
Size: 6.3"w x 3.7"d x 2.3" h
Weight: 1.5 lbs.
