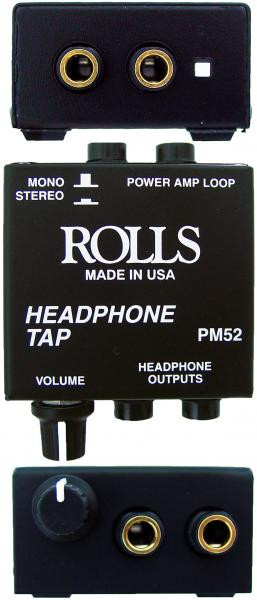

The PM52 is for connecting headphones to a speaker line. The 1/4" Mono/stereo loop jacks are for connecting many boxes in series. There are 2 headphone jacks and volume control. The PM52 uses the speaker line signal for power, and uses no batteries.
• Converts speaker level signals to headphone level
• Mono/Stereo mode
• Power Amp loop through
• No external power or batteries required.
• Hookup www.rolls.com/apps/pm52connect.jpg
SpecificationsPLEASE NOTE: THE PM52 REQUIRES A MINIMUM OF A 10 WATT AMPLIFIER TO FUNCTION PROPERLY.
Input Impedance: 150 Ohms
Size: 2.25" x 2.5" x 1.25" (5.7 x 6.3 x 3.2 cm)
Weight: 1lb (.45 Kg)
