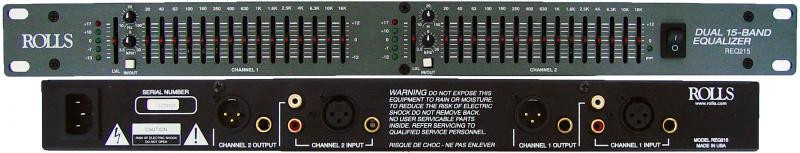

Rolls REQ215 Dual 15-Band Graphic Equalizer

Dropships Ships Directly From The Supplier
Free Shipping FREE Ground Shipping to the contiguous U.S. (details)
VIP Price:
rolls req215
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

The REQ215 Dual Band graphic equalizer is designed for modern sound reinforcement applications. Smooth band-pass filtering and transparent low-noise circuitry provide virtually distortion free operation.

• Standard ISO Frequency Centers
• Adjustable Hi/Low Shelving Filters
• XLR, 1/4" and RCA Inputs and Outputs

Frequency Response: 16 Hz to 30 kHz +/-3 dB
THD: <.03%
S/N Ratio: >90 dB
Max Input: +17 dB
Max Output: +17 dB
Input Impedance: 10K Ohms (20K balanced)
Output Impedance: 50 Ohms
LED Levels: +17, +10, 0, -7, and -13 dB
Frequency Centers: 15 ISO standard 2/3 octave +/-5%
Shelving Slope: 6 dB / Octave
Size: 19" x 6" x 1.75" (48.3 x 15.2 x 4.5 cm)
Weight: 5 lbs. (2 kg)
