The PSM 700 series offers advanced controls and features that make it easy to quickly locate and lock in the clearest frequency, prevent distortion and minimize the number of antennas required to send mixes. All systems and wireless bodypack receivers are available with E5 Dual-Driver or E1 Single-Driver Earphones.

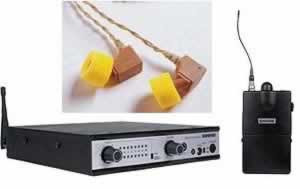

SYSTEM INCLUDES:* P7T Wireless Transmitter
* P7R Wireless Bodypack Receiver
* E1 Single-Driver Earphones
P7T FEATURES:* Internal power supply
* 1/2 rack space
* Remotable/combinable antennas
Operating Controls:
* Input level knob
* Operating mode (Stereo, Mono, MixMode)
* Earphone volume knob
* Channel selector
* Group select swith
LED Indicators:
* 8-segment input level
* Frequency group
Inputs:
* (2) line-level XLR-1/4" TRS combos
Outputs:
* (2) 1/4" TRS loop outs
* Local earphone monitor
P7R FEATURES:* Frequency locator
* Dynamic overload protection
* Rugged metal chassis
Operating Controls:
* Operating Mode (Stereo, Mono, MixMode)
* Volume knob
* Balance knob
* Defeatable limiter
* High-frequency boost
* Channel selector
* Group select switch
LED Indicators:
* Power
* RF reception
* Low battery
E1 FEATURES:In Ear, high-fidelity sound and great isolation from outside noise.
Specifications:
* Transducer Type: low mass/high energy
* Sensitivity (at 1 kHz): 113.5 dB SPL/mW
* Impedance (at 1 kHz) 29 ohms
* Output Connector: Gold-plated stereo, 3.5 mm (1/8-inch) phone plug
* Cable Length: 1.52 m (60 in.)
