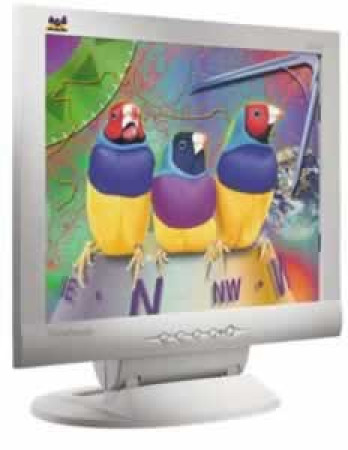

SPECIFICATIONS:• Type 15" color TFT active matrix XGA LCD
• Display Area 12.0" (horizontal) x 9.0" (vertical); 15.0" diagonal
• Optimum Resolution 1024x768
• Brightness 250 nits cd/m 2 (typ)
260 nits cd/m 2 (max)
• Contrast Ratio 400:1 (typ)
• 450:1 (max)
• Viewing Angle 120 horizontal, 110 vertical
• Response Time 30ms (typ)
• Light Source Long life, 50,000 hrs. (typ)
• Panel Surface Anti-glare
• INPUT Analog RGB analog (75 ohms, 0.7/1.0 Vp-p)
Frequency Fh:3062kHz, Fv:5075 Hz
Sync H/V separated (TTL)
• COMPATIBILITY PC PC compatible (from VGA up to 1024x768 non-interlaced)
Mac* Power Mac G3/G4 up to 1024x768 (*Adapter may be required. Analog adapter available from ViewSonic.)
• CONNECTOR Analog 15-pin mini D-sub integrated
Power 3-pin plug (IEC320)
• POWER Voltage 100-240V AC (auto switch), 50-60Hz (+/- 3)Hz
Consumption 30W (typ)
• CONTROLS Basic Power (soft), 1, down, up, 2
OnView Auto image adjust, contrast, brightness, color adjust (9300K, 6500K (default), 5400K, user color), information (mode, model number, serial number), manual image adjust (H. size, H. position, V. position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout), memory recall
• OPERATING CONDITIONS Temperature 32-104F (0-40C)
Humidity 10-90% (no condensation)
• DIMENSIONS (WxHxD) Physical 356mm x 200mm x 344mm; (14.0" x 13.5" x 7.9")
• WEIGHT Net 8.1 lbs (3.7 kgs.)
Gross 9.9lbs. (4.5kgs.)
• REGULATIONS UL, cUL, FCC-B, CB, CE, IC-B, EPA, NOM, TUV/GS, VCCI, BSMI, PSB (S-MARK), EMI/B, MPR-II, NEMKO, SEMKO, DEMKO, FIMKO, TCO'99(VE155), TCO'95(VE155b), ISO13046-2, ENERGY
• POWER MANAGEMENT Meets TCO '99 and ENERGY standards
• WARRANTY Three-year limited warranty on parts, labor and backlight.
