Yamaha EMX62M 6 Channel Powered Mixer

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

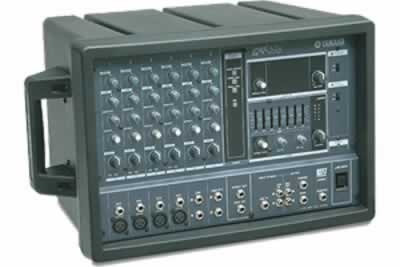

yamaha emx62m
Solo performers and public speakers who need a really clean, simple system that gets the job done without getting in the way will appreciate the EMX 62M.

With six flexible input channels, high-quality effects, 7-band graphic EQ, and a solid 200-watt mono power section, the EMX62M offers all the creative control and power you need for small shows and events.

The EMX Powered mixers may be designed for convenient, easy operation, but that doesn't mean that basic quality and performance are compromised in any way. In fact, they inherit technology from the acclaimed Yamaha PM3500 and PM4000 sound reinforcement mixing consoles - staples in the professional reinforcement field worldwide. Yamaha expertise and technological innovation is even at work in the details that deliver subtle but vital improvements in the overall sound: superior RF (Radio Frequency) rejection and exceptionally clean, transparent head amplifiers are just two examples.

The Power Amplifier:
High power alone is simply not enough. At any power level the amplifier's output must remain an accurate, uncolored image of the original input signal. That demands much more technological finesse than simply building a bigger amp. In addition to totally clean, natural power, the EMX power amplifiers feature Yamaha's unique EEEngine technology for extremely efficient operation with significantly reduced AC power consumption and heat generation - factors that contribute to the lineup's light weight and compact dimensions as well.

Digital Effects:
Yamaha is no newcomer to the field of digital signal processing. Our professional outboard effect units and the effects built into our renowned digital mixing consoles set the standards for the industry. The EMX-series powered mixers benefit from the same cutting-edge technology. The EMX68S, EMX88S, and EMX5000 models, in particular, feature SPX digital effect technology with 24-bit AD/DA conversion and 32-bit internal processing . The EMX effects are more than mere "extras". They are professional-quality effects that can contribute to your sound in many important ways.

TECHNICAL SPECIFICATIONS:
• Maximum Output Power
@0.5% THD at 1kHz 200W/4ohms
135W/8ohms
• Input Connectors CH1-4: XLR and TRS Phone
CH5, 6: 2 TRS Phone
• Channel Inserts -
EQ (MONO CH) HIGH 10kHz Shelving
LOW 100Hz Shelving
• AUX SENDS 2 (1MONITOR, 1EFFECT)
Phantom Power +15v
Graphic Equalizer 7 band (125, 250, 500, 1k, 2k, 4k, 8k Hz)
• Digital Effects 3 programs
VOCAL REVERB
LARGE HALL
SMALL HALL
• Power Amp. Mode Main
• Meters 5 points (MAIN)
• Yamaha Speaker Processing YES
• Foot Switch Effect On/Off
• Dimensions (W H D) 18 15/16" x 12" x 12 7/8"
• Weight 26.5 lbs.
• Power Requirements / Consumption 120V AC 60Hz 110W

Additional Information

UPCN/A
SKUEMX62M
ManufacturerYamaha
Product ConditionNew - On Clearance
ReturnableNo
