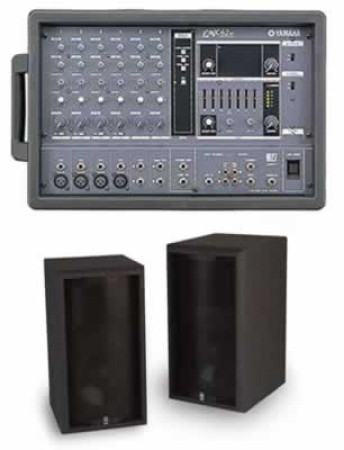

Solo performers and public speakers who need a really clean,simple system that gets the job done without getting in the way will appreciate the EMX 62M Bundle. The AS108II is a pair of 8", two-way acoustic suspension loudspeakers.
BUNDLE INCLUDES:• EMX62M Mixer
• (2) AS108II
The Mixer: The EMX Powered mixers may be designed for convenient, easy operation, but that doesn't mean that basic quality and performance are compromised in any way. With six flexible input channels, highquality effects, 7-band graphic EQ, and a solid 200-watt mono power section, the EMX62M offers all the creative control and power you need for small shows and events.
The Power Amplifier: High power alone is simply not enough. At any power level the amplifier's output must remain an accurate, uncolored image of the original input signal. That demands much more technological finesse than simply building a bigger amp. In addition to totally clean, natural power, the EMX power amplifiers feature Yamaha's unique EEEngine technology for extremely efficient operation with significantly reduced AC power consumption and heat generation factors that contribute to the lineup's light weight and compact dimensions as well.
Digital Effects: Yamaha is no newcomer to the field of digital signal processing. Our professional outboard effect units and the effects built into our renowned digital mixing consoles set the standards for the industry. The EMX-series powered mixers benefit from the same cuttingedge technology. The EMX68S, EMX88S, and EMX5000 models, in particular, feature SPX digital effect technology with 24-bit AD/DA conversion and 32-bit internal processing . The EMX effects are more than mere "extras". They are professional-quality effects that can contribute to your sound in many important ways.
Rack Mounting and Efficient Forced-air Cooling:,The Mixer
The EMX Powered mixers may be designed for convenient, easy operation, but that doesn't mean that basic quality and performance are compromised in any way. In fact, they inherit technology from the acclaimed Yamaha PM3500 and PM4000 sound reinforcement mixing consoles staples in the professional reinforcement field worldwide. Yamaha expertise and technological innovation is even at work in the details that deliver subtle but vital improvements in the overall sound: superior RF (Radio Frequency) rejection and exceptionally clean, transparent head amplifiers are just two examples.
The Power Amplifier:
High power alone is simply not enough. At any power level the amplifier's output must remain an accurate, uncolored image of the original input signal. That demands much more technological finesse than simply building a bigger amp. In addition to totally clean, natural power, the EMX power amplifiers feature Yamaha's unique EEEngine technology for extremely efficient operation with significantly reduced AC power consumption and heat generation factors that contribute to the lineup's light weight and compact dimensions as well.
Digital Effects:
Yamaha is no newcomer to the field of digital signal processing. Our professional outboard effect units and the effects built into our renowned digital mixing consoles set the standards for the industry. The EMX-series powered mixers benefit from the same cuttingedge technology. The EMX68S, EMX88S, and EMX5000 models, in particular, feature SPX digital effect technology with 24-bit AD/DA conversion and 32-bit internal processing . The EMX effects are more than mere "extras". They are professional-quality effects that can contribute to your sound in many important ways.
Rack Mounting and Efficient Forced-air Cooling:
With the exception of the largest model in the lineup the 20-channel EMX5000-20 all models can be rack-mounted using an optional rack-mounting kit* for optimum integration with any system or installation. in addition to the mixers' physical configuration, this is made possible by a highly efficient fan cooling system that ensures reliable, stable operation under just about any environmental conditions.
Stand-by Mode:
Another feature that illustrates Yamaha's sensitivity to the needs of the working musician is the Stand-by switch included on all stereo models: when you're done with a set simply engage the stand-by mode to mute all mono channels while leaving the 2-track inputs (and stereo channels on the console types) active for BGM playback while you're off stage.
Power Amp Mode Selector:
All models except for the single-amp EMX62M feature power amp mode selector switches so you can configure the amp channels to suit a range of applications. The EMX5000 models, for example, offer four choices: Main (L) + main (R) to drive stereo house speakers, Mono + AUX to drive a mono house speaker system plus a mono monitor system, AUX1 + AUX2 to drive a monitor system while an outboard power amplifier drives the house, and Mono Bridge to deliver a whopping 1000 watts to a subwoofer. The LPF filter provided on the EMX5000- 12/20 outputs is also an ideal feature for subwoofer drive.
Yamaha Speaker Processing:
Yamaha Club-series speakers are fine performers in their own right, but with Yamaha Speaker Processing you get extra-smooth highs and enhanced lowfrequency output.
TECHNICAL SPECIFICATIONS:
• Maximum Output Power: @0.5% THD at 1kHz 200W/4ohms
135W/8ohms
• Input Connectors:
CH1-4: XLR and TRS Phone
CH5, 6: 2 X TRS Phone
• Channel Inserts -
EQ (MONO CH) HIGH 10kHz shelving
MID -
LOW 100Hz shelving
EQ (STEREO CH) HIGH -
MID
LOW
AUX SENDS 2 (1MONITOR,1EFFECT)
• Phantom Power: +15V
• Graphic Equalizer: 7 band (125, 250, 500, 1k, 2k, 4k, 8k Hz)
• Digital Effects: 3 programs
VOCAL REVERB
LARGE HALL
SMALL HALL
• Power Amp. Mode Main
• Meters 5 points (MAIN)
• Yahama Speaker Processing
• Foot Switch Effect On/Off
• Dimensions (W x H x D) 481.5 x 305 x 327.6 mm
(18-15/16"x 12" x 12-7/8")
• Weight 12 kg (26.5 Ibs.)
• Power Requirements:
/ Consumption UL/CSA model 120V AC 60Hz 110W
Australian model 240V AC 50Hz 110W
European model 230V AC 50Hz 110W
AS108II Speakers:
The cabinets are finished in a durable ACX textured coating that stands up to rough handling and exposure to the elements. Integral pole sockets allows easy stand or pole mounting for getting the sound out over the crowd. They use a long-travel, composite woofer with a butyl rubber surround and feature compression style tweeters, mated to 60 by 40 degree horns for long throw and smooth coverage.
FEATURES:
• Pole mount-able
• Durable and road-ready ACX spray finish
• Durable metal handle
• Twin 1/4" jack connectivity
• Ideally matched to Yamaha EMX powered mixers and P series amplifiers
TECHNICAL SPECIFICATIONS:
• Type: 2-Way acoustic suspension
• Drivers: Woofer 8" laminated long throw w/rubber surround
• Tweeter: 1" compression driver w/ 60(H) x 40(V) Horn
• Frequency Response: 55Hz-20kHz (-10dB)
• Sensitivity: (1W/1M) 88dB
• Power Handling Noise:* 70W
• Program: 140W
• Maximum: 280W
• Dimensions: (WxHxD) 10-3/8" x 16-3/4" x 13-7/8"
• Weight: 28 Lbs. (each)
