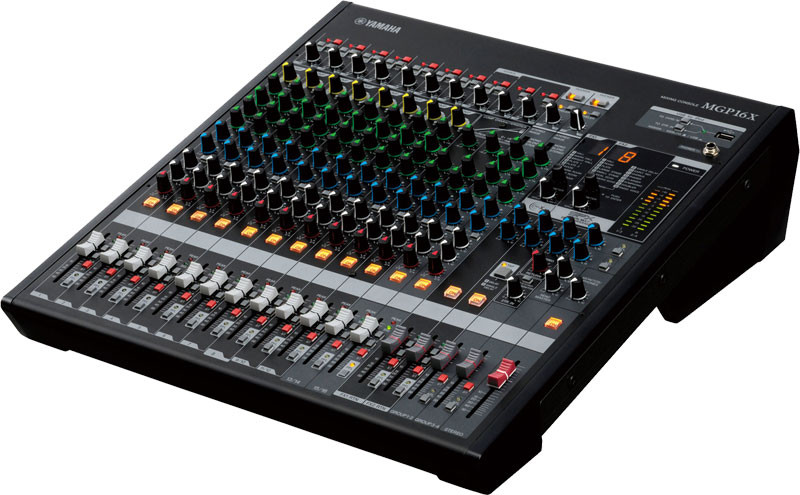

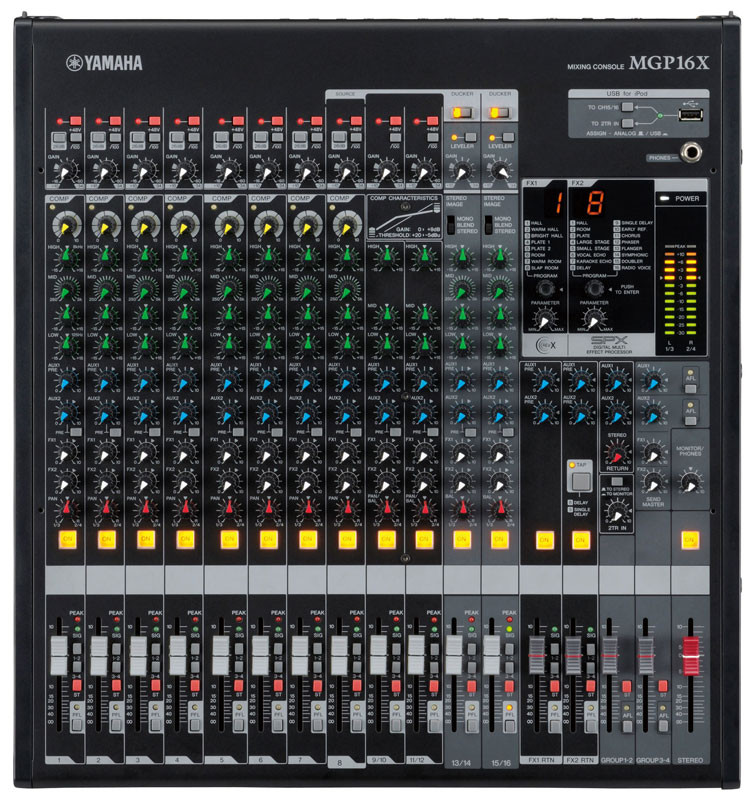

Yamaha MGP16X 16-Input, 4-Bus Mixer

• 10 Mic Inputs with 48V Phantom Power and HPF per Channel
• 16 Line Inputs (8 mono and 4 stereo)
• Additional 2TR Inputs Provided to Accept the Output from Analog Devices or iPod/iPhone
• 2 AUX Sends + 2 FX Sends
• 4 GROUP Buses + ST Bus

From the preamps, EQ and effects to the Hybrid Channel functions and iPod/iPhone connectivityevery aspect, every feature, every sound, establishes the MGP as a premium mixing console in a class of its own.

Mixing Capability
• Mixing channels: 16 Line Inputs (8 mono and 4 stereo)
• GROUP: 4 GROUP Buses + ST Bus
• AUX: 2 AUX Sends + 2 FX Sends
• Input channel functions:Compressor CH1-8,HPF(100Hz 12dB/oct), CH EQ(MONO) 15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-8,13-16)/ Low 125Hz shelving, CH EQ(STEREO) 15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH9-12)/ Low 125Hz shelving
• On-board processors: FX1:REV-X(8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control)

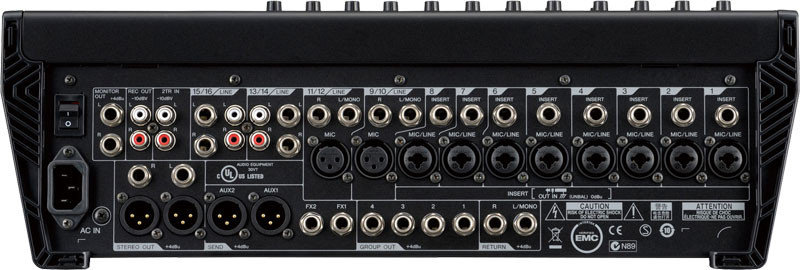

I/O
• Mic inputs: MIC: 10
• Phantom power: 48V phantom power per channel
• Line inputs: LINE: 8mono+4stereo, CH INSERT: 8, RETURN: 1stereo, 2TR IN: 1 stereo
• Digital I/O: USB Audio USB IN/OUT: iPod, iPhone exclusive

Yamaha MGP16X General Specs
• Total harmonic distortion: 0.02% (20Hz-20kHz@ +14dBu)
• Frequency response: +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
• Hum & noise level
- Equivalent input noise-128 dBu (20Hz-20 kHz, Rs=150O, Input Gain = Maximum)
- Residual output noise: -102 dBu (20Hz-20 kHz, Rs=150O, Input Gain = Maximum)
• Crosstalk: -74dB @ 1kHz
• Power requirements: 100-240V 50Hz/60Hz
• Power consumption: 55W max
• Dimensions: W447mm, H143mm, D495mm
• Net weight: 9.0kg
