Yamaha MSR800W 800W 15 Active Woofer

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

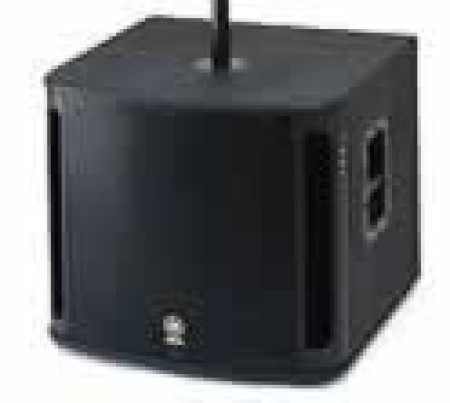

yamaha msr800w
Images may show accessories or configurations not packaged with this item.
The MSR800W powered subwoofer is the perfect companion for the MSR400, extending the low end and completing the musical spectrum for maximum punch and impact.

The high-quality birch plywood bass-reflex cabinet houses a 15" cone woofer powered by an ultra-efficient burst 800 watts amplifier, a configuration that can deliver the elusive 40 Hz through 120 Hz frequency range with precision and authority.

Two balanced XLR connectors are provided for connection to the source, and that same signal can be directly passed on to the main speakers via a pair of XLR "THRU" outputs. Alternatively, the main speakers can be fed by the MSR800W's dual "HIGH PASS" outputs, high-pass filtered at 80 Hz through100 Hz, depending on the setting of the cutoff frequency control, with a steep 18 dB/octave cutoff slope.

* Type Powered Subwoofer
* Overall Frequency Response 40-120 Hz
* Maximum SPL 122 dB (1 m)
* Dimension (W x H x D) 600 x 521 x 590 mm (23-5/8" x 20-5/8" x 23-1/4")
* Weight 45kg (99.1lbs)

* Components 15" cone
* Enclosure
Finish Bass-reflex Type
* Birch Plywood
* Black Sprayed

* Output Power 500W at 100Hz. THD =1%, RL = 8O
* Burst Power: 800W
* Input Sensitivity /Impedance +4dB/30kO
* Input Connectors XLR balanced (A&B)
* Output Sensitivity/Impedance +4dB/150O
* Output Connectors Input (ch-A & B): XLR-3-31 (balanced)
* THRU Out (ch-A & B): XLR-3-32 (balanced)
High Pass Out (ch-A & B): XLR-3-32 (balanced)
(100Hz, 18dB/oct, +4dB)
CUTOFF FREQ. Control: 80-100Hz (Variable),
* PHASE Switch: (NORM/REV), POWER Switch: ON/OFF
* Indicators Power ON: Green LED, Clipping: Red LED
* Power Requirment U/C: AC120V 60Hz
* Power Consumption 200W
