20-20kHz, THD N = 0.1%
350W per channel @ 8Ohms
450W per channel @ 4Ohms
1180W per channel @ 8Ohms Bridge

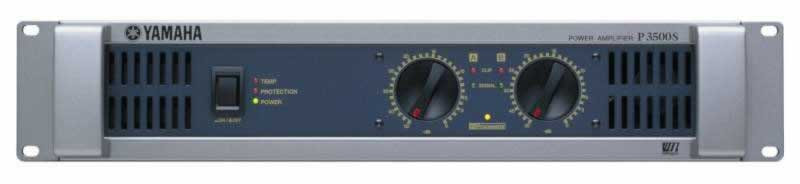

It features both XLR and 1/4-inch TRS inputs and Neutrik Speakon, phone plug, and 5-way binding post outputs to make connections quick and easy.
Other features include Yamaha's exclusive EEEngine technology which delivers high performance with exceptional efficiency, sweepable high and low pass filters for optimizing output to any loudspeakers, compact and durable 2U chassis, and variable speed cooling fans.
Big Output Power Delivered with Great Efficiency In a 4- ohm bridged application, the P3500S delivers 2000 watts. Those on a budget will find the amp's high power output and affordable price delivers higher quality without putting a strain on funds. Further savings are realized with extremely efficient operation utilizing Yamaha's exclusive EEEngine technology which keeps operational costs down by significantly reducing AC power consumption and heat generation.
The Perfect Match with Your Club Speakers The new P-Series Power Amplifiers can be used with any loudspeaker system, but if you're using our Club Series, they will provide power and performance tailored to deliver maximum performance from your system. In an 8-ohm stereo application power output per channel on the P3500S is 350 watts.
It is equipped with independent sweepable high and low pass filters on each channel so you can optimize output for subwoofer or full range systems to provide peak audio quality and performance from any speaker system you may be using.
Flexible Connectivity To provide the most flexible connectivity possible, this amplifier is equipped with Neutrik Speakon' output jacks, and 1/4-inch output jacks for each channel in addition to 5-way binding post. Channel inputs consist of both XLR and 1/4-inch TRS jacks.
Other Features The new P-Series' industrial design delivers a refined and impressive look with deep blue faceplates bordered in silver trim, handles, and mounts. The chassis is specially designed to provide added durability and strength. Continuously variable-speed fans mounted internally on either side of the front panel offer quiet, efficient cooling. Comprehensive protection consists of power on/off muting, DC detection, thermal protection, current limiting, and a protective cover for the attenuators is also supplied.
EEEngine EEEngine (Energy Efficient Engine) Technology makes more efficient use of AC power by reducing power consumption and heat generation without degrading output power or sound quality. When power requirements are low, the system uses a highly efficient current buffer to transparently switch input power on and off as needed. As power requirements increase, an independently responding auxiliary power line supplies additional power as required. Output isn't compromised, as the auxiliary power line is driven by the power supply voltage, which maintains maximum output to the speaker load.
YS Processing With YS Processing (Yamaha Speaker Processing), you get direct compatibility with our popular Club Series loudspeaker systems. This special circuit optimizes output from the power amplifier to match the characteristics of Club Series speaker systems delivering a signal that is precisely what the speaker requires. With the YS Processing system, extra-smooth highs and enhanced low frequency from your Club Series loudspeaker system is assured.
