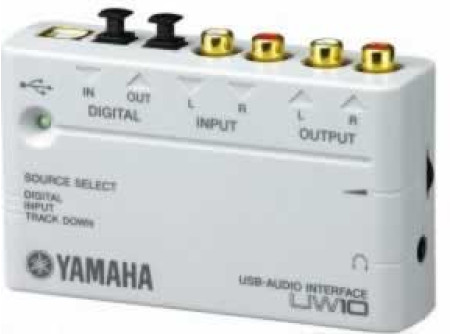

Yamaha UW10 USB Digital Interface

yamaha uw10
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable Discontinued or no longer available.
Sorry, this item is discontinued or no longer available from us. We've left this page up for reference only. Check out some of the other great alternatives on this page or click below to see if it can still be found elsewhere.
Buy on Amazon
The UW10 is a high quality, compact USB audio interface featuring stereo S/PDIF optical I/O, two RCA analog inputs and outputs and a headphone jack.

The UW10 is Windows 98, ME, XP compatible and uses ASIO drivers making it perfect for home and mobile recording applications.

The incorporated headphone amplifier provides quick and mobile monitoring. Includes Yamaha's unique trackdown mode and the TWEplus wave editor for audio editing and MP3 conversion.

• USB interface
• 4 Simultaneous inputs and outputs
• Optical S/PDIF inputs and outputs
• Headphone output
• ASIO Driver support
• Trackdown mode
• Windows 98, ME and XP compatible
• Includes TWEplus wave editor

• Audio Capability:
One stereo-line recording
One stereo-line playback
• Sampling Frequencies:
Input:32 kHz, 44.1 kHz, 48 kHz
Output:32 kHz, 44.1 kHz, 48 kHz
• Jacks and Connectors:
Digital in jack (optical)
Digital out jack (optical)
Line in jacks (RCA pin, L/R)
Line out jacks (RCA pin, L/R)
• USB connector
• Headphone jack (stereo mini)
• Power Supply: USB bus power supply
• Dimensions (approx.) (W x D x H): 4.37 x 2.6 x 1.22 in. (111 x 65 x 31mm)
• Weight: 2.09 lbs. (95g)
• Option: Optical digital cable (with optical plugs)

System Requirements:
Computer: IBM PC/AT or compatible computer that features a USB connector

CPU: Intel Pentium or Celeron processor with 500MHz or faster
(Windows XP: Intel Pentium or Celeron processor, 750MHz or faster)

Memory: 64MB or more (128MB or more recommended)

Available hard disk space: 10MB or more (excluding the space required for Acrobat Reader and MidRadio Player)

Operating System: Windows 98/98SE/2000/Me/XP
