Comprehensive Inputs and Outputs

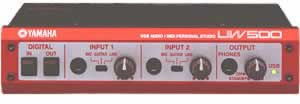

Simply plug a microphone, guitar, keyboard or just about any instrument or source into the three input sections of the UW500, and record you're singing and playing to the computer. The MIC/GUITAR/LINE switch on Inputs 1 and 2 makes this easy. A third input is reserved for line signals, such as a CD player. You've got convenient monitoring of your tracks with the front panel headphones jack or you can use a separate stereo system.
Optical digital in/out for recording
Connect a CD player to the DIGITAL IN terminal and record samples to the computer. Or connect a digital recorder (such as MD or DAT) to the DIGITAL OUT and mix down your musical creations in digital with no deterioration in sound quality.
Clean, detailed high-quality sound
The UW500 Personal Studio delivers stunning sound quality with built-in 20-bit A/D, D/A converters and selectable sampling rate (48/44.1/32 khz). Since it stands outside your computer and has a separate power source, the UW500 is free from any computer-generated noise or interference giving you absolutely clear, pristine sound!
All the software you need
Software programs included with the UW500 give you everything you need to lay down MIDI and audio tracks and edit them, too! The XGworks lite V3.0A Sequencer ties it all together letting you record and play back your MIDI and audio performances, while the TWE Wave Editor provides detailed editing for your audio data. The S-YXG50 SoftSynthesizer lets you play back your MIDI tracks within the computer with a 16-part multi-timbral XG tone generator.
Full multi-port MIDI control
The UW500 also has enormous flexibility as a MIDI interface. In addition to the conventional MIDI IN/OUT terminals, there is a special TO TG terminal for tapping into the full MIDI power of the UW500 2 MIDI ins and 6 MIDI outs. With a compatible tone generator, that gives you 32 channels in and 96 channels out!
High-speed, single-connection USB
The worldwide standard USB connection eliminates the need for multiple cables, letting you set up easily and instantly. It also provides high-speed data transfer both audio and MIDI to and from your computer. With USB, you can even connect to your laptop computer for a compact, super-simple system, and take your home studio with you wherever you go!
Track down to create your own MP3 files and CD tracks
This powerful feature lets you mix the audio generated by your MIDI tracks with your audio recordings. Normally, this process involves several pieces of outboard gear. Now with the Track Down function and the USB connection, you can do it all within your UW500- equipped computer. The MIDI data (in XGworks lite V3.0A) plays back voices on the S-YXG50 SoftSynthesizer, which are automatically mixed with your audio tracks on the UW500, and sent back to the computer to be saved as a single stereo audio file. It doesn't get any easier than that! Then, simply use your favorite MP3 encoder to create MP3 files, and put your new musical creations on the Internet. Or, with an optional CD-R recorder, burn your own CDs!
The Complete Package All the software you need to get your studio up and running!
Included with the UW500 Personal Studio is a full selection of comprehensive software, a sequencer, a "virtual" tone generator, and an audio editor.
XGworks lite V3.0A Sequencer
Recording your MIDI and audio performances
V3.0A then cut, copy and paste them, clean up the timing, and use the versatile editing tools to craft your final masterpiece. With all of the tracks in front of you on the computer monitor, editing is far easier than on a stand-alone hard disk recorder! Naturally, you can create various versions of your song, and save them all to disk.
The following functions for XGworks V3.0 are not available in XGworks lite V3.0A.
Voice to Score
Support for editing XG Plug-in Boards
A complete synthesizer right in your computer!
The amazing S-YXG50 SoftSynthesizer is the perfect addition to the UW500 Personal Studio and XGworks lite V3.0A. It's a full-featured, "virtual" synthesizer that uses the processing power of your computer to generate sound. Since the S-YXG50 is fully compatible with both GM and XG, you can tap into the wide variety of song software that's available and practice or play your guitar along with MIDI-generated backing tracks of your favorite music. There's a wide variety of MIDI songs commercially available at the Yamaha Virtual Shop.
TWE Wave Editor
Comprehensive, detailed audio editing on your computer!
The TWE Wave Editor puts a wealth of comprehensive audio editing features at your fingertips, and gives you the power to alter and enhance your audio recordings quickly and easily! Naturally, any audio you record such as your voice or your guitar playing, or even samples taken from MDs or CDs is fair game for editing. Then, bring the new audio into XGworks lite V3.0A and mix it with your MIDI tracks for complete, professional-sounding productions!
Yamaha USB-MIDI Driver
This driver software provides "plug and play" installation to your Windows computer. It also features a virtual patch bay from which you can instantly change the MIDI port assignments of the UW500 without having to re-patch any cables!
Making Tracks Lay down some blues with the UW500 and the included software!
Whether you've had experience creating sequenced tracks on a computer or not, you'll be amazed how incredibly fast and easy it is to produce professional-quality MIDI/audio recordings with the UW500 Personal Studio. Take a look and see just how fast and easy can it be!
Create a new song
With all software properly installed and running (including the S-YXG50 SoftSynthesizer), create a new song in XGworks lite and select "Create Style Block" from the Edit menu.
Choose a music style
Select the desired music style - in this case, an R&B pattern - and the desired sections (Intro, Main, Fill In, etc.). Here, we'll create a 12-bar blues, with the Main pattern running for 11 measures and a Fill In kicking in on Bar 12.
Enter the chords
Next, select Create Chords from the Edit menu and type in the desired chords - here, a simple blues progression in the key of A. (A for four measures, then two measures
Generate the MIDI backing
Select the entire range of the created style and call up Convert to MIDI Track from the Edit menu. This automatically creates several MIDI backing tracks (drums, bass, and rhythm guitar), which play back from the S-YXG50 SoftSynthesizer.
As long as you have space on your hard disk and plenty of processing power in your computer, you can record and simultaneously play back up to 100 tracks of MIDI and audio! And don't forget you can use the TWE Wave Editor to tweak and transform your audio tracks.
Record your guitar and voice
Now, add your own parts. Connect a guitar to the UW500 (through your favorite stomp box effect!), and while listening to a loop of the MIDI backing tracks, record your guitar playing to an empty
