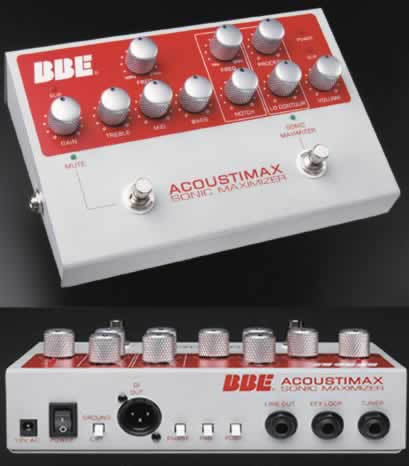

BBE ACOUSTIMAX Instrument Preamp

In the four years since BBE last offered its award-winning 386 acoustic preamp, BBE's design and engineering team studied the serious acoustic player's needs for both recording and sound reinforcement. The result is Acoustimax, a foot-pedal-style (or "stomp-box-style") acoustic preamp which raises the bar for amplified acoustic instrument sound quality. Acoustimax is packed with features including three band, recording-console quality eq with a sweepable mid -range band, low frequency notch filter, phase reversal, ground lift, line level out, dedicated tuner out and TRS effects loop, even a pre/post switchable-balanced DI output with pad. Other features include hard-wire bypass, non-slip rubber bottom and the included 12v power supply.

FEATURES:
* Frequency Response: 50Hz - 20kHz
* Treble: +/-12dB @ 10kHz
* Mid: +/-12dB @ 400Hz - 2.5kHz
* Bass: +/-12dB @ 60Hz
* Notch: 0 to -12dB @ 70Hz - 250kHz
* BBE: Lo Contour +15dB @ 50Hz
* Process: +15dB @ 10kHz
* Noise: Instrument Jack -98dBv (unity gain)
* Line Out: -88dBv (+10dB gain)
* Max Output: +10dBu @ Instrument Jack
* THD: 0.05% at 1kHz
* Impedances: Input 2.2 MEG Ohm
* Tuner Out: 2K Ohm
* Line Out: 1K Ohm
* Instrument Out: 2K Ohm
* XLR Out: 600 Ohm
* Power Requirements: DC inlet +12VAC min. 200ma
