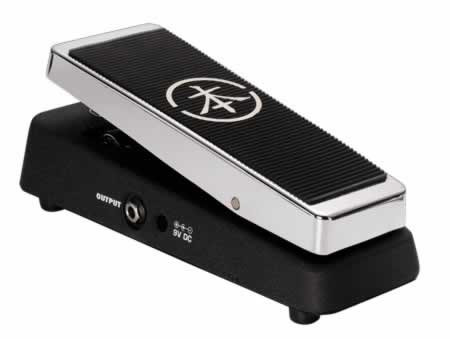

The Wah was based on a 1967 Class A circuit design that featured the unique Halo inductor. BBE has re-engineered and custom-tuned the Halo inductor and potentiometer to re-create the expressive tones made famous by players like Eric Clapton, Jimi Hendrix and Stevie Ray Vaughn.
In addition the Wah has a "Harmony" control to help fine tune the Wah's Q/peak response and hand-wired all components for the ultimate in vintage authenticity.
Applications:• Basses • Guitars • Keyboards
Features:• 1967 Class A circuit design Wah• Re-engineered "Halo" inductor• Custom-tuned potentiometer • Harmony control (adjusts Q) • : inputs and outputs • True hard-wire bypass • 9V battery, AC adaptor included (North America only)
Specifications:• Input Impedance: 120K Ohms • Output Impedance: 22K Ohm • Bypass: True Hardwire • Power Requirements: DC inlet: 9VDC (- Tip) Battery Life: 200 hours • Dimensions: 4.5"(W) x 10"(D) x 3"(H)• Shipping Weight: 3.75 lbs.
