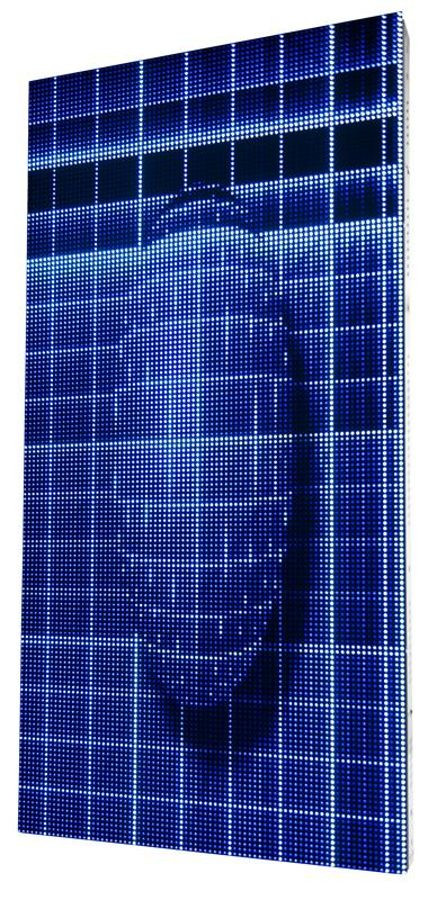

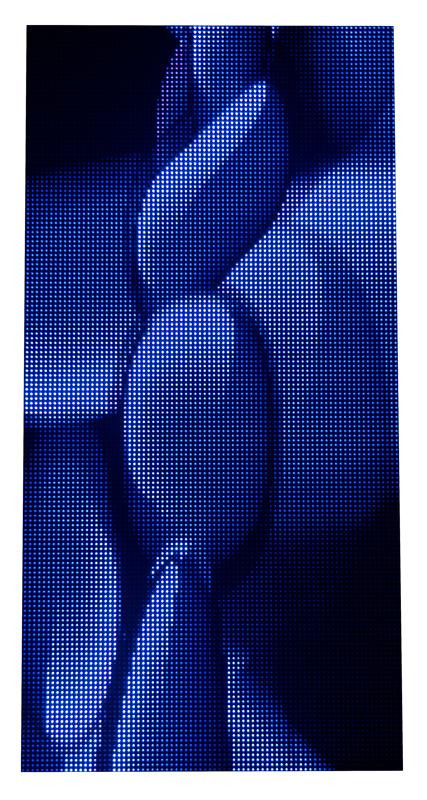

C6 is a video screen panel designed specifically for permanent indoor installation. It has 12,800 tri-color SMD 3528 LEDs, a 6.25 millimeter pixel pitch, and a 140 viewing angle for clear, crisp, and powerful images. It's quiet, fanless operation makes it perfect for houses of worship. The four M12 threaded holes in the corners mount the panel securely to permanent structures. C6 also works with the existing PVP' Rig Kit for attachment to truss structures and is fully compatible with the VIP' Driver, VIP' Signal Distributor, VIP' 5162 Signal Processor, and VIP' Media Server Pro.
• 6.25 mm pixel pitch LED video panel offering superb contrast through black face SMD 3528 LEDs
• 1000 mm x 500 mm panel size for the installation market
• Lightweight and modular installation system designed for fast installation
• Fanless design ensures silent operation
• Works with the VIP' Driver, VIP' Signal Distributor, and VIP' Media Server Pro
• Using the PVP' Rig Kit, you can hang 10 panels tall, for a total height of 10 meters of video wall
• Can also be installed using the M12 threaded inserts installed on all of the 4 corners of the wall
Specifications• Control Protocol: LINSN
• Data Connectors: Neutrik etherCON (2)
• Light Source: 12,800 LEDs (tri-color RGB) SMD 3528, 50,000 hours life expectancy
• Color Wavelength: red (620 to 625 nm), green (524 to 529 nm), blue (467 to 470 nm)
• Pixels: 80 x 160
• Pixel Pitch: 6.25 mm
• Pixel Density: 25,600/m2
• Viewing Angle: 140
• Display Refresh Rate: 1,080 Hz
• Transparency: 0%
• Illuminance: 1,500 NITS
• IP Rating: IP40, indoor use
• Cable Length (signal extension): 2.3 ft (0.7 m)
• Cable Length (power): 6 ft (1.83 m)
• Cable Length (power extension): 2.3 ft (0.7 m)
• Power Connection: Edison plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Power Linking: 12 units @ 120 V; 21 units @ 208 V; 22 units @ 230 V
• Maximum Panels/VIP' Driver: 102
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 128 W, 1.06 A @ 120 V, 60 Hz
• Power and Current: 131 W, 0.63 A @ 208 V, 60 Hz
• Power and Current: 133 W, 0.60 A @ 230 V, 50 Hz
• Weight: 23 lb (10.4 kg)
• Dimensions: 39.4 x 19.7 x 2.5 in (1,000 x 500 x 63 mm)
• Housing Material: Aluminum alloy
• Compatible Mounting Options: PVP' Rig Kit (truss mounting), or M10 Bolt/Clamp (rear mounting)
• Accessories (required): VIP' Driver
• Accessories (optional): VIP' Signal Distributor, VIP' Media Server Pro, VIP' 5162 Signal Processors
• Approvals: CE
