Chauvet Professional COLORDASH BATTEN LED Bank System (Open Box)

chauvet professional cd-batten *open box
chauvet professional cd-batten *open box Chauvet Professional COLORDASH BATTEN LED Bank System (Open Box) Chauvet Professional COLORDASH BATTEN LED Bank System (Open Box) Chauvet Professional COLORDASH BATTEN LED Bank System (Open Box) Chauvet Professional COLORDASH BATTEN LED Bank System (Open Box) Chauvet Professional COLORDASH BATTEN LED Bank System (Open Box) Chauvet Professional COLORDASH BATTEN LED Bank System (Open Box)
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Dropships Currently Out of Stock at Planet DJ
In Stock May Be Available on Amazon
In Stock Free Shipping On Most Orders Over $35
Buy on Amazon

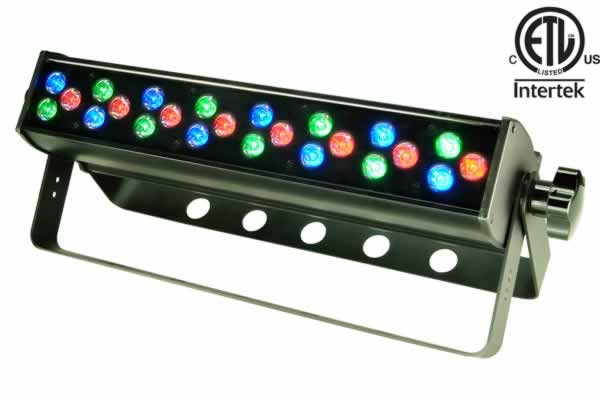

The COLORdash' Batten is a compact liner LED wash tailor made for washing applications where space is limited. Fitted with 24 high-power LEDs, the COLORdash' Batten makes for a perfect wall wash or accent light. Brackets are included to attach units in a linear array or stacked for different effects.



FEATURES:
• 3, 4, 10, or 12-channel RGB LED linear wash light
• Operating modes
3-channel: RGB control
4-channel: RGB, dimmer
10-channel: RGB, ID, dim, macro, strobe, auto / custom, module select
12-channel: RGB of 4 separate sections
• RGB color mixing with or without DMX controller
• Built-in automated programs via master/slave, DMX or COLOR-CON
• Program and recall custom programs via master/slave, DMX or COLOR-CON
• Adjustable fan speeds
• High power, 1 W (350 mA) LEDs
• Additional threaded hole on rear for mounting (size M 10)
• Additional (IEC) power output: max 10 units @ 120 V (see manual for details)
• Attach multiple units together with the included bracket
• Includes 6.6 ft (2 m) power extension cable
• LCD display with password protection
• Transfer custom programs between fixtures
• Double-bracket yoke doubles as floor stand

OPTIONS:
• COLORado Controller (COLOR-CON)
• Optical systems: 15 (CL20X15), 30 (installed)
• 33 ft (10 m) power extension cable (EXT-2)

SPECIFICATIONS:
• Installed Optics: 30
• Beam angle: 29.5
• Field angle: 55.4
• Lux: 357 @ 2 m
• Optional optics: 15
• Beam angle: 14
• Field angle: 29
• Lux: 1,729 @ 2 m
• Light source: 24 x 1 W LEDs, 50,000hrs (8 x 350 mA red, 8 x 350 mA green, 8 x 350 mA blue)
• Power and current: 120 V, 60 Hz; 84 W, 0.7 A (operating)
• Power and current: 230 V, 50 Hz; 92 W, 0.4 A (operating)
• AC power: Auto-ranging 100 V 240 V 50/60 Hz
• IEC power cable with plug: 60 in (1,524 mm)
• IEC power Linking cable: 82 in (2,083 mm)
• Weight: 7.9 lbs / 3.6 kg
• Size: 3.1 x 17.5 x 7.4 in / 80 x 444 x 188 mm

Additional Information

UPCN/A
SKUCD-BATTEN *OPEN BOX
ManufacturerChauvet Professional
Price$329.99
Product ConditionOpen Box
