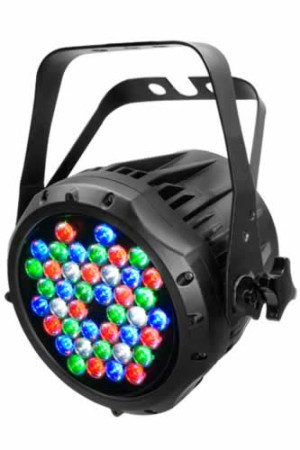

FEATURES INCLUDE:• 3, 4, 5, 6, or 11-channel RGBW LED wash light
• Operating modes
3-channel: RGB control
3-channel: HSV control
4-channel: RGB, master dimmer
4-channel: RGBW
5-channel: RGBW, master dimmer
6-channel: RGBW, master dimmer, strobe
11-channel: RGBW, ID addressing, dimmer, strobe, macro, auto/custom, dimmer curve, auto speed
• RGBW color mixing with or without DMX control
• Color temperature presets (3,200 10,000 K)
• Built-in automated programs via master/slave, DMX
• Recall custom programs via master/slave or DMX
• Five distinct dimming curves
• Ingress Protection: IP66
• 3-pin DMX input and output connectors
• Additional power output: max 12 units @ 120 V
• LED display with password protection
• Gel frame holder (4 mm max thickness)
• Double-bracket yoke doubles as floor stand
• Color Calibration
OPTIONS• Optical systems: 30 (CLENS3042)
• 16.4 ft (5 m) power extension cable (IP5POWER)
• 16.4 ft (5 m) signal extension cable (IP5SIG)
SPECIFICATIONS:• Installed optics: 15
Beam angle: 13
Field angle: 27
Lux: 664 @ 5 m
• Optional optics: 30
Beam angle: 32.6
Field angle: 59.9
Lux: 123 @ 5 m
• Light source: 42 (1 W) LEDs, 50,000 hrs: 12 red (350 mA),12 green (350 mA), 12 blue (350 mA), 6 white (350 mA)
• Power and current: 120 V, 60 Hz; 70 W, 0.58 A (operating), 0.2 A (inrush)
230 V, 50 Hz; 70 W, 0.31 A (operating), 0.4 A (inrush)
• AC power: Auto-ranging 100 240 V 50/60 Hz
• Power cable with plug: 65 in (1,651 mm)
• IP66 power extension cable: 103 in (2,604 mm)
• IP66 signal extension cable: 103 in (2,604 mm)
• DMX input cable: 6.5 in (165 mm)
• DMX output cable: 6.5 in (165 mm)
• Weight: 10.6 lbs (4.8 kg)
• Size: 8 x 9.6 x 9.6 in (205 x 245 x 245 mm)
