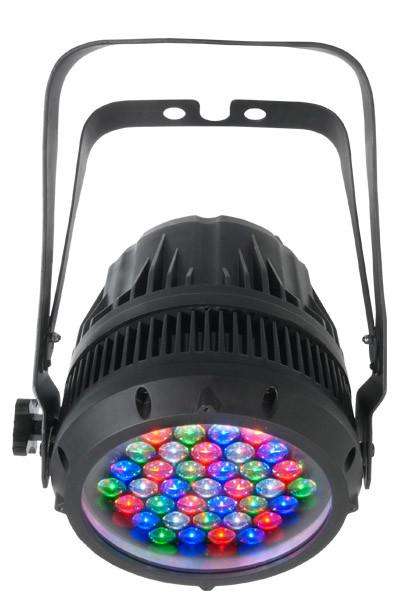

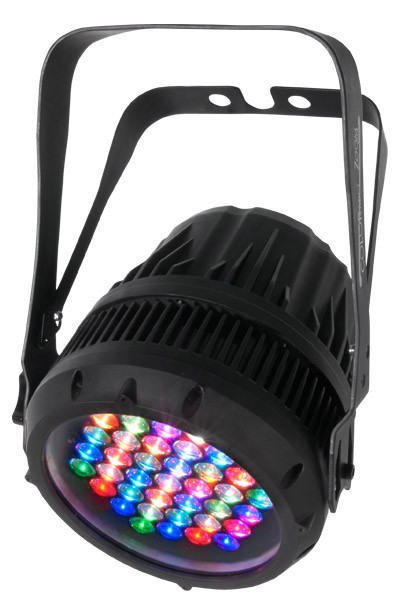

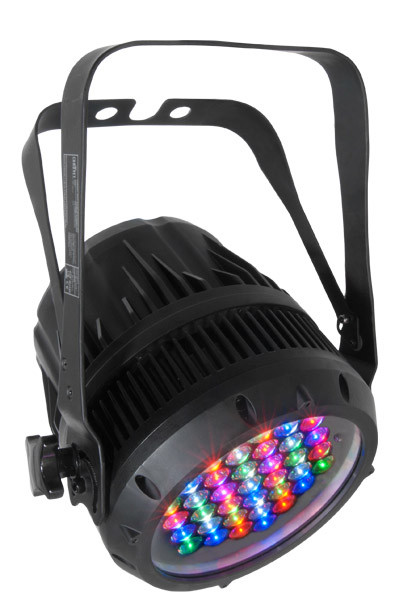

Chauvet Professional COLORado Zoom Tour RGBW LED Wash Light

• DMX channels: 3, 4, 5, 6 or 12
• Operating modes:
3-channel: Red, Green, Blue (ARC 1)
3-channel: Hue, Saturation, Value (HSV)
4-channel: Dimmer, Red, Green, Blue (ARC 1+D)
4-channel: Red, Green, Blue, White (ARC 2)
5-channel: Dimmer, Red, Green, Blue, White (ARC 2+D)
6-channel: Dimmer, Red, Green, Blue, White, Strobe (ARC 2+S)
12-channel: Dimmer, Red, Green, Blue, White, Color Macro, Strobe, Auto Programs, Auto Speed Adjust, Dimmer Speed, Zoom, Zoom Reset (TOUR)
• RGBW color mixing and zoom control with or without DMX control
• Color temperature presets (3,200 10,000 K)
• 8- 27.5 zoom control with or without DMX control
• Built-in automated programs via master/slave or DMX
• Recall custom programs via master/slave or DMX
• Five distinct dimming curves
• RGBW LEDs
• Electronic dimmer
• Color macros with speed adjustment included
• Electronic power supply

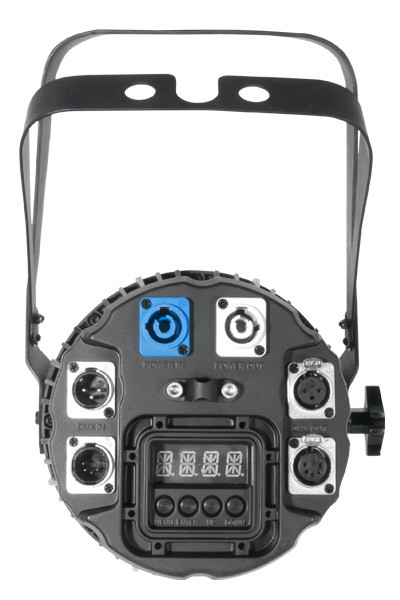

• NEUTRIK powerCON power input and output connector
• 3-pin and 5-pin DMX input and output connectors
• LED display with password protection
• Gel frame holder (4 mm max thickness)
• Double-bracket yoke doubles as floor stand
• Color Calibration
• Flicker free operation for HD Video

Specifications

• DMX connectors: 3-pin & 5-pin
• Source: 37 (2 and 3 W) LEDs, 50,000 hours
• Configuration: 10 Red (.664 A x 2.294 VDC = 1.52 W)
10 Green (.952 A x 3.380 VDC = 3.21 W)
10 Blue (.944 A x 3.351 VDC = 3.16 W)
7 White (.964 A x 3.239 VDC = 3.12 W)
• Beam angle: 8 27.5
• Field angle: 8 30
• Lux: 3,171 (8) - 310 (27.5) @ 5 m
• Cable length: 5 ft (1.5 m)
• Power linking: 7 units @ 120 V / 12 units @ 208 V / 14 units @ 230 V
• AC Voltage Range: 100240 V, 50/60 Hz (auto-ranging)
• Power Consumption 120 V, 60 Hz: 130 W, 1.01 A (operating)
• Power Consumption 208 V, 60 Hz: 124 W, 0.637 A (operating)
• Power Consumption 230 V, 50 Hz: 120 W, 0.55 A (operating)
• Dimensions: 7.9 x 9.8 x 13.1 in (203 x 250 x 334 mm)
• Weight: 10.6 lbs (4.8 kg)
• Certification: CE, MET
• Environment: IP20, dry location
• Cabling: NEUTRIK powerCON extension (18 in, 5/10/25 ft)
