Chauvet Professional COLORdash Batten-Quad 6

chauvet professional colordashbattenquad6
chauvet professional colordashbattenquad6 Chauvet Professional COLORdash Batten-Quad 6 Chauvet Professional COLORdash Batten-Quad 6 Chauvet Professional COLORdash Batten-Quad 6 Chauvet Professional COLORdash Batten-Quad 6 Chauvet Professional COLORdash Batten-Quad 6
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Dropships Usually ships direct to you from Chauvet Professional in 1-2 business days
Free Shipping FREE Shipping
$269.99
VIP Price:

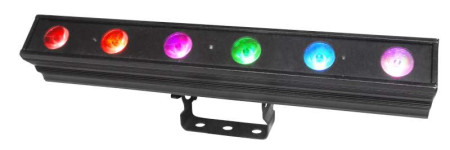

COLORdash' Batten Quad-6 is a linear wash fixture with six quad-colored RGBA LEDs outputting any variation of white, as well as richly saturated colors, thanks to the inclusion of amber LEDs. It maintains an even pixel pitch when used in multiples, either stacked in an array using the optional CBB6 bracket or lined up end-to-end. Setup is greatly eased by a hanging bracket, floor trunnions, 3- and 5-pin DMX connectors, locking IEC power input, and power linking.

• DMX channels: 4, 6, 10, 24 or 28-channel
• Operating modes
4-channel: RGBA
6-channel: dimmer, RGBA, strobe
10-channel: dimmer, RGBA, strobe, macro, auto, auto speed, dim mode
24-channel: R1, G1, B1, A1, R2, G2, B2, A2, R3, G3, B3, A3, R4, G4, B4, A4, R5, G5, B5, A5, R6, G6, B6, A6
28-channel: R1, G1, B1, A1, R2, G2, B2, A2, R3, G3, B3, A3, R4, G4, B4, A4, R5, G5, B5, A5, R6, G6, B6, A6, auto, auto speed, dimmer, strobe
• Silent flicker free operation
• Individual pixel control
• Maintain pixel pitch end to end or stacking
• 16 bit dimming with selectable dimming curves
• All metal construction for added durability

Specifications

• DMX connectors: 3-pin & 5-pin
• Source: 6 (5 W) quad-color LEDs, 50,000 hours
• Light source: red (499mA x 2.13vdc = 1.06W)
Green (480mA x 3.26vdc = 1.56W)
Blue (468mA x 3.03vdc = 1.42W)
Amber (500mA x 2.37vdc = 1.19W)
• Beam angle: 17
• Field angle: 33
• Illuminance: 390.7 lux @ 5 m
• Power linking: 17 units @ 120 V / 30 units @ 208 V/ 33 units @ 230 V
• Input voltage: auto-ranging 100-240 VAC 50/60 Hz
• Power and current: 90 W, 0.76 A @ 120 V 60 Hz
• Power and current: 94 W, 0.45 A @ 208 V 50 Hz
• Power and current: 96 W, 0.41 A @ 230 V 50 Hz
• Weight: 5 lbs (2.3 kg)
• Size: 22 x 2.6 x 6.5 in (560 x 65 x 164 mm)
• Approvals: CE

Additional Information

UPC781462209612
SKUCOLORDASHBATTENQUAD6
ManufacturerChauvet Professional
Price$269.99
Product ConditionNew
