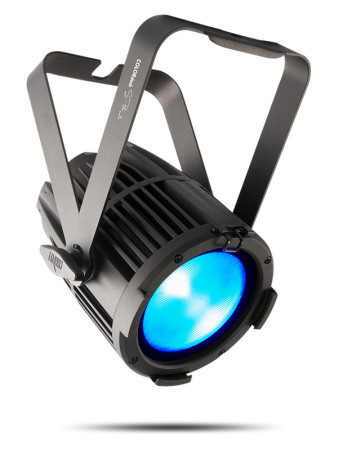

FEATURES: • RGBA LED wash for events where indoor/outdoor flexibility is needed
• Completely homogenized wash with superior color mixing
• All environment operation with IP rated power and DMX connections
• Color temperature presets from warm white to daylight
• Color temperature presets from warm white to daylight
• OLED display with password protection and touchscreen interface
• Double-bracket yoke doubles as floor stand
Specifications Optical
• Light Source: 27 LEDs (6 red, 7 green, 6 blue, 8 amber) 3 to 4 W, (950 mA), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10000 K
• Color Temperature (at full): 6259 K
• Beam Angle: 22
• Field Angle: 42
• Illuminance (total): 377 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000Hz, 25,000 Hz
Dynamic Effects
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 25 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes
Construction / Physical
• Dimensions: 12.32 x 9.09 x 8.38 in (313 x 231 x 213 mm)
• Weight: 9 lb (4.1 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 6.25 in (159 mm)
Connections
• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
Control
• Protocol(s): DMX, RDM
• DMX Channels: 5, 6 or 11
• Modes/Personalities: 3 personalities (5, 6, 11)
Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 24 units @ 120 V; 40 units @ 208 V; 45 units @ 230 V
• Power and Current: 66 W, 0.551 A @ 120 V, 60 Hz
• Power and Current: 64 W, 0.336 A @ 208 V, 60 Hz
• Power and Current: 65 W, 0.301 A @ 230 V, 50 Hz
Certifications / Qualifications
• CE, MET
• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
What's Included
• COLORdash S-Par 1
• Seetronic Powerkon IP65 power cord
• Gel frame (6.25 in/159 mm accessories)
Optional Accessories
• Professional Clamps: CTC-50HC, CTC-50HCN
• 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
