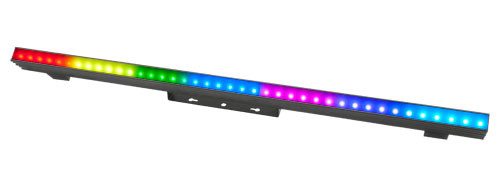

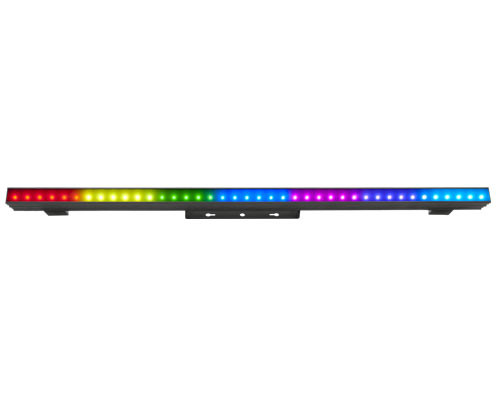

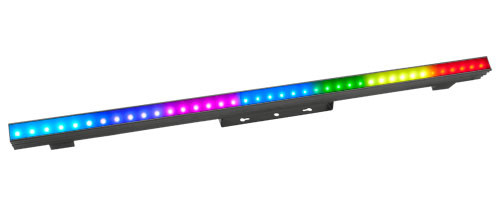

PIX' Strip is a 1-pixel wide strip light, designed for video and pixel mapping applications with countless layout options. Its 40 SMD LEDs receive power and real-time data directly from the PIX' Drive 640 via an RJ45 connection. PIX' Drive 640 can automatically configure up to 16 units for rapidly composing a large pixel-mapping video system. PowerCON in/out facilitates connections.
VIDEO
• Controlled via Arkaos Kling-Net which provides fast and easy assignment and control
• A video/pixel mapping system that doesn't require years of experience or technical know-how to design, set-up or operate
• Does NOT require piles of processing, driver and signal distribution equipment to create large scale displays
• Independent system of strip style fixtures that can be used for video and pixel mapping applications with countless layout options
• Receives power and data via an RJ45 connection from the PIX' Drive 640
• Tri-color SMD LEDs covered by a smooth diffuser plate gives excellent color rendering and wide viewing angles
Specifications • Source: Tri-color 5050 SMD LEDs
• Pixels/Strip: 40 Pixels
• Pixel Pitch 25 mm
• Display Refresh Rate: 400 Hz
• Video Refresh Rate: 60 fps
• Viewing Angle: 120
• Luminance: 850 NIT
• Input Voltage: 24 VDC (by PIX Drive 640)
• Power Linking: 4 EPIX Strips per Drive 640 output (4 available)
• Size: 1.4 x 39.3 x 4.1 in (36 x 997 x 104 mm)
• Weight: 5.5 lbs (2.5 kg)

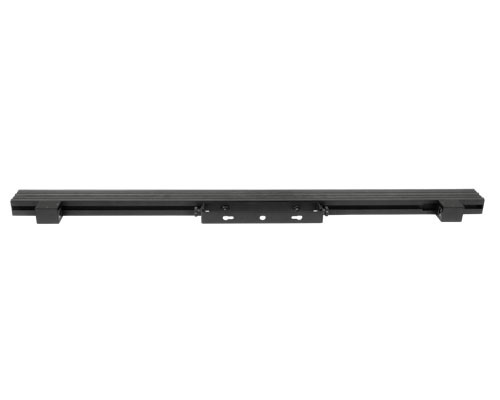

• Mounting Design: Mounting Bracket
• Housing Material: Steel
• Power Connection: RJ45 (power+control)
• IP20, dry location
