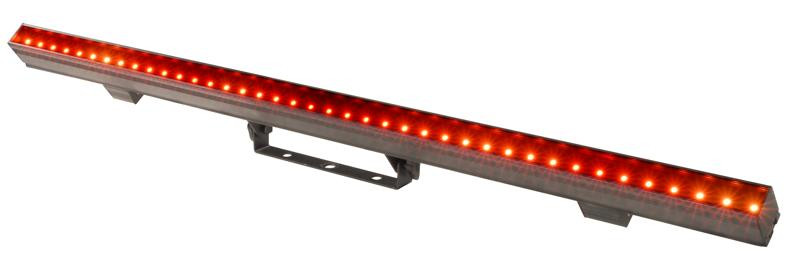

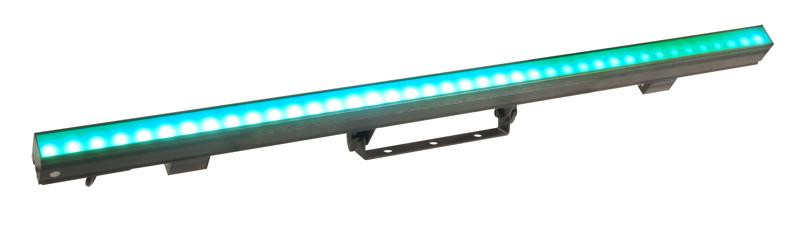

PIX' Strip 2.0 is a pixel mapping, one-meter strip that sets up in minutes with minimal technical know-how. Each strip houses 40 tri-colored SMD 5050 LEDs, and has a pixel pitch of 25 millimeters and 120-degree viewing angle. With multiple control optionsindustry standard Art-Net and Arkaos Kling-netpixel mapping displays are achieved in minutes. Works seamlessly with PIX' Bar 2.0 and uses EPIX' Drive 642 for data and power distribution.
• Near-effortless pixel mapping and video one-meter strips, that combine to make a system that sets up in minutes with minimal technical know-how
• Easily control each using Art-Net' (3.0 compliant) or Arkaos Kling-Net
• Quickly configure these slim, one-meter strips and link up to four inline with RJ45 cables or create vertical effects with new hardware linking system
• Achieve wide viewing angles and excellent color rendering with tri-colored SMD 5050 LEDs covered by a smooth diffuser plate
• Easily manage configuration and software updates with the network-based remote web server
• Works with ArKaos Media Master Express for a plug-n-play system which requires little training to operate
• EPIX' Drive 642 is required for operation
Specifications• Control Protocol: Art-Net', Kling-Net
• Art-Net' Channels: 120
• Data Connectors: 2 Ethernet (RJ45)
• Light Source: 40 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
• Pixels: 40 x 1
• Pixel Pitch: 25 mm
• Viewing Angle: 120
• Illuminance (clear filter): 1,174 NITS
• Illuminance (frosted filter): 828 NITS
• IP Rating: IP40, indoor use
• Power and Current: 20 W, 0.11 A @ 120 V, 60 Hz
• Power and Current: 33 W, 0.04 A @ 208 V, 60 Hz
• Power and Current: 39 W, 0.03 A @ 230 V, 50 Hz
• Weight: 4.4 lb (2 kg)
• Dimensions: 39.4 x 1.4 x 4.6 in (1000 x 37 x 118 mm)
• Housing Material: Aluminum alloy
• Physical Linking: 4 inline EPIX' Strip 2.0
• Controller (required): EPIX' Drive 642
• Approvals: CE, MET
