Chauvet Professional EPIX Tile 2.0 SMD LED Pixel Array

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

chauvet professional epixtile20
chauvet professional epixtile20 Chauvet Professional EPIX Tile 2.0 SMD LED Pixel Array
Images may show accessories or configurations not packaged with this item.

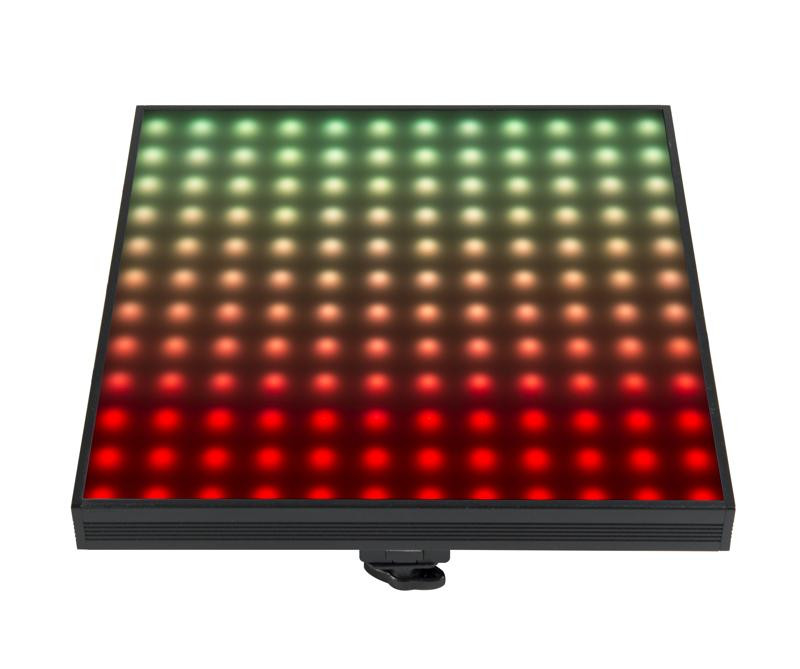

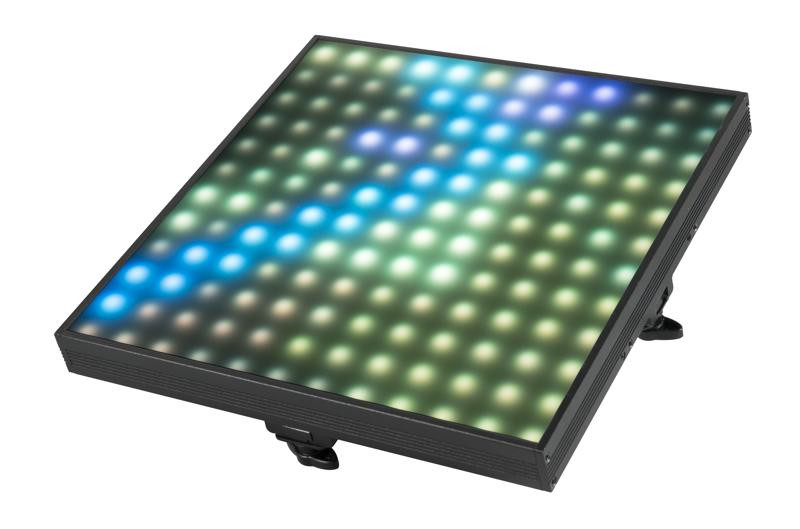

PIX' TILE 2.0 is a 12-inch square tile of 144 tri-color SMD 5050 LEDs, in a 12 x 12 pixel array. The PIX' Tile 2.0 has a 25-millimeter pixel pitch with a 120 viewing angle and can be set up and configured in minutes with little technical expertise. The integrated, interlocking, and load bearing hardware easily supports the PIX' Tiles in a number of suspended and ground supported combinations. The PIX' Tile 2.0 uses the PIX' Drive 642 for power and data, and can be combined seamlessly with all other PIX' 2.0 products using the interlocking hardware.

• Near-effortless pixel mapping and video 12 x 12 pixel panel, that combines with the pix' Bar 2.0 and pix' Strip 2.0 to make a system that sets up in minutes with minimal technical know-how
• Easily control each using Art-Net' (3.0 compliant) or ArKaos Kling-Net
• Quickly configure these slim, rectangular tiles with new hardware linking system
• Achieve wide viewing angles and excellent color rendering with tri-color SMD 5050 LEDs covered by a smooth diffuser plate
• Easily manage configuration and software updates with the network-based remote web server
• Works with ArKaos MediaMaster for a plug-n-play system that requires little training to operate
• PIX' Drive 642 is required for operation

• Control Protocol: Art-Net', Kling-Net
• Art-Net Channels: 432
• Data Connectors: 1 Ethernet (RJ45)
• Light Source: 144 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
• Pixels: 12 x 12
• Pixel Pitch: 25 mm
• Viewing Angle: 120
• Illuminance (clear filter): 3,290 NITS
• Illuminance (frosted filter): 2,900 NITS
• IP Rating: IP20, dry location
• Power and Current: 51 W, 0.36 A @ 120 V, 60 Hz
• Power and Current: 57 W, 0.21 A @ 208 V, 60 Hz
• Power and Current: 63 W, 0.18 A @ 230 V, 50 Hz
• Weight: 5.6 lb (2.5 kg)
• Dimensions: 11.8 x 11.8 x 4.6 in (300 x 300 x 117 mm)
• Housing Material: Aluminum alloy
• Controller (required): PIX' Drive 642
• Approvals: CE, MET

Additional Information

ManufacturerChauvet Professional
Product ConditionNew - On Clearance
