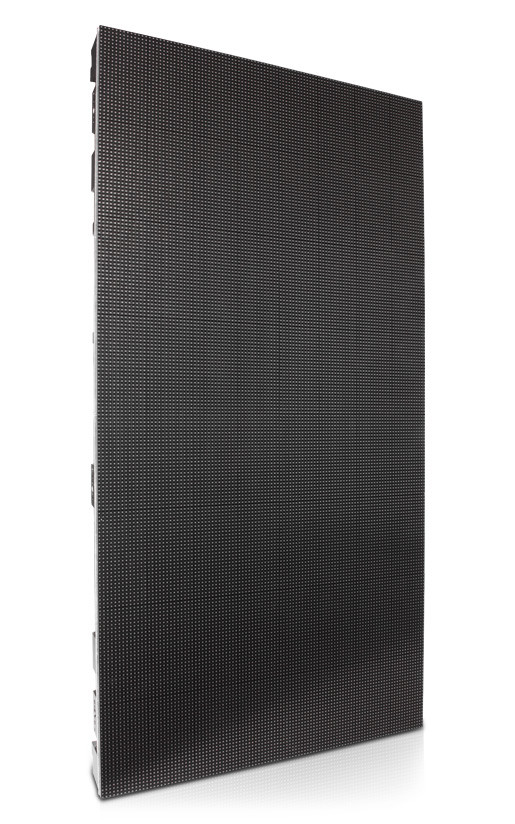

The F4 4-Pack includs (4) F4 Video Panels, 1 Neutrik powerCON power cord, (4) Neutrik powerCON power linking cords, and (4) Neutrik etherCON signal linking cords. Chauvet Professional's F4 is a 1 m x 0.5 m LED video panel equally suited for installations and rentals. It runs on the Novastar control protocol and is fully front & rear serviceable with easily accessed magnetic LED modules. The panels may be mounted directly on a flat wall due to the front-service option.
VIDEO
Chauvet Professional F4 Features • 4.8 mm pitch video panel works with the VIP Drive 43Nova, using the Novastar control protocol
• Black body LEDs produce optimal black levels and high contrast video quality
• 1000 x 500 mm magnesium die-cast housing makes this product among the lightest in its class

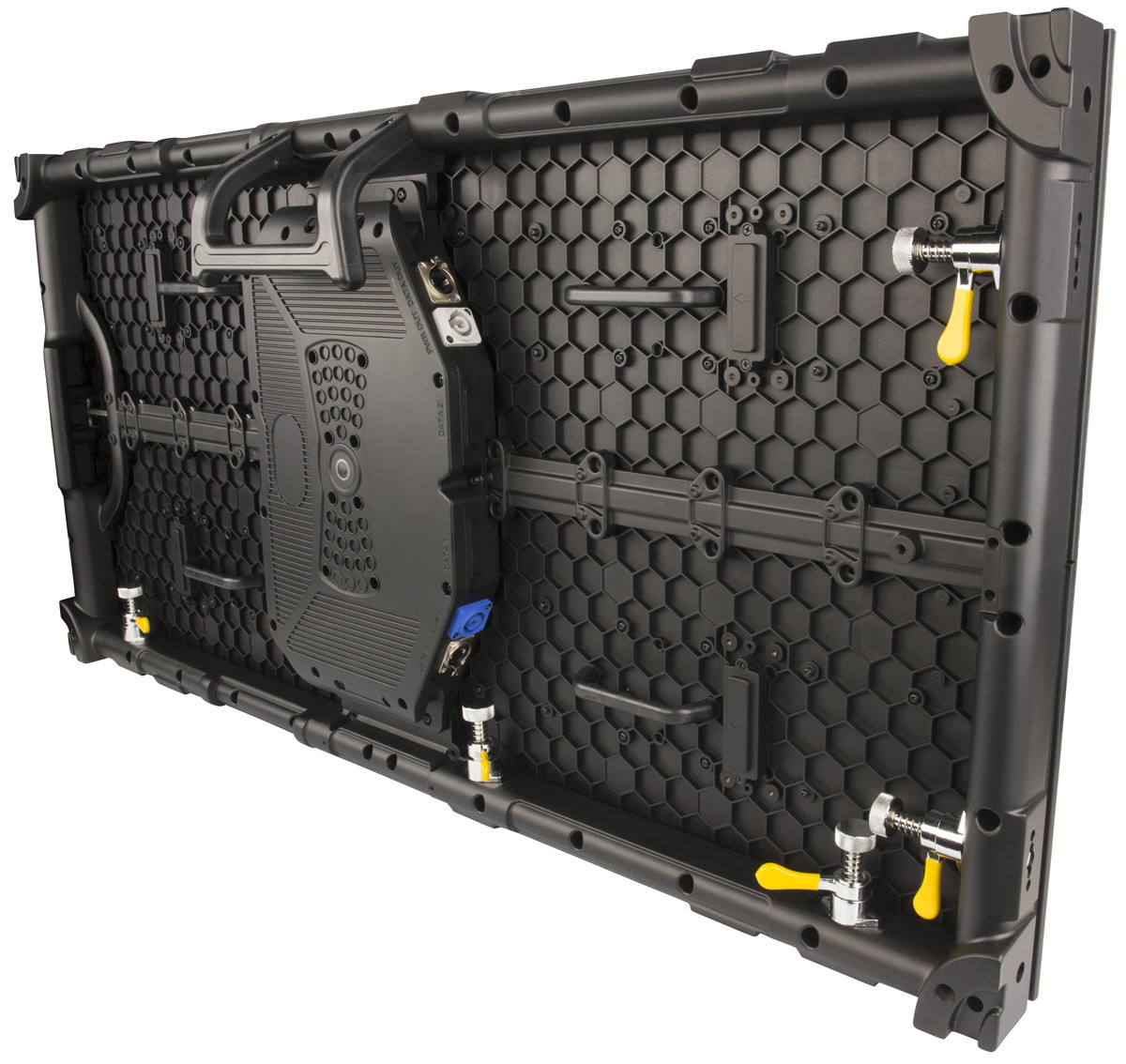

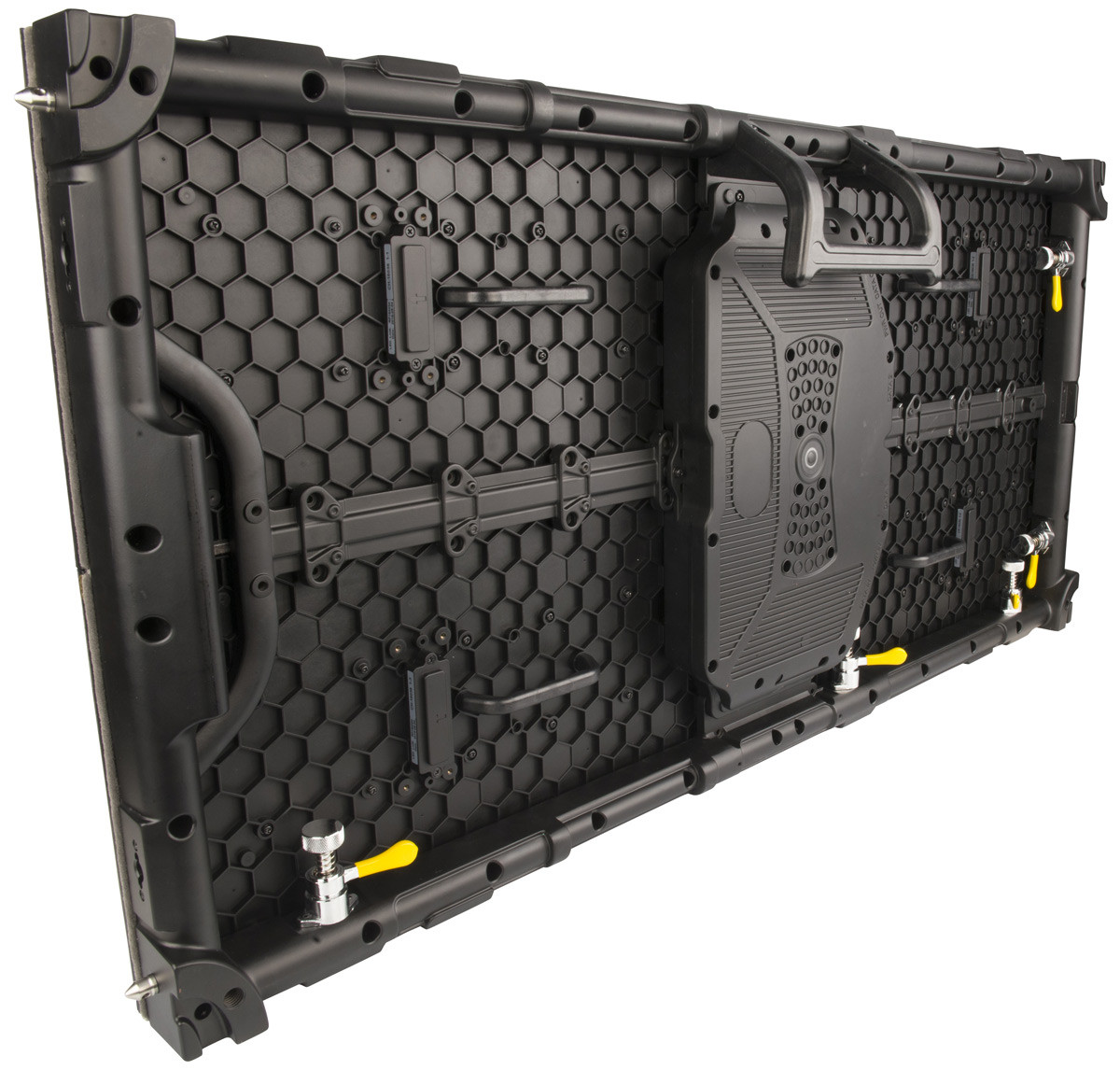

• Optimized for fully front & rear service for the LED modules and control box

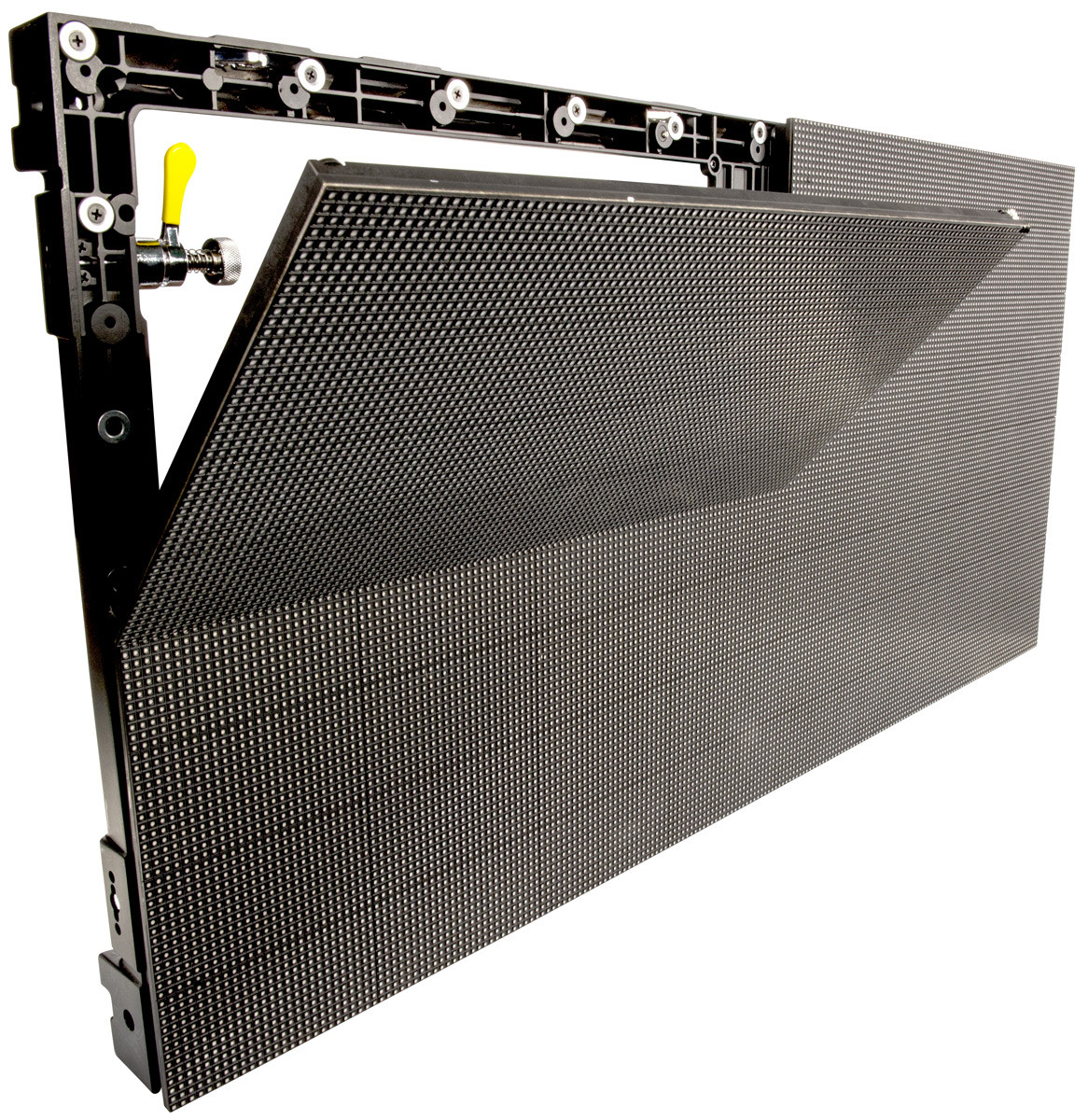

• Magnetic LED modules make service fast and easy
• Magnetic housing assists in hanging panels
Optical • Light Source: 21,632 LEDs (tri-color RGB) SMD 2828, 50,000 hours life expectancy
• Color Wavelength: red (619 to 624 nm), green (522 to 525 nm), blue (468 to 471 nm)
• Viewing Angle: 140
• Illuminance: 1,500 NITS
• Pixels: 104 x 208
• Pixel Pitch: 4.8 mm
• Minimum Viewing Distance: 13 ft (4 m)
• Pixel Density: 43,264/m2
• Display Refresh Rate: 3,840 Hz
Construction • Dimensions: 19.69 x 1.89 x 39.37 in (500 x 48 x 1000 mm)
• Weight: 28.4 lb (12.88 kg)
• Exterior Color: Black
• Housing Material: Magnesium die-cast
• Maximum vertical hang: 16 panels
• Maximum horizontal hang: 22 panels
• Transparency: 0%

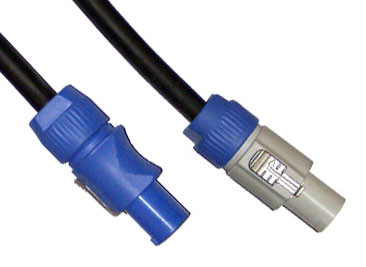

Connections • Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON

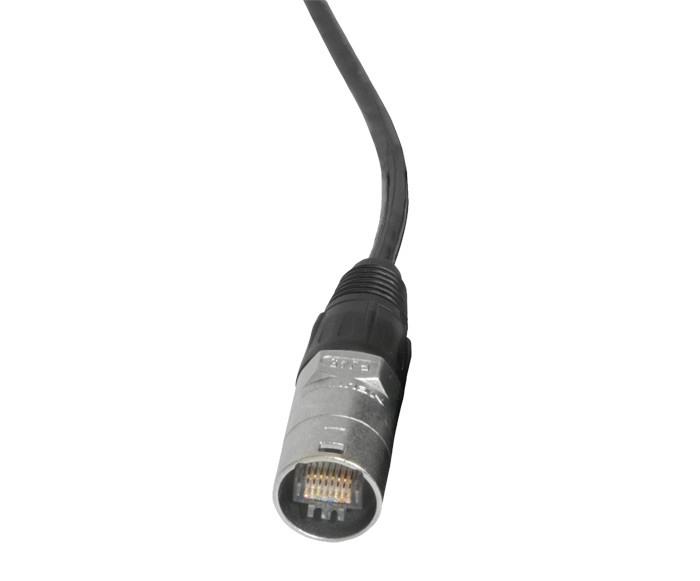

• Data Connectors: Neutrik etherCON
• Cable Length (signal extension): 4 ft (1.2 m)
• Cable Length (power): 6 ft (1.8 m)
• Cable Length (power extension): 6 ft (1.8 m)
Control • Control Protocol: Novastar
• Maximum Panels/VIP Drive 43Nova: 120 (Video products only)
• Maximum Supported LEDs (per driver): 2,621,440 (Video products only)
• Video Input (compatible): 60 Hz
Electrical • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
• Power and Current: 257 W, 2.05 A @ 120 V, 60 Hz
• Power and Current: 249 W, 1.27 A @ 208 V, 60 Hz
• Power and Current: 248 W, 1.19 A @ 230 V, 50 Hz
• CE, MET, IP Rating: IP30 (indoor use)
