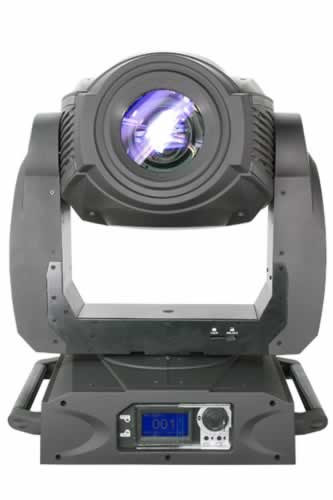

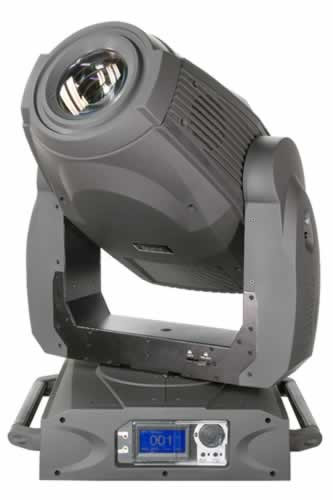

The Legend' 1200E Spot features a state-of-the-art 1,200-watt FastFit lamp and CMY color mixing. The unit includes two gobo wheels, both fitted with six glass slot-n-lock gobos. It has an electronic ballast and power supply.
FEATURES INCLUDE:• 23 or 31-channel fully electronic 1,200-watt moving yoke spotPan: 540 Tilt: 270 • Color wheel: 7 colors + white Split/linear colors Rainbow color spin at variable speed• Gobo wheel 1: Indexed, rotating gobo wheel with gobo shake 6 glass, slot-n-lock gobos + open 2 multicolor, 4 black / white Gobo wheel spin at variable speed 16-bit gobo rotation• Gobo wheel 2: Indexed, rotating gobo wheel with gobo shake 6 glass, slot-n-lock gobos + open 1 multicolor, 5 black / white Gobo wheel spin at variable speed 16-bit gobo rotation• Variable frost• Variable CTC filter (3,200K 6,000 K)• CMY color mixing system with vector speed adjustments3-facet, 5-facet, 3D, and infinite prism with macros• Variable shutter• Variable iris• Variable focus• Variable 16-bit dimming (0 100%)• Linear zoom (15 30)• Individual reset of pan/tilt, color, gobo, shutter, prism, focus• Move-in-black for pan/tilt, color, gobo• Remote fixture reset, lamp on/off, and vector speed adjustments• Built-in movement macros with range adjustments• Built-in color macros• 3-pin and 5-pin DMX connections• Two additional free glass gobos• User-configurable lamp ignition delay • User-configurable maintenance reminder • Electronic ballast with power factor correction• Electronic power supply • Automatic pan & tilt correction• Pan and tilt locks • Lamp & fixture use timers• Power saver modeSPECIFICATIONS:• All gobos: 37.3 mm outside, 30 mm image, 5 mm max thickness• Beam Angle: 15 30• Lux: 84,000 @ 2 m, 30 zoom• Light source: Philips MSR Gold 1200SA/SE FastFit' 6,000 K, 750 hrs Osram HTI 1500 W/60/P50 Lok-It' 6,000 K, 750 hrs GE CSR 1200/SA/TAL 5,800 K, 750 hrs • Power and current: 208 V, 60 Hz; 1,641 W, 7.89 A (operating), 3.4 A (inrush), PF 0.93 230 V, 50 Hz; 1,645 W, 7.15 A (operating), 3.3 A (inrush), PF 0.98• AC power: Auto-ranging 200 240 V, 50/60 Hz• Weight: 82.05 lbs / 37.22 kg• Size: 20.5 x 21.2 x 30.1 in / 521 x 539 x 764 mm
