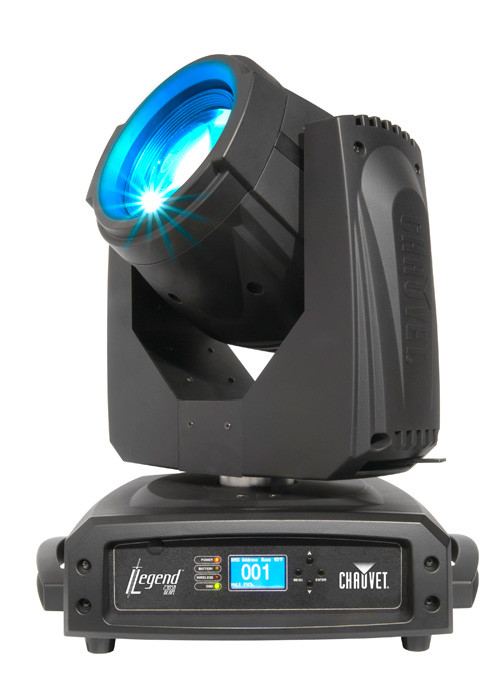

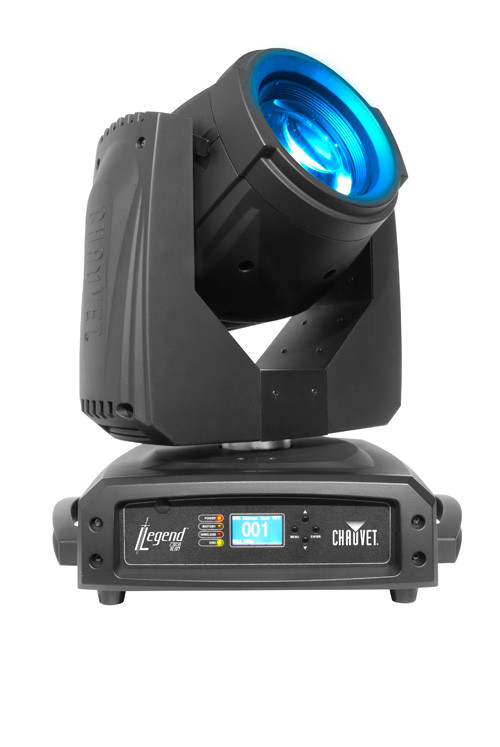

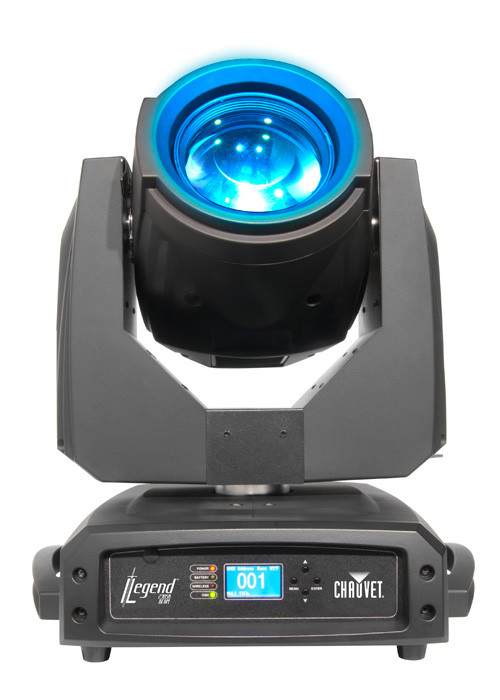

Legend' 230SR Beam features a 230-watt Osram Sirius lamp outputting an intense 96,000 lux at 15 meters, thanks to precision glass optics and a tiny 2.25-degree beam angle. Compact and agile, it also features a zooming 8-facet prism and 17 gobos (plus open) for beam shaping effects, along with automated focus. In addition to 14 solid colors plus white, the color wheel is delivers seamless split colors.
• Compact moving yoke beam fixture with a zoomable prism and motorized focus
• Uses Osram Sirius 230W Lamp source with a rated 3,000 hour lamp life
• Precision designed optics for hard edged beam effects
• Extremely quiet for operation in any situation
• Fast and precise pan and tilt movement
• Color wheel: 14 colors + Open - CTO - Split/linear colors - Rainbow color spin at variable speed
• Gobo wheel: 17 gobos + Open - Gobo wheel spin at variable speed
• Variable frost
• 8 facet rotating prism with zoom for stunning effects
• Lightweight and easy to hang
• DMX channels: 15 or 18
• Reset over DMX
• Electronic power supply
• Mechanical Dimmer
Specifications• DMX connectors: 3-pin & 5-pin
• Pan & tilt: 540 / 270
• Light source: Osram Sirius 230W Lamp (3,000 hour lamp life)
• Beam angle: 2.25
• Lux: 96,000 @ 15m
• Input voltage: auto-ranging 100-240 VAC 50/60 Hz
• Power and current: 415 W, 3.43 A @ 120 V 60 Hz (operating)
• Power and current: 385 W, 1.75 A @ 230 V 50 Hz (operating)
• Dimensions: 13.52 x 16.34 x 19.59 in (343.4 x 415 x 497.5mm)
• Weight: 41.3 lbs (18.73 kg)
• Hard Wired Power Cable
• Control Connection: 3-pin & 5-pin DMX
• Environment: IP20, dry location
• Approvals: CE, MET
