Chauvet Professional LEGEND300E BEAM Moving Yoke Beam

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

chauvet professional legend300b
chauvet professional legend300b Chauvet Professional LEGEND300E BEAM Moving Yoke Beam Chauvet Professional LEGEND300E BEAM Moving Yoke Beam Chauvet Professional LEGEND300E BEAM Moving Yoke Beam Chauvet Professional LEGEND300E BEAM Moving Yoke Beam Chauvet Professional LEGEND300E BEAM Moving Yoke Beam Chauvet Professional LEGEND300E BEAM Moving Yoke Beam Chauvet Professional LEGEND300E BEAM Moving Yoke Beam

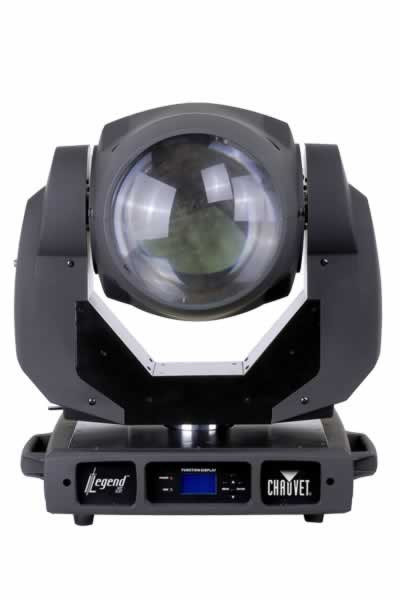

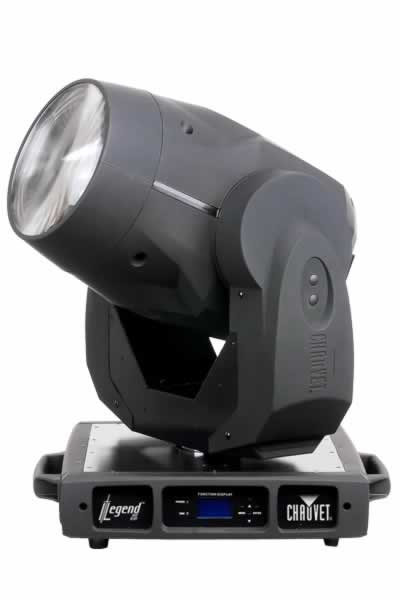

The Legend' 300E Beam moving yoke beam fixture features CMY color mixing to produce a vivid beam of light. The Chauvet Legend 300E BEAM is powered by a Philips MiniFastFit lamp. The fixture offers fast and precise pan of 540 and tilt of 270. A gobo wheel with seven slot-n-lock gobos provides further beam shaping.

FEATURES:
• 17 or 25-channel compact, fully electronic, 300-watt moving yoke beam
• Pan: 540
• Tilt: 270
• Color wheel: 7 colors + white
Split/linear colors
Rainbow color spin at variable speed
• Gobo wheel: Indexed, rotating gobo wheel with gobo shake
7 metal, slot-n-lock gobos + open
Gobo wheel spin at variable speed
16-bit gobo rotation
• Variable frost
• CTC filters (5,600 K and 3,200 K)
• CMY color mixing system with vector speed adjustments
• 3-facet rotating prism
• Variable shutter
• Variable 16-bit dimming (0100%)
• Individual reset of pan/tilt, color, gobo, shutter, prism
• Move-in-black for pan/tilt, color, gobo
• Remote fixture reset, lamp on/off and vector speed adjustments
• Built-in movement macros with range adjustments
• Built-in color macros
• 3-pin and 5-pin DMX connections
• User-configurable lamp ignition delay
• User-configurable maintenance reminder
• Electronic ballast with power factor correction
• Electronic power supply
• Automatic pan & tilt correction
• Pan & tilt locks
• Lamp & fixture use timers
• Power saver mode
• Battery powered display



SPECIFICATIONS:
• All Gobos: 26.83 mm outside, 23.29 mm image, 4.32 mm max thickness
• Beam Angle: 7.6
• Lux: 142,500 @ 5 m
• Light source: Philips MSR Gold 300/2 MiniFastFit', 750 hrs
• Power and current: 120 V, 60 Hz; 458 W, 3.94 A (operating), 3.0 A (inrush), PF 0.99
230 V, 50 Hz; 428 W, 2.02 A (operating), 2.3 A (inrush), PF 0.95
• AC power: Auto-ranging 120240 V, 50/60 Hz
• Weight: 43.60 lbs / 19.78 kg
• Size: 14.5 x 17.9 x 23.7 in / 370 x 456 x 601 mm

Additional Information

UPC781462204020
SKULEGEND300B
ManufacturerChauvet Professional
Product ConditionNew - On Clearance
ReturnableNo
