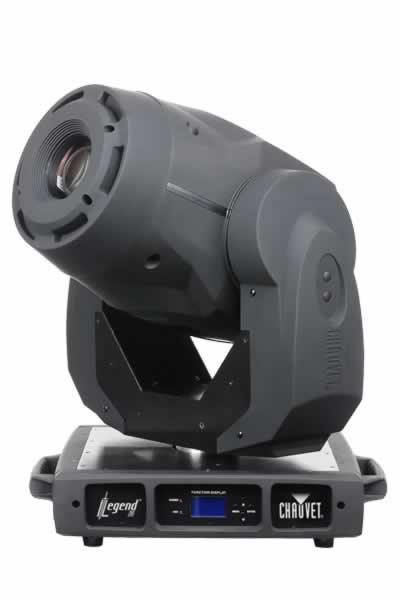

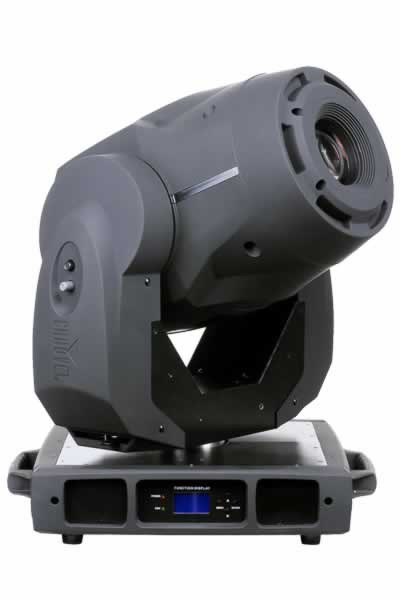

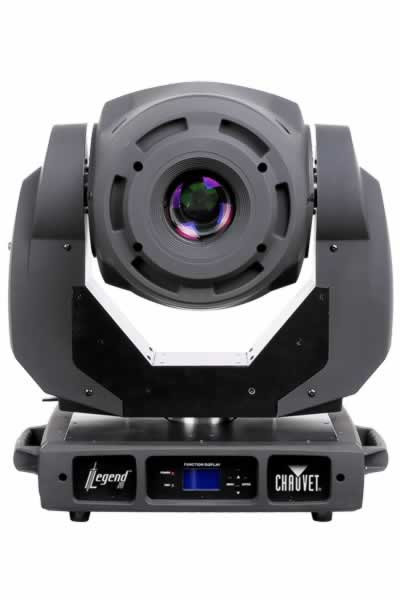

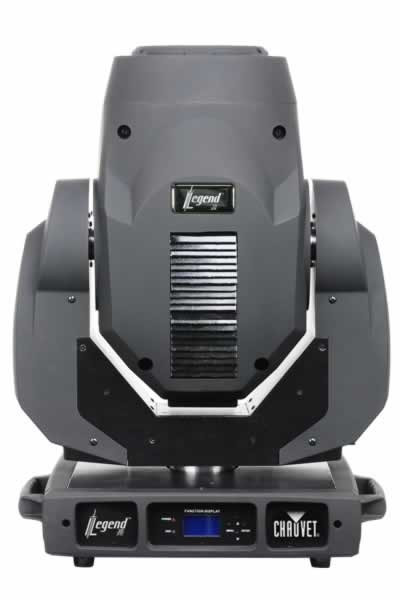

FEATURES: • 21 or 29-channel compact, fully electronic, 300-watt moving yoke spot
• Pan: 540
• Tilt: 270
• Color wheel: 7 colors + white
Split/linear colors
Rainbow color spin at variable speed
• Gobo wheel 1: Indexed, rotating gobo wheel with gobo shake
7 glass, slot-n-lock gobos + open
1 multicolor, 6 black / white
Gobo wheel spin at variable speed
16-bit gobo rotation
• Gobo wheel 2: Indexed gobo wheel
8 metal gobos + open
Gobo wheel spin at variable speed
• Static frost
• CTC filters (5,600 K and 3,200 K)
• CMY color mixing system with vector speed adjustments
• 3-facet rotating prism
• Variable shutter
• Variable iris
• Variable focus
• Variable 16-bit dimming (0 100%)
• Linear zoom (16 35)
• Individual reset of pan/tilt, color, gobo, shutter, prism, focus
• Move-in-black for pan/tilt, color, gobo
• Remote fixture reset, lamp on/off and vector control speed adjustments
• Built-in movement macros with range adjustments
• Built-in color macros
• Battery powered display
• 3-pin and 5-pin DMX connections
• Two additional free gobos
• User-configurable lamp ignition delay
• User-configurable maintenance reminder
• Electronic ballast with power factor correction
• Electronic power supply
• Automatic pan & tilt correction
• Pan & tilt locks
• Lamp & fixture use timers
• Power saver mode
VIDEO
SPECIFICATIONS: • Gobo wheel 1: 26.83 mm outside, 23.29 mm image, 4.32 mm max thickness
• Gobo wheel 2: 31.42 mm outside, 23.04 mm image, 0.80 mm max thickness
• Beam Angle: (16 35)
• Lux: 12,200 @ 5 m, 16 zoom
2,800 @ 5 m, 35 zoom
• Light source: MSR Gold 300/2 MiniFastFit' 8,400 K, 750 hrs
• Power and current: 120 V, 60 Hz; 477 W, 4.12 A (operating), 3.1 A (inrush), PF 0.99
230 V, 50 Hz; 468 W, 2.17 A (operating), 1.6 A (inrush), PF 0.95
• AC power: Auto-ranging 100 240 V, 50/60 Hz
• Weight: 47.50 lbs / 21.55 kg
• Size: 14.5 x 17.9 x 23.7 in / 370 x 456 x 602 mm
